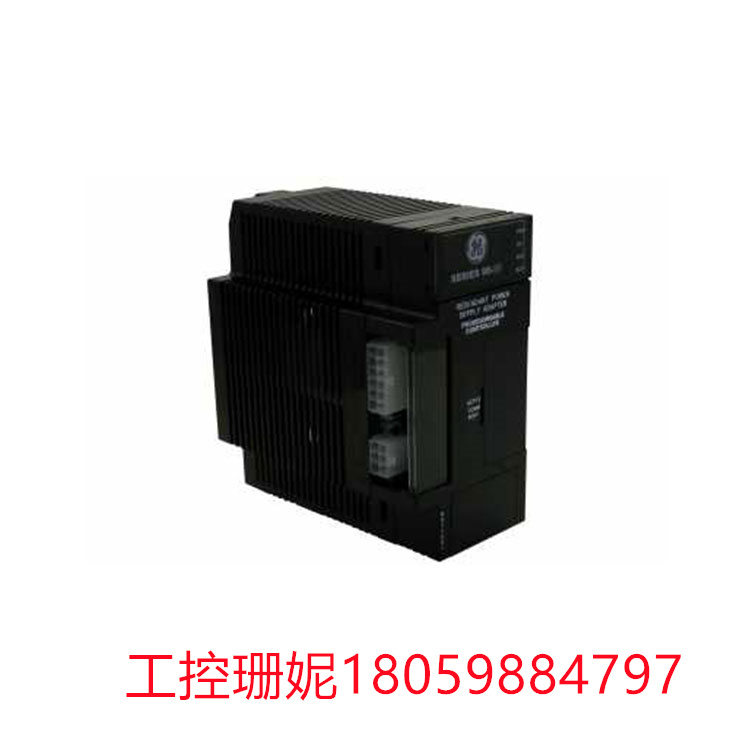

IC693ACC350 冗余电源适配器模块

【功能描述】

GE发那科公司生产的IC693ACC350适配器模块是一款冗余电源适配器模块。RPS (redundant power supply)适配器用于替换扩展底座或CPU底座上的电源，并连接到冗余电源底座上。IC693ACC350冗余电源适配器与普通的IC693电源一样安装在IC693设备底板的左槽位上。这款RPS适配器具有许多物理特性，包括模块LED状态指示灯，串行端口连接器和带备用电池的RAM。这些特性与标准可编程逻辑控制器(PLC)电源具有相同的功能。备用电池和串行端口连接器不能在安装在RPS底板上的任何电源上工作。这个RPS适配器上唯一的LED是“PWR”LED。

GE Fanuc IC693ACC350 RPS适配器的连接器与RPS电源输出电缆底板上的连接器连接。该电缆在IC693ACC350适配器的末端分成2个连接器。此外，IC693ACC350 RPS适配器配有短接地线，允许用户在安装期间接地适配器。配置IC693ACC350 RPS适配器时，用户需要使用VersaPro 2.00或更新版本的软件。用户在配置时需要选择槽位的电源为IC693ACC350 RPS适配器模块，然后填写IC693ACC350模块的配置信息。此外，PLC的RAM备用电池应安装在IC693ACC350 RPS适配器上。

IC693ACC350 冗余电源适配器模块

The GE Fanuc IC693ACC350 adapter module is a redundant power adapter module. The redundant power supply (RPS) adapter is used to replace the power supply on the expansion base or CPU base and connect to the redundant power supply base. The IC693ACC350 redundant power adapter is installed in the left slot on the mainboard of the IC693 device, just like the regular IC693 power supply. This RPS adapter has a number of physical features, including module LED status indicators, serial port connectors, and RAM with spare batteries. These features have the same functionality as standard programmable logic controller (PLC) power supplies. The backup battery and serial port connectors will not work on any power supply installed on the RPS baseboard. The only LED on this RPS adapter is the "PWR" LED.

The connector of the GE Fanuc IC693ACC350 RPS adapter is connected to the connector on the RPS power output cable base plate. The cable is divided into 2 connectors at the end of the IC693ACC350 adapter. In addition, the IC693ACC350 RPS adapter comes with a short ground cable that allows the user to ground the adapter during installation. When configuring the IC693ACC350 RPS adapter, users need to use VersaPro 2.00 or later software. You need to select the IC693ACC350 RPS adapter as the power supply in the slot and fill in the configuration information about the IC693ACC350. In addition, the PLC's RAM backup battery should be installed on the IC693ACC350 RPS adapter.
