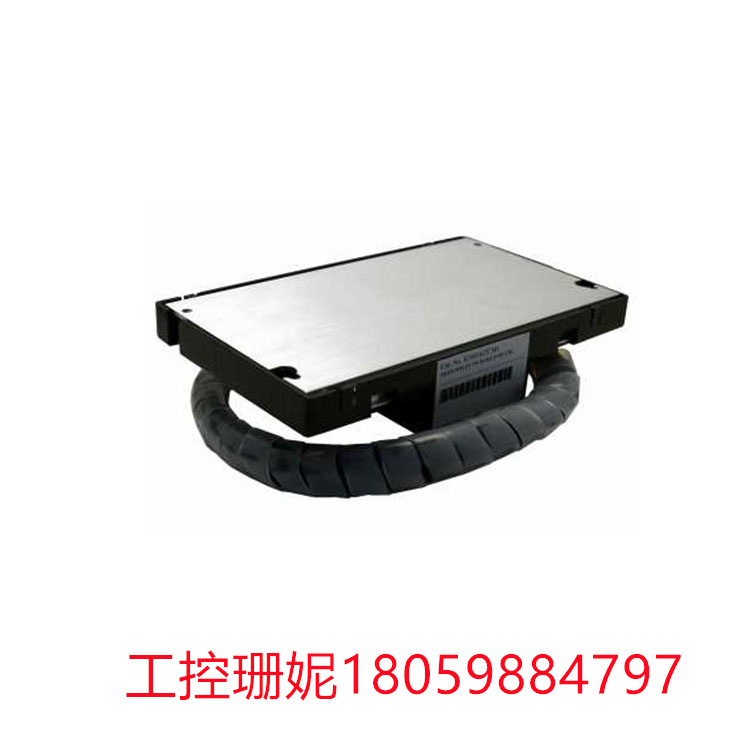

IC693ACC341 冗余电源(RPS)底板

【功能描述】

IC693ACC341底板是GE发那科公司生产的冗余电源(RPS)底板。IC693ACC341 RPS底板支持从主机架扩展到最多7个额外的IC697 PLC机架，最多15米(50英尺)的互连电缆。这个RPC底板占用一个插槽，它配备了2个连接器。一个连接器是将IC693ACC341 RPS底板连接到CPU或上游机架。另一个连接器允许雏菊链安排连接额外的扩展机架。安装GE Fanuc IC693ACC341 RPS底板时，请务必将总线接收模块安装在1号槽位。

GE发那科IC693ACC341 RPS底板配备了3个绿色led。这些led提供IC693ACC341模块的状态更新，以及最后一个机架中所需的I/O总线终端插头的存在，以及机架活动的状态。总线接收模块支持输出模块的最后状态操作，以防与CPU失去通信。此外，它还允许用户在机架中隔离和修复有缺陷的模块。在安装IC693ACC341 RPS底板时，用户必须像其他IC693 PLC底板一样将其接地。每根接地线必须是12awg或更大的线，在末端折叠一个环形端子。此外，用户必须将每根接地线的一端固定在安装板上合适的表面上。通常情况下，用户将需要确定在他们的系统中固定地线的理想位置，因为它可以变化。

IC693ACC341 冗余电源(RPS)底板

The IC693ACC341 mainboard is a redundant power supply (RPS) mainboard manufactured by GE Fanuc. The IC693ACC341 RPS baseplate supports expansion from the main frame to up to seven additional IC697 PLC racks with up to 15 m (50 ft) of interconnect cables. This RPC baseboard occupies one slot and it is equipped with 2 connectors. One connector is to connect the IC693ACC341 RPS baseboard to the CPU or upstream rack. Another connector allows Daisy chain arrangements to connect additional extension racks. When installing the GE Fanuc IC693ACC341 RPS baseplate, ensure that the bus receiving module is installed in slot 1.

The GE Fanuc IC693ACC341 RPS baseboard is equipped with three green leds. These leds provide status updates of the IC693ACC341 module, as well as the presence of the required I/O bus terminal plug in the last rack, and the status of the rack activity. The bus receiving module supports the final state operation of the output module in case communication with the CPU is lost. In addition, it allows users to isolate and repair defective modules in the rack. When installing the IC693ACC341 RPS baseboard, the user must ground it like any other IC693 PLC baseboard. Each ground wire must be 12awg or larger wire with a ring terminal folded at the end. In addition, the user must secure one end of each ground wire to a suitable surface on the mounting plate. Typically, users will need to determine the ideal location to fix the ground wire in their system, as it can vary.
