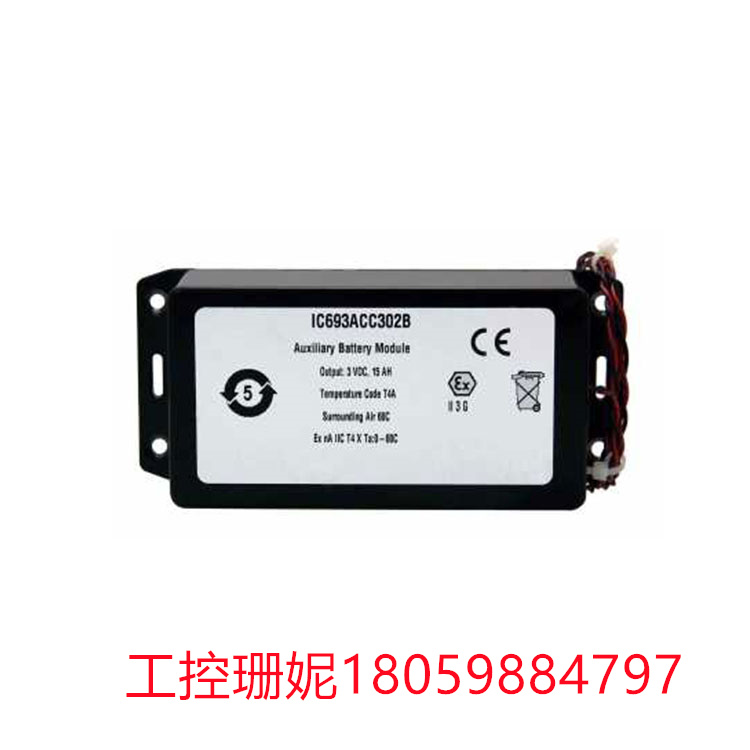

IC693ACC302B 由黑色阻燃ABS塑料制成

IC693ACC302辅助电池组配有1安培保险丝，以防止短路或电压过载。IC693ACC302电池适用于产品代码为IC693和IC697的电源和cpu。电池组外壳由黑色ABS塑料制成，具有阻燃性。IC693ACC302电池连接到0.6米(2英寸)24 AWg红色和黑色引线。带2针母连接器的电线。电池的电流容量为每小时15安培，工作温度范围为0到60摄氏度(32到140华氏度)。电池安装在面板上，长145.1毫米(5.7英寸)，宽65毫米(2.5英寸)，高39.9毫米(1.5英寸)。

联系电话：18059884797

立即咨询在线留言

产品详情

IC693ACC302B 由黑色阻燃ABS塑料制成

【功能描述】

IC693ACC302是一种辅助电池组，主要用于为各种系列90-30，系列90-70甚至PACSystems控制器提供延长的内存保留时间。电池组的容量为15.0安培小时，当与IC693 CPU374控制器一起使用时，能够提供长达15个月的内存备份，当与311-364型号IC693 cpu和所有现有IC697 cpu一起使用时，能够提供75个月的内存备份。

通过维护CPU的内存，特别是随机存取存储器(RAM)，即使在电源周期，维护停机时间，甚至意外断电之后，它也可以继续运行，因为这个辅助备份电池内部通过提供必要的低电压水平为易失性存储器供电，并防止存储器内容被擦除。

IC693ACC302由黑色阻燃ABS塑料制成，配有2.0 '(0.6 m)扭曲的红/黑24 AWG引线，带2针母连接器，可将电池连接到模块。它的保质期为7年，理想的工作温度范围为0-60摄氏度。

为了符合环保要求，消耗的IC693ACC302需要安全处理。此外，为了识别电池组的制造信息，提供日期代码以供电池处置参考。任何超过保质期的未使用电池组必须立即处理。

这个电池是一个面板安装设备，需要安装到一个住房使用四个#8-32 x½“平头机器螺丝。本电池组必须参考电池连接器的位置进行安装，根据所选底板的不同，电池连接器的位置会有所不同。

对于大多数系统，IC693ACC302电池组可以提供长达75个月的备用电源，为控制复杂应用过程的工业系统提供必要的长期可靠性。

IC693ACC302B 由黑色阻燃ABS塑料制成

The IC693ACC302 is an auxiliary battery pack primarily used to provide extended memory retention time for various series 90-30, Series 90-70 and even PACSystems controllers. The battery pack has a capacity of 15.0 amp hours and is capable of providing up to 15 months of memory backup when used with the IC693 CPU374 controller, and 75 months of memory backup when used with the 311-364 model IC693 cpu and all existing IC697 cpus.

By maintaining the CPU's memory, especially the random access memory (RAM), it can continue to operate even after a power cycle, maintenance downtime, or even an unexpected power outage, as this auxiliary backup battery internally powers the volatile memory by providing the necessary low voltage level and prevents the memory contents from being erased.

The IC693ACC302 is made of black flame retardant ABS plastic and comes with a 2.0 '(0.6 m) twisted red/black 24 AWG lead with a female 2-pin connector that connects the battery to the module. It has a shelf life of 7 years and an ideal operating temperature range of 0-60 degrees Celsius.

In order to comply with environmental requirements, the IC693ACC302 consumed needs to be handled safely. In addition, in order to identify the manufacturing information of the battery pack, a date code is provided for battery disposal reference. Any unused battery pack past its shelf life must be disposed of immediately.

This battery is a panel mount device that needs to be mounted into a housing using four #8-32 x½ "flat head machine screws. This battery pack must be installed with reference to the location of the battery connector, which varies according to the baseplate selected.

For most systems, the IC693ACC302 battery pack can provide backup power for up to 75 months, providing the long-term reliability necessary for industrial systems that control complex application processes.

The IC693ACC302 auxiliary battery pack is equipped with a 1 amp fuse to prevent short circuits or voltage overload. The IC693ACC302 battery is suitable for power supplies and cpus with product codes IC693 and IC697. The battery pack housing is made of black ABS plastic, which is flame retardant. The IC693ACC302 battery is connected to a 0.6 m (2 in)24 AWg red and black lead. Wire with 2-pin female connector. The battery has a current capacity of 15 amps per hour and an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). The battery is mounted on the panel and measures 145.1 mm (5.7 in) long, 65 mm (2.5 in) wide and 39.9 mm (1.5 in) high.
