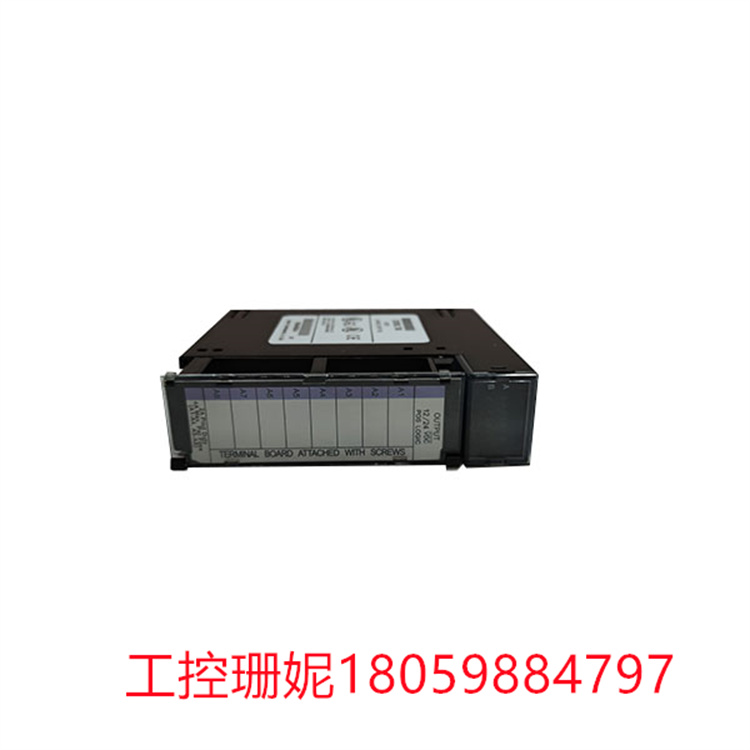

IC200ALG326H 13位模拟输出模块 GE发那科

IC200ALG326模块是一个13位模拟输出模块，由GE发那科自动化公司设计作为Versamax系列的输出模块。这个特定的模块包括不同的功能，如诊断工具和LED指示灯，简化日常操作流程。该模块提供的通道是模拟电流源输出，工作在4到20毫安之间。这些输出被安排在一个单独的组中，它们之间不需要隔离。GE Fanuc Automation IC200ALG326 13位模拟输出模块的背板电流消耗为每个输出5伏和50毫安，最大隔离电压为250伏交流连续电压。

联系电话：18059884797

立即咨询在线留言

产品详情

IC200ALG326H 13位模拟输出模块 GE发那科

【功能描述】

GE Fanuc Automation IC200ALG326 13位模拟输出模块的直流电压范围为18至30伏，额定电流消耗最大浪涌为2安培，无负载时最大电流消耗为100毫安，满量程运行时所有8个输出均为185毫安。GE Fanuc Automation IC200ALG326 13位模拟输出模块建议使用屏蔽线缆连接。根据模块安装的不同，它可以通过直接电缆屏蔽或使用插入端子连接。该模块支持热插拔功能，但需要严格执行热插拔操作，否则可能导致背板电源中断。该模块的编程由主CPU完成。建议使用跳线，以便在模块缺电时输出保持默认状态。

IC200ALG326H 13位模拟输出模块 GE发那科

The IC200ALG326 module is a 13-bit analog output module designed by GE Fanuc Automation as an output module for the Versamax family. This specific module includes different functions such as diagnostic tools and LED indicators to simplify the daily operation flow. The channel provided by the module is an analog current source output that operates between 4 and 20 mA. These outputs are arranged in a separate group and do not need to be isolated from each other. GE Fanuc Automation IC200ALG326 13-bit analog output modules have backplane current consumption of 5 volts and 50 mA per output, with a maximum isolation voltage of 250 volts AC continuous voltage.

The GE Fanuc Automation IC200ALG326 13-bit analog output module has a DC voltage range of 18 to 30 volts, a rated current consumption maximum surge of 2 amps, a maximum current consumption of 100 mA when unloaded, and 185 mA for all eight outputs at full scale operation. GE Fanuc Automation IC200ALG326 13-bit analog output module is recommended to be connected using shielded cables. Depending on the module installation, it can be shielded by direct cable or connected using insert terminals. The backplane supports hot swap. However, perform hot swap strictly. Otherwise, the power supply to the backplane may be interrupted. The programming of this module is done by the main CPU. It is recommended to use a jumper so that the output remains in the default state when the module is powered off.
