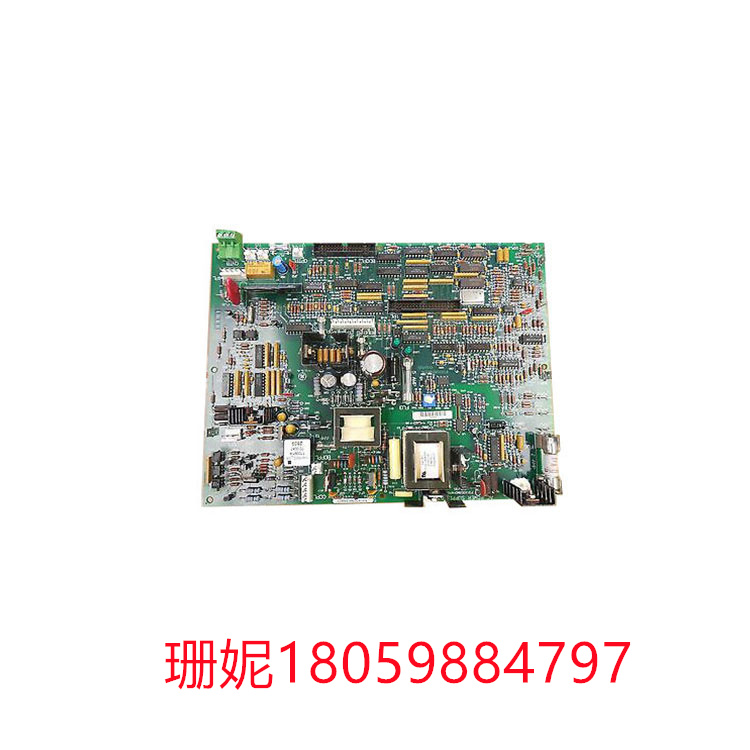

531X111PSHABG1 电机现场控制和电源板提供驱动运行所需的电源

当安装在驱动器中时，531X111PSHABG1卡作为电机现场控制和电源板。该设备最初是由通用电气为其531X系列替换板制造的。为该系列开发的卡片适用于安装到许多GE品牌驱动器或励磁器中。当电路板安装时，它提供驱动所需的必要电源。这个特定的单元是一个G1版本的板，与交流线移动安装到板本身。

531X111PSHABG1卡的主要功能是提供驱动运行所需的电源。从这张卡，驱动器可以绘制额定电压5 VDC, 15 VDC，和24 VDC。还为驱动器的电机场电路提供了一个使用板集成脉冲变压器的电源。该卡还具有许多板载选项，以增强用户体验。有三个继电器内置到板执行系统控制选项。五个跳线也可供用户调整和固定反馈和电流信号。电路板由三个电位器组成。这些允许用户根据需要校准和调整电流和电路反馈。

联系电话：18059884797

立即咨询在线留言

产品详情

531X111PSHABG1 电机现场控制和电源板提供驱动运行所需的电源

【功能描述】

在开始将电路板安装到驱动器之前，检查所有提供的安装参数。当满足这些导向时，设备的任何损坏或缺陷的风险都会降低。设备的完整性依赖于合格的人员被允许处理和安装这些卡片。531X111PSHABG1电源板的接线说明请参见系列手册和设备数据表。该板的技术支持最初由制造商通用电气提供。

531X111PSHABG1 电机现场控制和电源板提供驱动运行所需的电源

When installed in the drive, the 531X111PSHABG1 card acts as the motor field control and power board. The device was originally manufactured by General Electric for its 531X series replacement board. The cards developed for this series are suitable for installation into many GE branded drives or exciters. When the board is installed, it provides the necessary power needed to drive. This particular unit is a G1 version of the board, with an AC line moving to mount to the board itself.

The main function of the 531X111PSHABG1 card is to provide the power required for the operation of the drive. From this card, the drive can draw rated voltages of 5 VDC, 15 VDC, and 24 VDC. A power supply using a board-integrated pulse transformer is also provided for the driver's field circuit. The card also has many onboard options to enhance the user experience. There are three relays built into the board to perform system control options. Five jumpers also allow users to adjust and fix feedback and current signals. The circuit board consists of three potentiometers. These allow the user to calibrate and adjust the current and circuit feedback as needed.

Before starting to mount the board to the driver, check all provided installation parameters. When these guidelines are met, the risk of any damage or defect to the equipment is reduced. The integrity of the equipment depends on qualified personnel being allowed to process and install these cards. For details about how to connect cables to the 531X111PSHABG1 power module, see the series manuals and device data sheets. Technical support for the board was initially provided by manufacturer General Electric.
