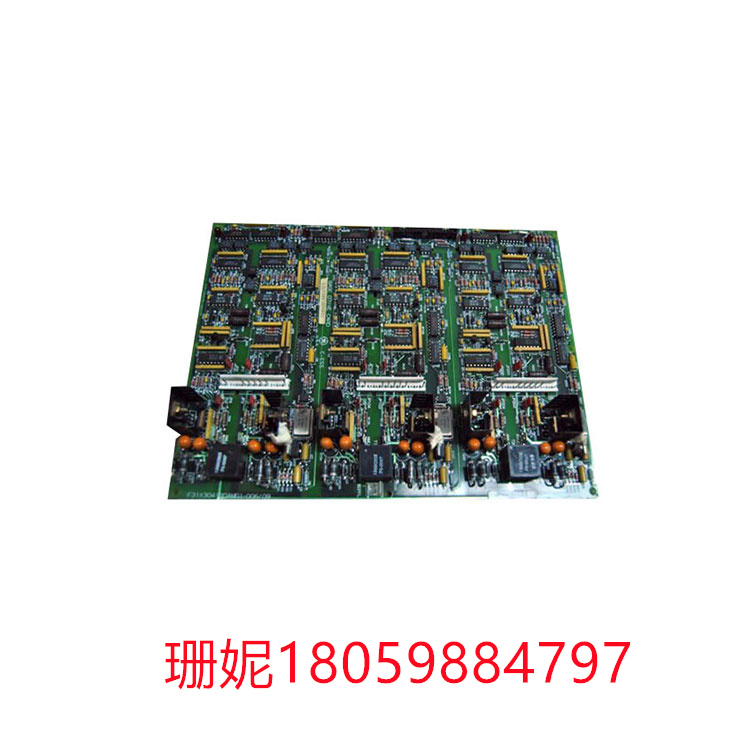

531X111PSHAAG2 电压供驱动器电机现场控制和电源板531X系列

531X111PSHAAG2能够产生三种不同的电压供驱动器使用。这些额定电源包括5 VDC, 15 VDC和24 VDC。集成在电路板上的脉冲变压器还为主机驱动器中的电机场电路提供所需的电源。系统校准和驱动控制选项可以执行此卡。系统控制选项可以使用三个板载继电器之一执行。继电器在卡上命名为K1，用于RUN, K2，用于MAX, K3，用于FAULT。电路板上还有五个跳线和三个电位器。跳线用于电流和反馈信号调整，而电位计用于电路和电流反馈校准。

联系电话：18059884797

立即咨询在线留言

产品详情

531X111PSHAAG2 电压供驱动器电机现场控制和电源板531X系列

【功能描述】

531X111PSHAAG2板是通用电气公司开发的用于电机现场控制和供电的板。由于它在531X系列中的位置，这张卡可以安装到GE品牌的许多旧型号驱动器中。驱动操作所需的电源由该卡提供。由于它是作为G2版本开发的，因此该板最适合安装在外部励磁器中。

在开始电路板安装之前，一定要检查通用电气提供的安装参数。设备保护依赖于只允许合格的用户处理和安装该卡。531X111PSHAAG2电源板的综合布线指南可在该板的手册和数据表中找到。该设备的制造商通用电气(General Electric)是该电路板最初的技术支持提供商。

531X111PSHAAG2 电压供驱动器电机现场控制和电源板531X系列

The 531X111PSHAAG2 board is a board developed by General Electric Company for field control and power supply of motors. Due to its location in the 531X series, this card can be installed into many older models of drives under the GE brand. The power required to drive operation is provided by the card. Since it was developed as a G2 version, the board is best suited to be installed in an external exciter.

The 531X111PSHAAG2 is capable of producing three different voltages for use by the driver. These power ratings include 5 VDC, 15 VDC and 24 VDC. The pulse transformer integrated on the board also provides the required power to the electrical field circuit in the host driver. System calibration and drive control options are available to perform this card. System control options can be performed using one of three onboard relays. The relays are named on the card as K1 for RUN, K2 for MAX, K3 for FAULT. There are also five jumpers and three potentiometers on the board. Jumpers are used for current and feedback signal adjustment, while potentiometers are used for circuit and current feedback calibration.

Be sure to check the installation parameters provided by GE before starting the board installation. Device protection relies on allowing only qualified users to process and install the card. The comprehensive cabling guide for the 531X111PSHAAG2 power supply board can be found in the manual and data sheet of the board. General Electric, the manufacturer of the device, was the original technical support provider for the board.
