489-P5-LO-A20 发电机管理继电器

【功能描述】

489-P5-LO-A20技术规格

数字输入489传感器供应24 VDC在20 mA最大

断路器差动元件脱扣

地面定向定时精度±100ms

负序过流时间延迟0.1至100.0秒，步长0.1

中性电压输入转换范围0.005至1.00 ×满量程

过流报警定时精度占总时间的±0.5%

相位差分拾取电平1.01至1.50 ×额定V在步骤0.01

产品描述

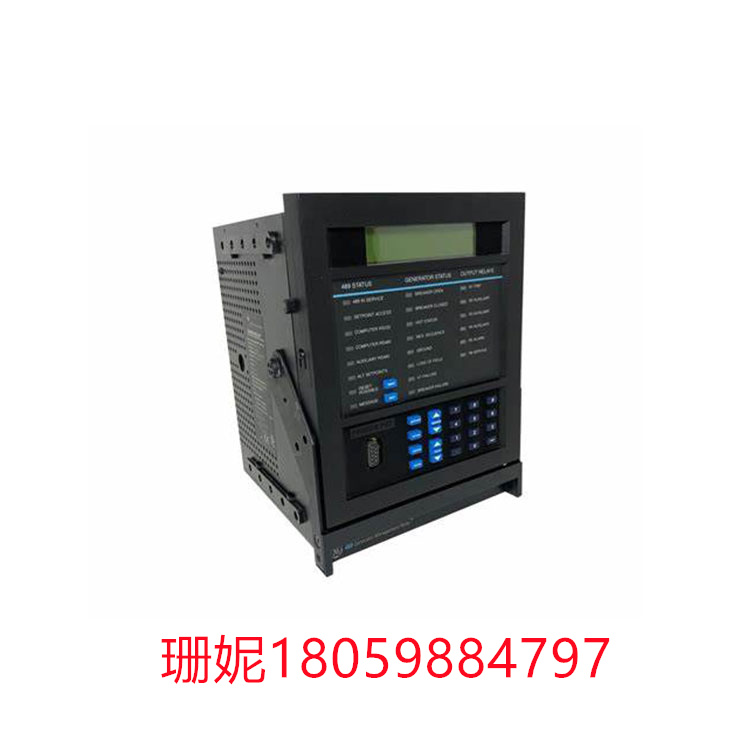

489- p5 - lo - a20是一种发电机管理继电器，由GE Multilin为489系列制造。这个继电器有5个A相CT次级。LO控制电源为20 ~ 60vdc, 20 ~ 48vac, 48hz ~ 62hz。该继电器上的模拟输出为4至20 mA。这个继电器有一个基本的显示。

该单元的运输重量为10千克(约)，尺寸为21.6厘米(长)x 22.4厘米(宽)x 25.2厘米(高)。前面板包括多个状态led以及输入按钮，数字键盘，输入端口和用于读取信息的LCD屏幕在单元的位置。

“频率”取值范围为0.00 ~ 90.00 Hz。“中性伏特(3)”参数取值范围为0 ~ 25000 V。“平均电压”参数取值范围为额定电压的0.00 ~ 1.50倍。功率因数参数的范围为0.01至1.00超前/滞后。无功功率(Mvar)参数取值范围为额定电压的-2.00 ~ 2.00。实际功率参数的取值范围为额定电压的-2.00 ~ 2.00倍。视在功率参数的取值范围为额定电压的0.00至2.00倍。模拟输入1 ~ 4的取值范围为-50000 ~ +50000。转速表参数的范围为0到7200rpm。“已用热容量”取值范围为0 ~ 100%。当前需求参数的范围为0.00到20.00 × FLA。Mvar需求参数的范围为额定电压的0.00至2.00倍。MW需求参数的范围为额定电压的0.00至2.00倍。MVA需求参数的范围为额定电压的0.00至2.00倍。

关于489-P5-LO-A20的常见问题

是否有GE发电机管理继电器489系列的手册?

是的，GE发电机管理继电器的489系列有手册，该手册以PDF格式提供，手册部件编号为1601-0150-AE。

GE发电机管理继电器489-P5-LO-A20有多少输出继电器?

GE发电机管理继电器489-P5-LO-A20有6个输出继电器，用于报警和跳闸。

489发电机管理继电器应多久上电一次?

建议489发电机管理继电器每年至少通电一次，以防止电源内的电解电容器变质。
