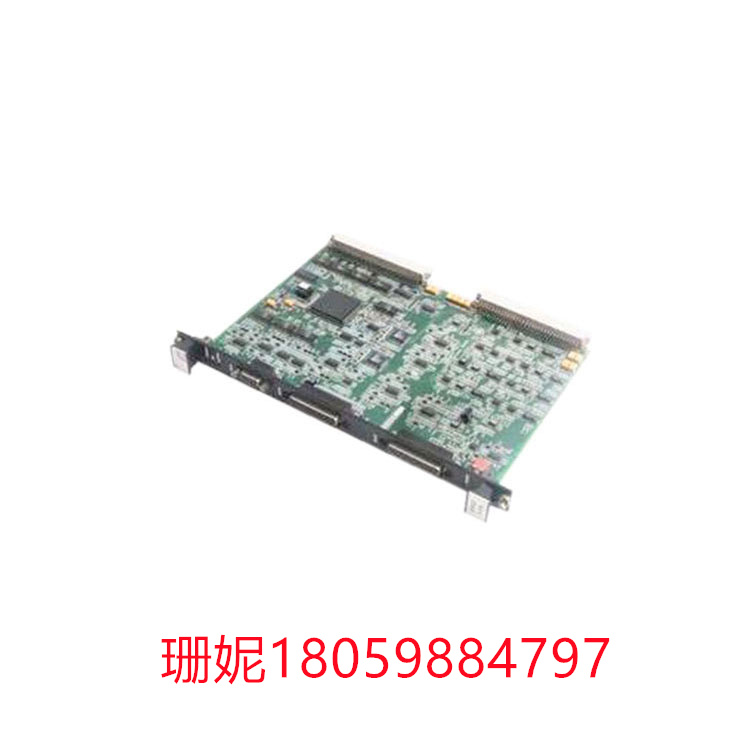

IS200ERIOH1AAA GE 励磁调节器

【功能描述】

IS200ERIOH1AAA  板由通用电气为EX2100励磁调节器和Mark VI系列整体生产，为客户和系统提供I/O接口。它为简单和冗余的调节器控制系统提供了这些功能。对于单工型应用，I/O安装在ERBP(励磁调节器背板)中，并为ECTBG2终端板和EPCT终端板提供客户I/O信号接口。IS200ERIOH1AAA  还能够为EROC(励磁调节器选项卡)和ERDD(励磁调节器接口和动态放电)接口系统I/O信号。对于冗余应用，它还为ERRR(励磁调节器冗余继电器)接口系统I/O信号。

励磁调节器I/O通过ERBP或ERRB背板连接到EROC和ERDD板，前者用于单一应用，后者用于冗余应用。此外，ERIO通过两个25针连接器连接到ERBP和ERRB，连接到EPCT和ECTB。FPGA(现场可编程门阵列)控制存储和数据采集到DPM(双端口存储器)。这个特殊的单元是原始部件的修订版，由型号末尾的“a”表示。

IS200ERIOH1AAA GE 励磁调节器

The IS200ERIOH1AAA board is manufactured by GE for the EX2100 excitation regulator and Mark VI series as a whole, providing I/O interfaces for customers and systems. It provides these functions for a simple and redundant regulator control system. For simplex applications, I/O is installed in the ERBP(excitation regulator backplane) and provides the customer I/O signal interface to the ECTBG2 end board and EPCT end board. The IS200ERIOH1AAA is also capable of interconnecting system I/O signals for EROC(Excitation Regulator TAB) and ERDD(Excitation Regulator Interface and Dynamic Discharge). For redundant applications, it also interfaces the ERRR(Field Regulator Redundant Relay) system I/O signals.

The excitation regulator I/O is connected to the EROC and ERDD boards via the ERBP or ERRB backplane, the former for single applications and the latter for redundant applications. In addition, the ERIO is connected to the ERBP and ERRB via two 25-pin connectors, and to the EPCT and ECTB. FPGA(Field Programmable Gate Array) controls the storage and data acquisition to DPM(dual port memory). This particular unit is a revised version of the original part, denoted by the "A" at the end of the model number.

IS200ERIOH1AAA GE 励磁调节器
