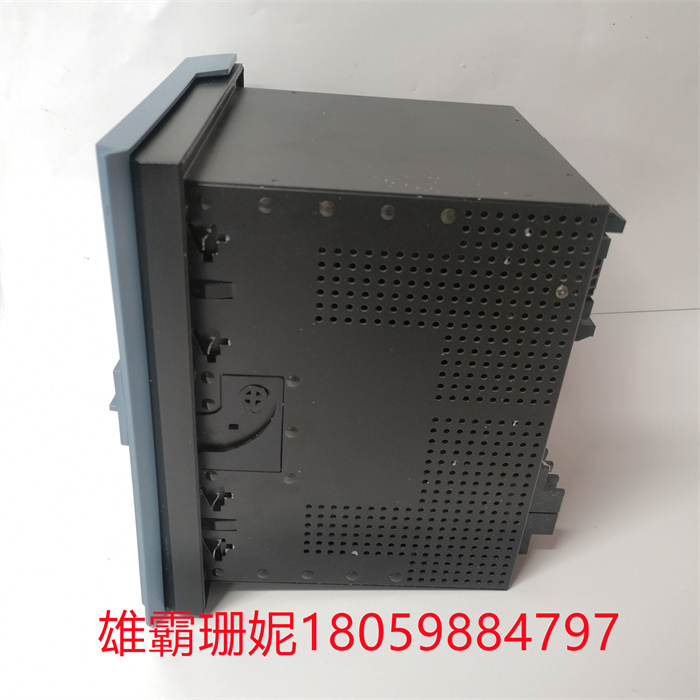

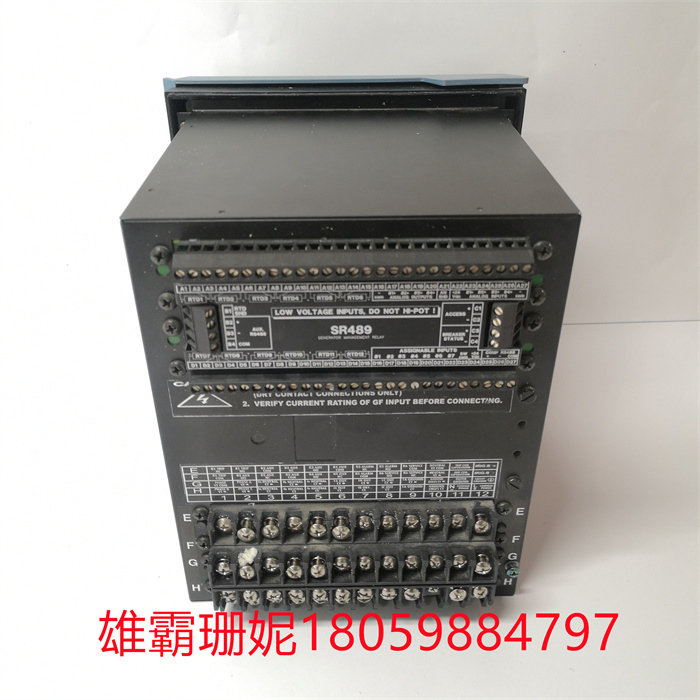

GE SR489-P5-HI-A20-E  继电器

【功能描述】

489-p5-hi-a20-e是由GE Multilin为489系列制造的发电机管理继电器。这个继电器有5个A相CT次级。HI控制电源为90-300 VDC,70265 VAC,48-62 Hz。该继电器上的模拟输出为4至20 mA。该继电器具有比基本显示器更大的LCD增强显示。如果输出继电器触点需要用于低压可及应用，则客户有责任确保适当的绝缘水平。

基于微处理器或固态的继电器通常提供许多设置和曲线选项。

介质电压耐受性参考标准EN60255-5。耐冲击电压参照标准EN60255-5。绝缘电阻参考标准EN60255-5。阻尼振荡器参考标准IEC61000-4-18/IEC60255-22-1。静电放电参考标准EN61000-4-2/IEC60255-22-2。射频抗扰度参考标准EN61000-4-3/IEC60255-22-3。快速瞬态扰动参考标准EN61000-4-4/IEC60255-22-4。浪涌抗扰度参考标准EN61000-4-5/IEC60255-22-5。传导射频抗扰度参考标准EN61000-4-6/IEC60255-22-6。辐射和传导发射参考标准CISPR11/CISPR22/IEC60255-25。正弦振动参考标准IEC60255-21-1。电源磁抗扰度参考标准IEC61000-4-8。电压跌落和中断是参考标准IEC61000-4-11。入口保护是参考标准IEC60529。环保(冷)参考标准IEC60068-2-1。环保(干热)参考标准IEC60068-2-2。相对湿度循环参照标准IEC60068-2-30。EFT是参考标准IEEE/ANSI C37.90.1。阻尼振荡符合参考标准IEEE/ANSI C37.90.1。ESD是参考标准IEEE/ANSIC37.90.3。安全性参考标准为UL508、UL C22.2-14和UL1053。

GE SR489-P5-HI-A20-E  继电器

489-P5-HI-A20-E is a generator management relay manufactured by GE Multilin for the 489 series. This relay has 5 A phase CT secondary. HI control power supply is 90-300 VDC,70265 VAC,48-62 Hz. The analog output on this relay is 4 to 20 mA. The relay has a larger LCD enhanced display than the base display. If the output relay contacts are required for low voltage access applications, it is the customer's responsibility to ensure appropriate insulation levels.

Microprocessor-based or solid-state relays typically offer many Settings and curve options.

Dielectric voltage tolerance reference standard EN60255-5. Shock resistance voltage refer to EN60255-5. Insulation resistance reference standard EN60255-5. Damping oscillator reference standard IEC61000-4-18/IEC60255-22-1. Electrostatic discharge reference standard EN61000-4-2/IEC60255-22-2. Rf immunity reference standard EN61000-4-3/IEC60255-22-3. Fast transient disturbance reference standard EN61000-4-4/IEC60255-22-4. Reference standard for surge immunity EN61000-4-5/IEC60255-22-5. Conducted radio frequency immunity reference standard EN61000-4-6/IEC60255-22-6. Radiation and conducted emission reference standard CISPR11/CISPR22/IEC60255-25. Sinusoidal vibration reference standard IEC60255-21-1. Reference standard for magnetic immunity of power supply IEC61000-4-8. Voltage drop and interruption is the reference standard IEC61000-4-11. The inlet protection standard is IEC60529. Environmental protection (cold) reference standard IEC60068-2-1. Environmental protection (dry heat) reference standard IEC60068-2-2. Reference the relative humidity cycle standard IEC60068-2-30. EFT is the reference standard IEEE/ANSI C37.90.1. The damped oscillation complies with the reference standard IEEE/ANSI C37.90.1. ESD is the reference standard IEEE/ANSIC37.90.3. The safety reference standards are UL508, UL C22.2-14 and UL1053.

GE SR489-P5-HI-A20-E  继电器
