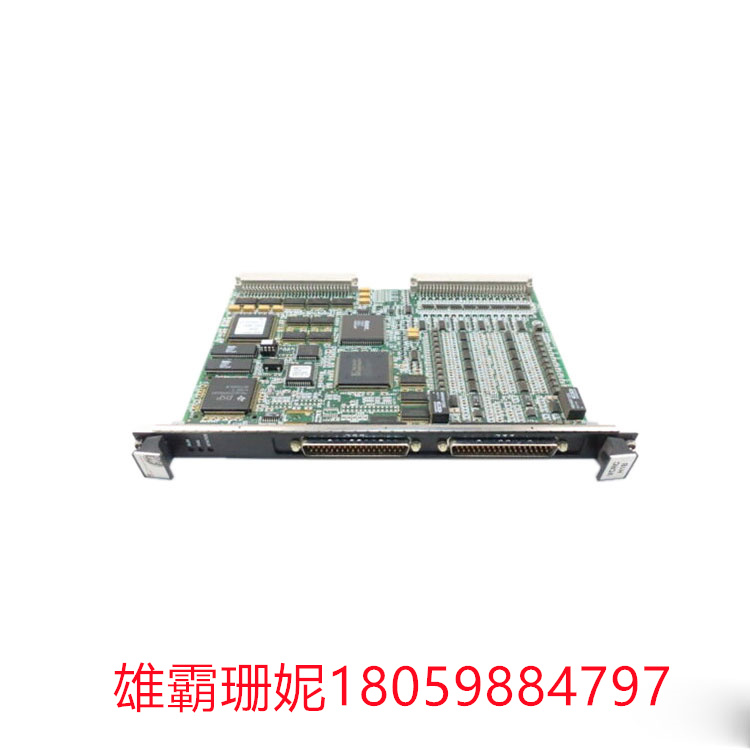

IS200WNPSH1ABA板是由通用电气制造的印刷电路板，用于马克六涡轮控制系统。该模型可以看作是子板，可以与系统内的其他板连接。该板没有任何类型的LED标识符，因为许多其他板在Mark VI系列有。WDII板上有16个保险丝，它们被组织成两排，每排8个。它们位于电路板顶部的两个母插头连接器旁边。

当IS200WNPSH1ABA板在Mark VI系统中使用时，它可以与多个潜在的通用或特定应用的I/ o一起使用。WDII板可用于单工、双工或三模冗余应用，Mark VI系列中典型的应用类型是三模冗余。三模块冗余架构将包含三个独立的模块，分别是控制模块、备份保护模块和ionet。

IS200WNPSH1ABA GE 印刷电路板

The IS200WNPSH1ABA board is a printed circuit board manufactured by General Electric for the Mark VI turbine control system. The model can be thought of as a child board that can be connected to other boards within the system. The board does not have any type of LED identifier, as many other boards in the Mark VI series do. There are 16 fuses on the WDII board, which are organized into two rows of 8 fuses each. They are located next to the two female plug connectors on the top of the board.

When the IS200WNPSH1ABA board is used in a Mark VI system, it can be used with multiple potential general-purpose or application-specific I/ OS. The WDII board can be used in simplex, duplex or three-mode redundancy applications, the typical application type in the Mark VI series is three-mode redundancy. The three-module redundant architecture will consist of three separate modules, namely the control module, backup protection module and ionet.
