IS200TPROS1CBB是一种被称为保护终端卡的设备。这是一种印刷电路板或PCB，它是矩形的形状和大。IS200TPROH1B是通用电气(GE) Mark VI系列的一个组件。这些系统负责管理和自动化工业燃气和蒸汽涡轮机。

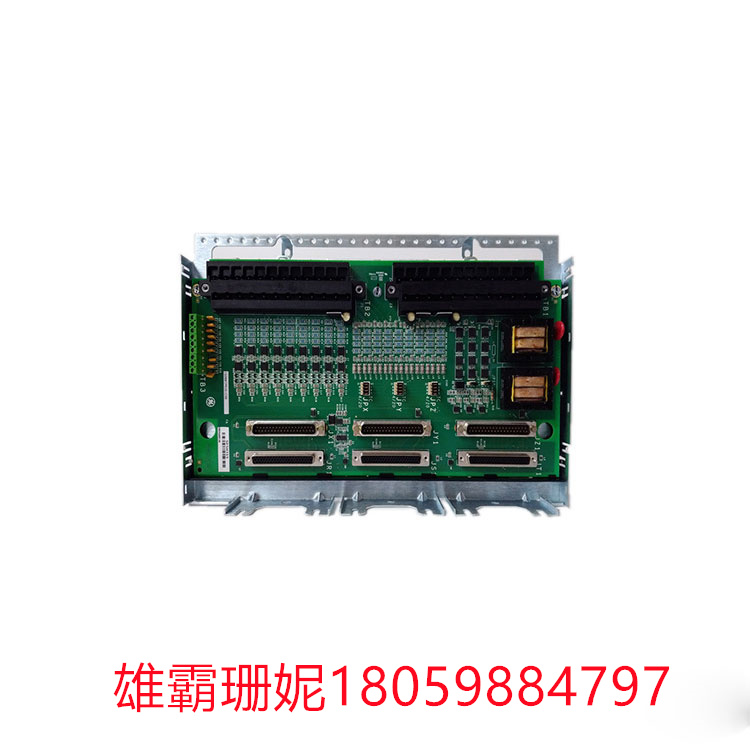

IS200TPROS1CBB的左边缘由两(2)个黑色的大型端子块占据。这两个端子块都有24个立方体形状的银色金属端子，总共有48个端子。

位于IS200TPROS1CBB顶部的是一对垂直成对的变压器。这些变压器大多是红色的，顶部有黄色的部分。紧挨着这些变压器的是一个圆形的红色元件，称为MOV或金属氧化物压敏电阻。

IS200TPROS1CBB的右边缘被一组黑色和银色的连接器端口所占据。右侧的三个连接器端口比其他端口大。它们从上到下被标识为JZ1、JY1和JX1。在这些较大的连接器端口的左侧是三(3)个小连接器端口，从上到下分别标识为JZ5、JY5和JX5。在每个组件下面，与这些小连接器端口配对的是一个非常小的黄色电容器。IS200TPROS1CBB的左半部分有一长排以字母L标识的银色组件。

IS200TPROS1CBB GE   印刷电路板或PCB

The IS200TPROS1CBB is a device known as a Protected terminal card. This is a printed circuit board or PCB that is rectangular in shape and large. The IS200TPROH1B is a component of the General Electric (GE) Mark VI series. These systems manage and automate industrial gas and steam turbines.

The left side of the IS200TPROS1CBB is occupied by two (2) large black terminal blocks. Both terminal blocks have 24 cube-shaped silver metal terminals for a total of 48 terminals.

Sitting on top of the IS200TPROS1CBB is a pair of vertically paired transformers. These transformers are mostly red with a yellow section on top. Next to these transformers is a round red element called MOV or metal oxide varistor.

The right edge of the IS200TPROS1CBB is occupied by a set of black and silver connector ports. The three connector ports on the right are larger than the other ports. They are identified from top to bottom as JZ1, JY1, and JX1. To the left of these larger connector ports are three (3) smaller connector ports, identified from top to bottom as JZ5, JY5, and JX5. Underneath each component, paired with these small connector ports, is a very small yellow capacitor. The left half of the IS200TPROS1CBB has a long row of silver components identified with the letter L.
