IS200TBCIS2CCD GE 接受24个干接点输入

IS200TBCIS2CCD GE  接受24个干接点输入

IS200TBCIS2CCD接口与VTCC/VCRC或PDIA I/O包取决于它所使用的系统。该板接受24个干接点输入。它们被连接到电路板的端子上。每个都有12个障碍物。该板具有标称125 VDC浮动励磁电压。范围从100到145 Vdc。

IS200TBCIS2CCD有三个d壳型连接器。这些允许电缆连接器的连接。连接器为37针连接器，带锁扣紧固件。

IS200TBCIS2CCD上的端子排通常每个连接点使用#12 AWG线。当需要维护时，电路板的端子排可以从电路板上拔出。

有关IS200TBCIS2CCD功能的更多信息，请参阅通用电气手册或用户指南。这些出版物还将提供有关安装、维护和适当安全程序的详细信息。只有训练有素的技术人员才能操作、维护或安装Mark VI设备。

IS200TBCIS2CCD GE  接受24个干接点输入

The IS200TBCIS2CCD interfaces with VTCC/VCRC or PDIA I/O packages depending on the system it is used on. The board accepts 24 dry contact inputs. They are connected to the terminals of the circuit board. Each has 12 obstacles. The board has a nominal 125 VDC floating excitation voltage. Range from 100 to 145 Vdc.

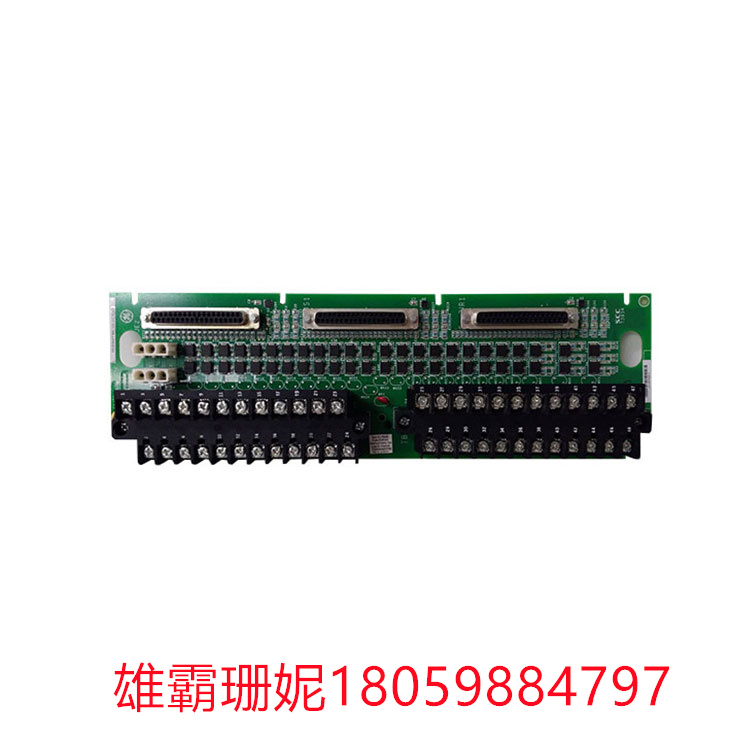

The IS200TBCIS2CCD has three D-shell connectors. These allow the connection of cable connectors. Connectors are 37-pin connectors with locking fasteners.

Terminal blocks on IS200TBCIS2CCDs typically use #12 AWG cables per connection point. When maintenance is required, the terminal block of the circuit board can be removed from the circuit board.

For more information about the features of the IS200TBCIS2CCD, please refer to the General Electric manual or user Guide. These publications will also provide detailed information on installation, maintenance and proper safety procedures. Only trained technicians can operate, maintain, or install Mark VI devices.
