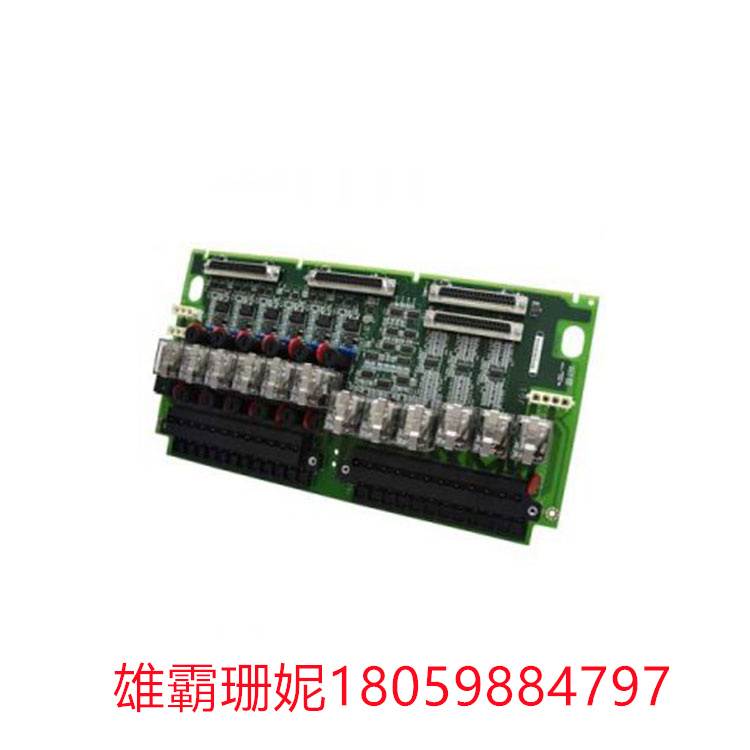

IS200TBCIH2CAA GE TBCI端子板

IS200TBCIH2CAA GE TBCI端子板

IS200TBCIH2C是GE公司生产的单板元器件。这是一个小板设计为马克六系统的终端板。Mark VI是通用电气发布的燃气/蒸汽轮机管理系统，作为“Speedtronic”系列的一部分，该系列始于20世纪60年代的MKI，并持续到90年代的MKVI和MKVIe。

IS200TBCIH2C是一款TBCI (Contact Input Group Isolation)端子板。该板由两个端子块和三个电缆连接器组成。端子排(TB1/TB2)各有24个螺钉连接，或12个触点。连接到这些触点使用多达12根AWG线。这些板是屏障型端子块，可以从板上拔出进行维护。线缆连接器为DC-37(母头)连接器，带锁扣。这些标为JT1/JS1/JR1。电路板有两个插头连接器用于电源输入。这些标签是JE1/JE2。电路板由金属框架包围，金属框架包括屏蔽端子带/排。

IS200TBCIH2CAA GE TBCI端子板

The IS200TBCIH2C is a single board component produced by GE. This is a small board designed as a terminal board for the Mark VI system. Mark VI is a gas/steam turbine management system released by General Electric as part of the "Speedtronic" series, which began with MKI in the 1960s and continued through MKVI and MKVIe in the 1990s.

The IS200TBCIH2C is a Contact Input Group Isolation (TBCI) terminal board. The board consists of two terminal blocks and three cable connectors. The terminal block (TB1/TB2) each has 24 screw connections, or 12 contacts. Up to 12 AWG wires are used to connect to these contacts. These boards are barrier type terminal blocks that can be removed from the boards for maintenance. The cable connector is a DC-37(female) connector with a lock. These are labeled JT1/JS1/JR1. The board has two plug connectors for power input. These labels are JE1/JE2. The circuit board is surrounded by a metal frame that includes a shielded terminal strip/bank.

IS200TBCIH2CAA GE TBCI端子板
