IS200SRTDH2ACB是一种印刷电路板或PCB，由通用电气或GE创建，属于Mark VI系列。Mark VI是通用电气Mark系列的最新版本。Mark VI和Mark系列中的其他系列开发用于管理和自动化燃气和蒸汽轮机系统的过程。这些被用于全球许多不同的行业。

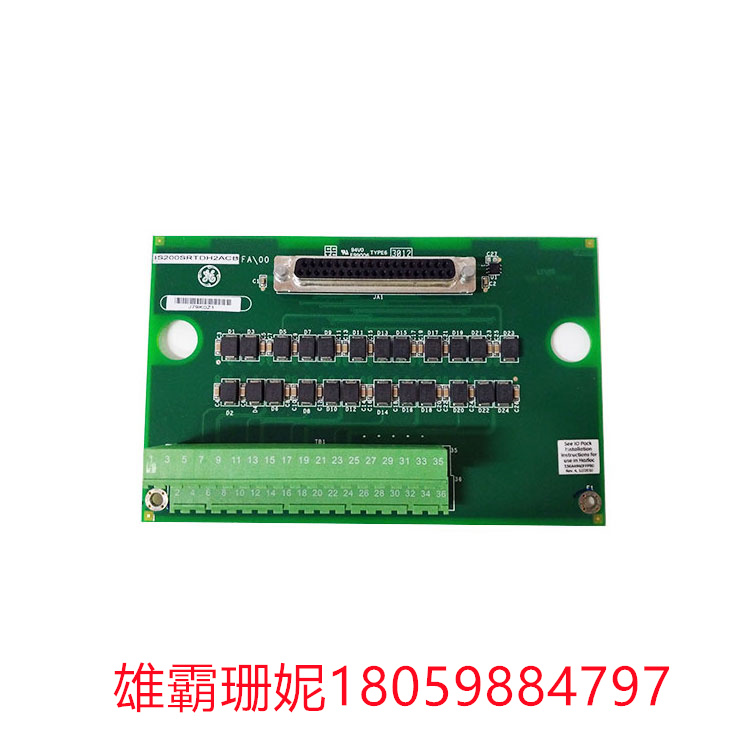

IS200SRTDH2ACB是一块相对较小的印刷电路板，其电子元件的尺寸各不相同。两(2)个大型接线端子位于IS200SRTDH2A的底部边缘，一个在另一个的顶部。每个端子块包含十八(18)个端子，总共三十六(3)个端子。这些包含在接线端子内的银色金属端子用白色字体从一(1)到三十六(36)编号。一(1)个大连接器端口连接到IS200SRTDH2ACB的上边框。此连接器端口用于将额外组件或其他板连接到IS200SRTDH2ACB。IS200SRTDH2ACB的中心被一组二极管和电容器占据。二极管的形状像黑色矩形。有二十四个二极管，它们被分成两(2)水平行，每行十二(12)个二极管。坐在这些二极管中的每一个旁边的是一(1)个或两(2)个矩形的小电容器。器件的完整部件名称IS200SRTDH2ACB已印在IS200SRTDH2ACB的左上角。GE的符号已印在此零件号下方的电路板上。

I/O 扩展：微处理器扩展板的主要功能是能够扩展微处理器可用的输入/输出引脚数量。这允许更多的传感器和执行器连接到控制系统，从而为控制系统的设计提供更大的灵活性。

处理能力：一些微处理器扩展板还为控制系统提供额外的处理能力。这可以是协处理器或更强大的微控制器的形式。这种额外的处理能力可用于执行复杂的计算或算法，从而提高控制系统的整体性能。

通信接口：微处理器扩展板通常包括额外的通信接口，以便与控制系统中的其他设备轻松集成。这可以包括 SPI、I2C、UART 和以太网等接口。

模拟和数字 I/O：微处理器扩展板还可能包括模拟和数字 I/O 功能。这允许更***的传感器和执行器连接到控制系统，包括那些需要模拟输入或输出的传感器和执行器。

兼容性：微处理器扩展板通常设计为与一系列微处理器和开发平台兼容，从而可以轻松地将它们集成到现有的控制系统中。

IS200SRTDH2ACB GE 印刷电路板或PCB

The IS200SRTDH2ACB is a printed circuit board or PCB created by General Electric or GE and belongs to the Mark VI series. The Mark VI is the latest version of the General Electric Mark series. The Mark VI and other families in the Mark family develop processes for managing and automating gas and steam turbine systems. These are used in many different industries around the world.

The IS200SRTDH2ACB is a relatively small printed circuit board with electronic components of varying sizes. Two (2) large terminals are located on the bottom edge of the IS200SRTDH2A, one on top of the other. Each terminal block contains eighteen (18) terminals for a total of thirty-six (3) terminals. These silver metal terminals contained within the terminal are numbered in white lettering from one (1) to thirty-six (36). One (1) large connector port is connected to the top bezel of the IS200SRTDH2ACB. This connector port is used to connect additional components or other boards to the IS200SRTDH2ACB. The center of the IS200SRTDH2ACB is occupied by an array of diodes and capacitors. The diode is shaped like a black rectangle. There are twenty-four diodes, which are divided into two (2) horizontal rows of twelve (12) diodes per row. Sitting next to each of these diodes is a small capacitor of one (1) or two (2) rectangles. The full part name of the device, IS200SRTDH2ACB, is printed in the upper left corner of the IS200SRTDH2ACB. The GE symbol is printed on the circuit board below this part number.

I/O expansion: The main function of the microprocessor expansion board is the ability to expand the number of input/output pins available to the microprocessor. This allows more sensors and actuators to be connected to the control system, providing greater flexibility in the design of the control system.

Processing power: Some microprocessor expansion boards also provide additional processing power to the control system. This can be in the form of a coprocessor or a more powerful microcontroller. This additional processing power can be used to perform complex calculations or algorithms, thereby improving the overall performance of the control system.

Communication interface: Microprocessor expansion boards often include additional communication interfaces for easy integration with other devices in the control system. This can include interfaces such as SPI, I2C, UART, and Ethernet.

Analog and digital I/O: The microprocessor expansion board may also include analog and digital I/O capabilities. This allows more sophisticated sensors and actuators to be connected to the control system, including those that require analog inputs or outputs.

Microprocessor expansion boards are typically designed to be compatible with a range of microprocessors and development platforms, making it easy to integrate them into existing control systems.
