产品描述

IS210BPPBH2BMD 是通用电气制造的 Mark VI 板组件。 MKVI 专为蒸汽或燃气轮机管理而设计，是 GE 发布的第五款 Speedtronic 系统。Speedtronic 系列是通用电气从 1960 年代到世纪之交的主要管理系列。该系统包括一个中央控制模块，该模块连接到终端板以及允许访问涡轮机数据、可编程维护工具和警报状态的操作员界面。

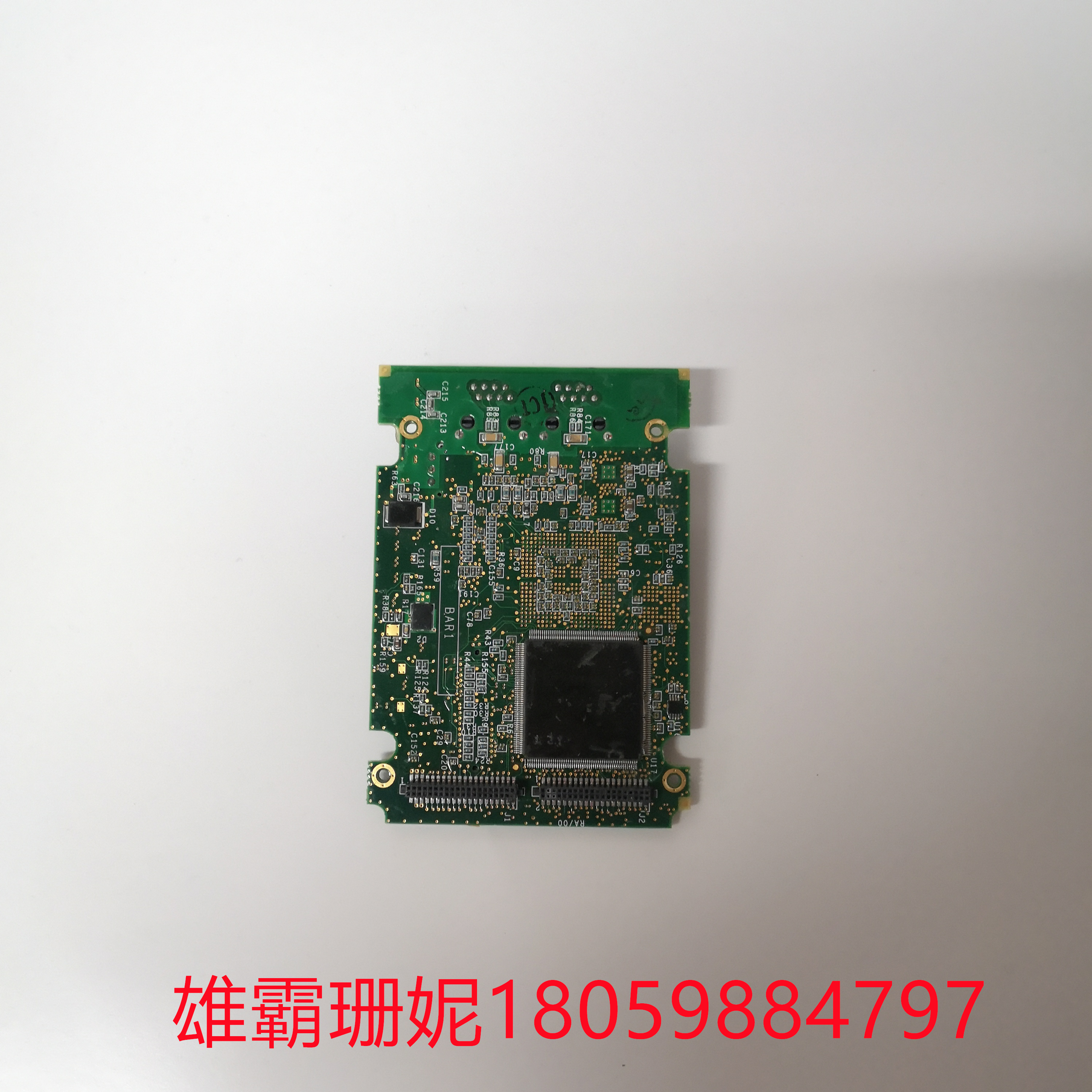

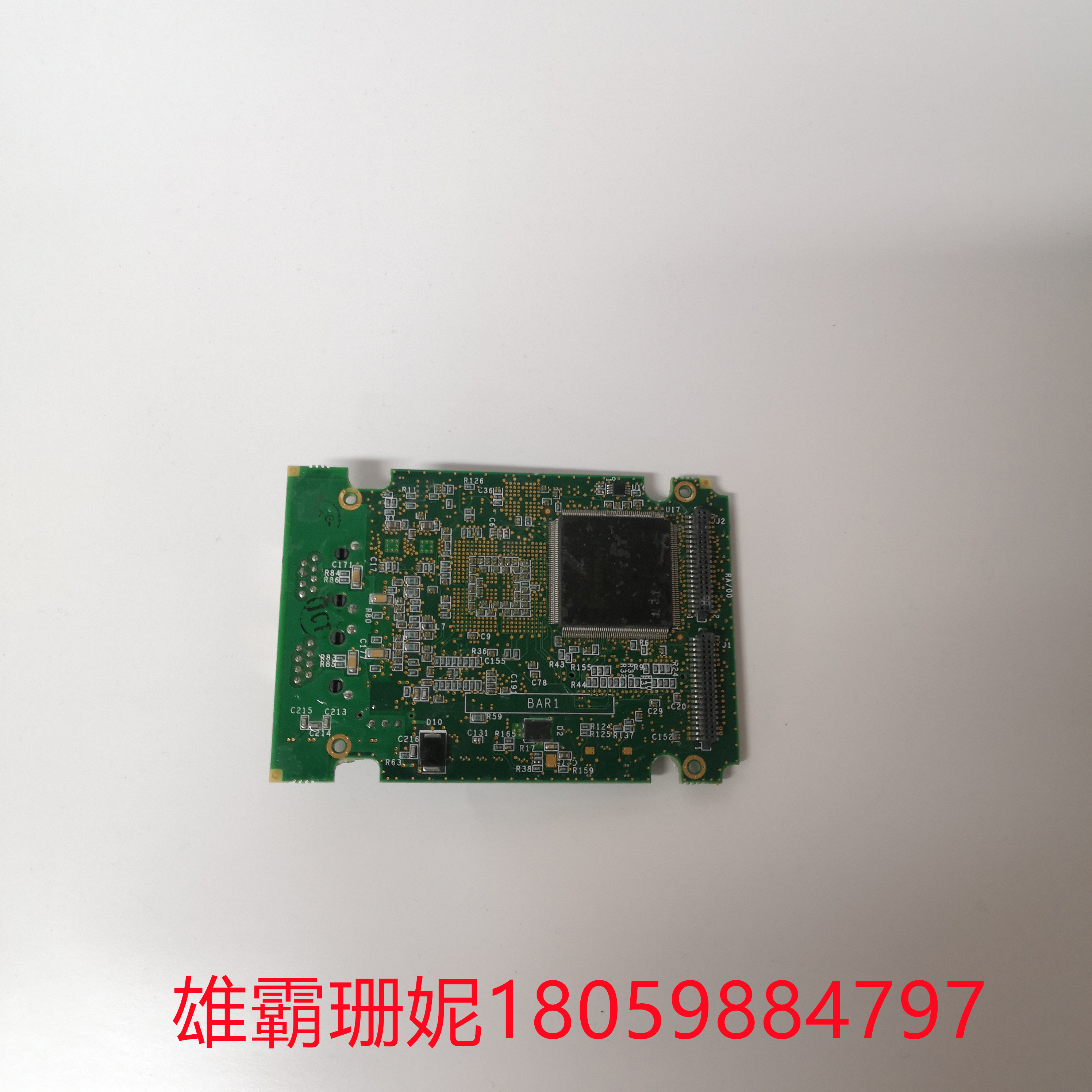

IS210BPPBH2BMD 是一个小型辅助板，可连接到更大的 WETA 板。IS210BPPBH2BMD 使用穿过四个钻孔的螺钉连接到其主板。这些位于板的每个角落附近。螺钉插入支架，然后插入下面的主板。这块板在三个边缘上有小切口。

IS210BPPBH2BMD 由两个母插头填充。其中之一是三位插头。另一个插头是长而窄的插头。该板还有两个母插孔连接器。该板由变压器、晶体管、电感线圈和两个晶体/振荡器组成。  它还有两个 LED 组件，它们沿着电路板的一个边缘并排放置。

IS210BPPBH2BMD 标有 GE 标志。它还带有 Type 6、FA/00 和 E99006 等代码。有关电路板组件、安装程序和安全建议的更多信息，请参见制造商的出版物。

AX Control 将仔细包装您购买的货物以便发货。对静电敏感的产品将使用防静电包装进行包装以提供保护。

GE IS210BPPBH2CAA 燃机系统

Product description

The IS210BPPBH2BMD is a Mark VI board assembly manufactured by General Electric. Designed for steam or gas turbine management, the MKVI is the fifth Speedtronic system released by GE. The Speedtronic series was GE's primary management series from the 1960s until the turn of the century. The system includes a central control module that is connected to the terminal board and an operator interface that allows access to turbine data, programmable maintenance tools and alarm status.

The IS210BPPBH2BMD is a small auxiliary board that can be connected to a larger WETA board. The IS210BPPBH2BMD is attached to its motherboard using screws threaded through four drill holes. These are located near each corner of the board. Screw into the bracket and then into the motherboard below. The board has small incisions on three edges.

The IS210BPPBH2BMD is filled with two female plugs. One of them is three plugs. The other plug is a long, narrow plug. The board also has two female jack connectors. The board consists of a transformer, a transistor, an inductor coil, and two crystals/oscillators. It also has two LED components, which are placed side by side along one edge of the board.

The IS210BPPBH2BMD is marked with the GE logo. It also comes with codes such as Type 6, FA/00, and E99006. For more information on board components, installation procedures, and safety recommendations, see the manufacturer's publications.

AX Control will carefully pack your purchase for shipment. Products that are sensitive to static electricity will be packaged in anti-static packaging to provide protection.
