IS200SRTDH2ACB GE 燃机模块

GE IS200SRTDH2ACB 燃机模块


品牌
ABB
产品特性
模块
是否进口
产地
美国
加工定制
工作电压
220V
输出频率
39kHz
产品认证
合格
系列
514060656
物料编码
IS200SRTDH2ACBIS200SRTDH2ACBIS200SRTDH2ACB
可售卖地
全国
型号
IS200SRTDH2ACB


联系电话:18059884797

产品详情

GE IS200SRTDH2ACB 燃机模块

GE IS200SRTDH2ACB 燃机模块


IS200SRTDH2ACB是一种燃机模块,由通用电气或GE创建,属于Mark VI系列。Mark V1是通用电气Mark系列的最新版本,MarkVI和Mark系列中的其他系列开发用于管理和自动化燃气和蒸汽轮机系统的过程。这些被用于全球许多不同的行业。

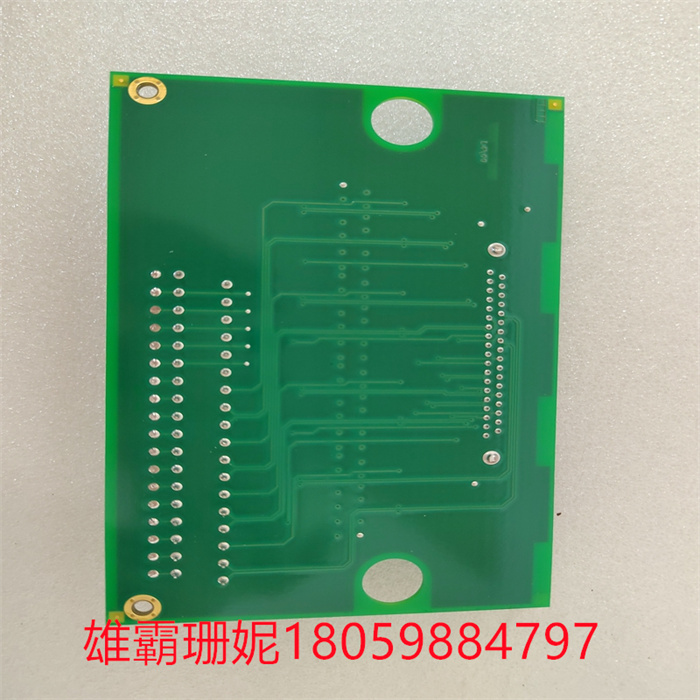

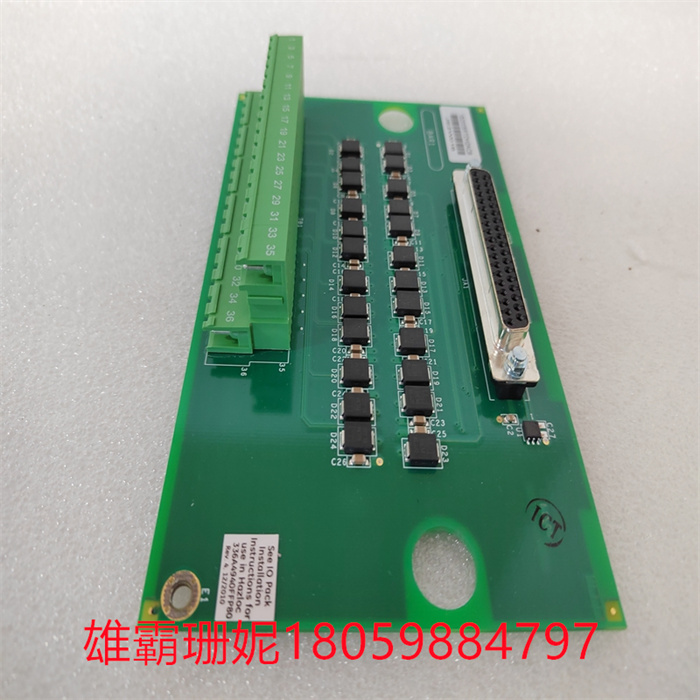

IS200SRTDH2ACB是一块相对较小的印刷电路板,其电子元件的尺寸各不相同,两(2)个大型接线端子位于S200SRTDH2A的底部边缘,人在另一个的顶部。每个端子块包含十八18)个端子,总共三十六3)个端子。这些包含在接线端子内的银色金属端子用白色字体从-(1)到三十六(36)编号。-(1)个大连接露端口连接到IS200SRTDH2ACB的上边框,此连接器端口用于将额外组件或其他板连接到IS200SRTDH2ACB。


S200SRTDH2ACB的中心被一组二极管和电容器占据。二极管的形状像黑色矩形。有二十四个二极管,它们被分成两2)水平行,每行十二(12)个二极管。坐在这些二极管中的每一个旁边的是一(1)个或两(2)个矩形的小电容器。器件的完整部件名称IS200SRTDH2ACB已印在IS200SRTDH2ACB的左上角。GE的符号已印在此零件号下方的电路板上

GE IS200SRTDH2ACB 燃机模块



GE IS200SRTDH2ACB gas turbine module

The IS200SRTDH2ACB is a gas turbine module created by General Electric or GE and belongs to the Mark VI series. The Mark V1 is the latest version of GE's Mark family, the MarkVI and other families in the Mark family developed processes for managing and automating gas and steam turbine systems. These are used in many different industries around the world.


The IS200SRTDH2ACB is a relatively small printed circuit board with electronic components of varying sizes, with two (2) large terminals located on the bottom edge of the S200SRTDH2A and a person on top of the other. Each terminal block contains eighteen 18) terminals, for a total of thirty-six 3) terminals. These silver metal terminals contained within the terminal are numbered in white lettering from -(1) to thirty-six (36). -(1) A large connector port is connected to the upper frame of the IS200SRTDH2ACB. This connector port is used to connect additional components or other boards to the IS200SRTDH2ACB.


The center of the S200SRTDH2ACB is occupied by an array of diodes and capacitors. The diode is shaped like a black rectangle. There are twenty-four diodes, which are divided into two 2) horizontal rows of twelve (12) diodes per row. Sitting next to each of these diodes is a small capacitor of one (1) or two (2) rectangles. The full part name of the device, IS200SRTDH2ACB, is printed in the upper left corner of the IS200SRTDH2ACB. The GE symbol is printed on the circuit board below this part number
