IC695CPU315-CD GE 卡件模块

IC695CPU315-CD  GE  卡件模块

GE Fanuc IC695CPU315-CD模块是用于RX3i PACSystem平台的CPU模块。IC695CPU315-CD CPU基于Celeron M微处理器。

GE Fanuc IC695CPU315-CD CPU是一款RX3i PacSystems 1.0 Gigahertz Celeron M CPU，具有20 MB用户内存。可随CPU订购的配件包括IC695ACC302智能辅助电池、IC693ACC302普通辅助电池和IC690RBT001充电电池。只有GEIP批准的辅助电池组才能与CPU模块一起使用。除了电池供电的RAM外，该模块还包括20 MB的NVRAM。IC695CPU315-CD CPU为离散I/O保留32 kb内存，为模拟I/O保留32 kb内存。最多支持512个程序块，每个程序块的大小为128 KB。CPU模块支持高速串行和RX3i PCU总线。IC695CPU315-CD CPU符合PCI标准2.2版。

IC695CPU315-CD CPU模块上提供了两个集成串口。一个端口支持RS-232通讯，另一个端口支持RS-485通讯。支持三种串行协议，包括串行I/O、Modbus RTU从站和SNP协议。模块的标称电流消耗在5伏直流电时为1.2安培，在3.3伏直流电时为1安培。工作温度范围为32至140华氏度。内部时钟的额定峰值漂移为每天2秒。最大内部计时精度为0.01%。IC695CPU315-CD CPU支持自动定位的符号变量，允许使用任意数量的用户内存。IC695CPU315-CD CPU支持大多数GE系列90-30模块和扩展机架。CPU固件可现场升级。IC695CPU315-CD CPU符合欧盟RoHS指令2002/95/EC以及相关豁免。IC695CPU315-CD CPU的应用包括应用进程和机器的实时控制。

IC695CPU315-CD  GE  卡件模块

GE Fanuc IC695CPU315-CD module is a CPU module for RX3i PACSystem platform. IC695CPU315-CD CPU is based on Celeron M microprocessor.

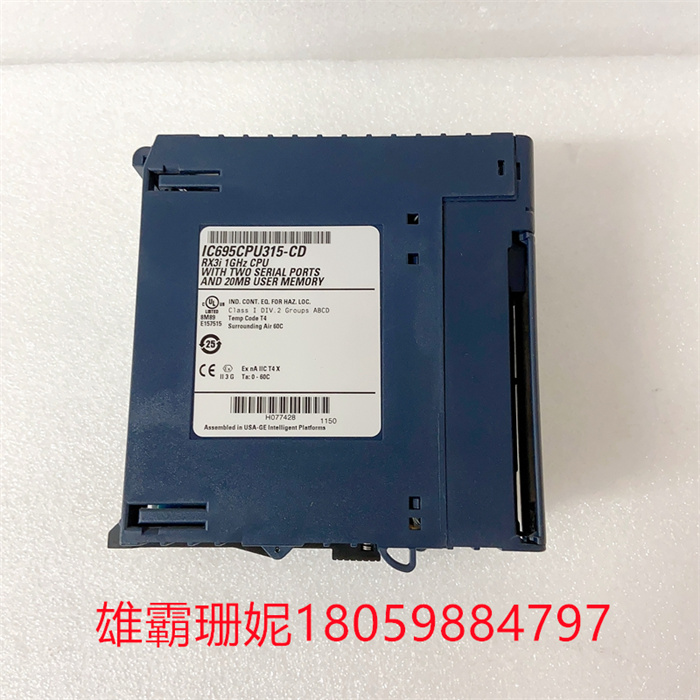

GE Fanuc IC695CPU315-CD CPU is a Rx3i PAC Systems 1.0 Gigahertz Celeron M CPU with 20 MB of user memory. Accessories that can be ordered with CPU include IC695ACC302 intelligent auxiliary battery, IC693ACC302 ordinary auxiliary battery and IC690RBT001 rechargeable battery. Only auxiliary battery pack approved by GEIP can be used with CPU module. In addition to the battery-powered RAM, the module also includes 20 MB NVRAM. IC695CPU315-CD CPU reserves 32 kb of memory for discrete I/O and 32 kb for analog I/O. Up to 512 program blocks are supported, and the size of each program block is 128 KB. The CPU module supports high-speed serial and RX3i PCU bus. IC695CPU315-CD CPU conforms to PCI standard version 2.2.

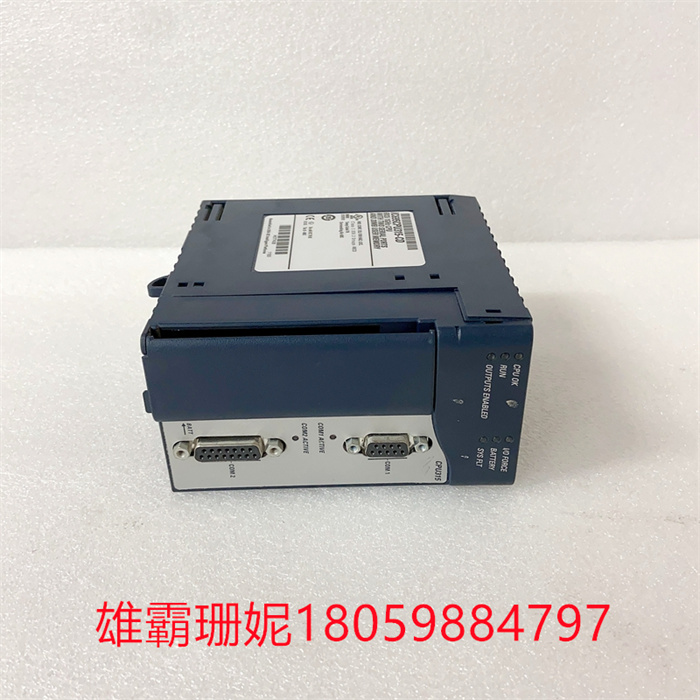

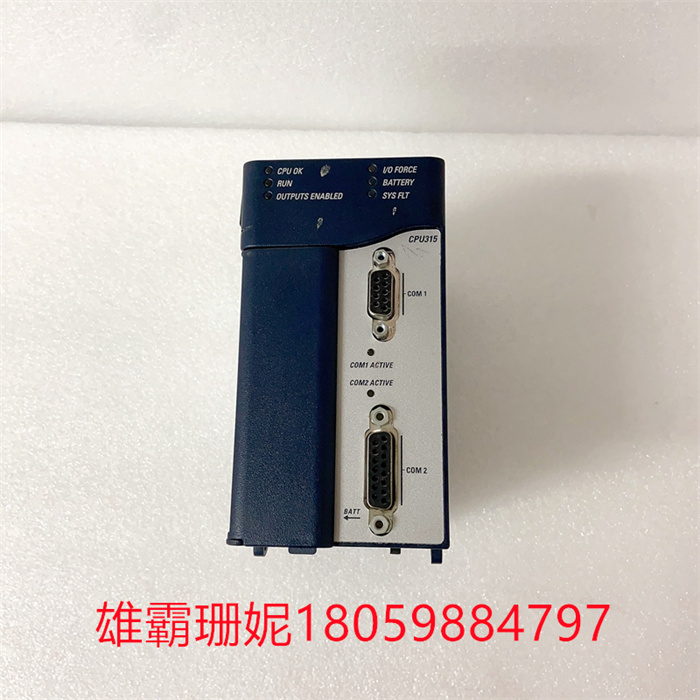

Two integrated serial ports are provided on the IC695CPU315-CD CPU module. One port supports RS-232 communication and the other port supports RS-485 communication. Support three serial protocols, including serial I/O, Modbus RTU slave and SNP protocol. The nominal current consumption of the module is 1.2 amps at 5 volts DC and 1 amp at 3.3 volts DC. The operating temperature range is 32 to 140 degrees Fahrenheit. The rated peak drift of the internal clock is 2 seconds per day. The maximum internal timing accuracy is 0.01%. IC695CPU315-CD CPU supports automatic positioning of symbolic variables, allowing the use of any amount of user memory. IC695CPU315-CD CPU supports most GE series 90-30 modules and expansion racks. The CPU firmware can be upgraded in the field. IC695CPU315-CD CPU complies with EU RoHS directive 2002/95/EC and related exemptions. The application of IC695CPU315-CD CPU includes real-time control of application process and machine.
