GE IS200TPROH1C 终端板

IS200TTURH1C是通用电气的终端板。 该板旨在与该公司后来的Speedtronic系统兼容。这包括Mark VI和Mark VIe系统。AX Control 为这两个系统以及早期 Speedtronic 系统的组件提供随时可发货的现有库存。自 1960 年代后期最早的迭代 （Mark I） 可用于工业燃气轮机和蒸汽轮机管理以来，Speedtronic 系统逐渐变得更加复杂。

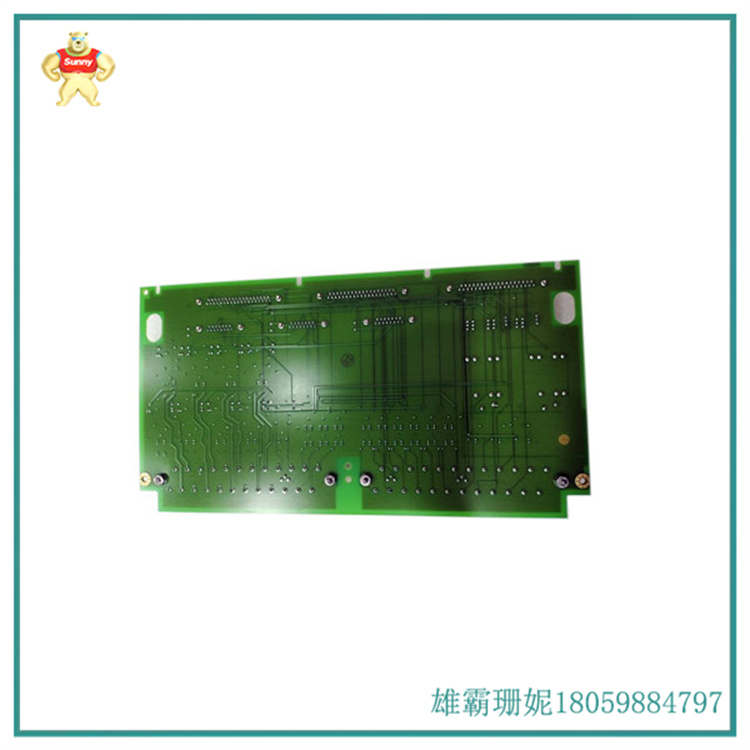

IS200TTURH1C主要是矩形，有一些小切口。该板与其他 PCB 如 PTUR 和 VTUR 板一起使用，以控制发电机的同步. 这主要是通过硬件和连接完成的。

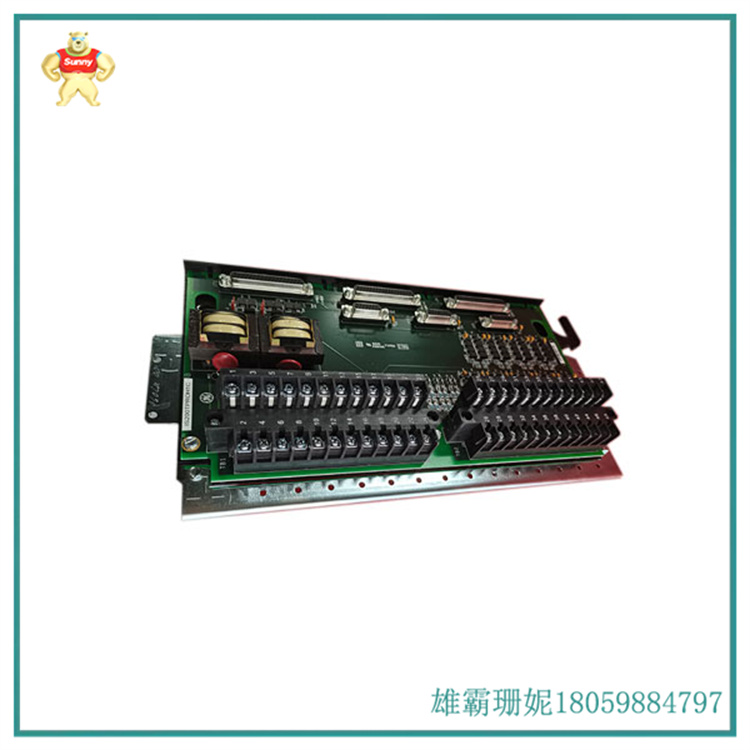

IS200TTURH1C 具有多个表面安装继电器。此外，该板使用可变电阻器，并且在电路板中心附近还有两个变压器。与其他电路板组件的通信通过 d-shell 连接器（公头和母头）、插头连接器和接线端子进行。电路板上最大的两个接线端子具有螺钉安装的连接器，这些连接器已编号以供参考。

IS200TTURH1C is a terminal board of General Electric. The board is designed to be compatible with the company's later Speedtronic system. This includes the Mark VI and Mark VIe systems. AX Control provides readily available inventory for both systems and components of early Speedtronic systems. Since the earliest iteration (Mark I) in the late 1960s was available for industrial gas and steam turbine management, Speedtronic systems have gradually become more complex.

IS200TTURH1C is mainly rectangular with some small cuts. This board is used in conjunction with other PCBs such as PTUR and VTUR boards to control the synchronization of the generator This is mainly achieved through hardware and connectivity.

IS200TTURH1C has multiple surface mounted relays. In addition, the board uses variable resistors and there are two transformers near the center of the circuit board. Communication with other circuit board components is carried out through d-shell connectors (male and female), plug connectors, and wiring terminals. The two largest wiring terminals on the circuit board have screw mounted connectors, which are numbered for reference.
