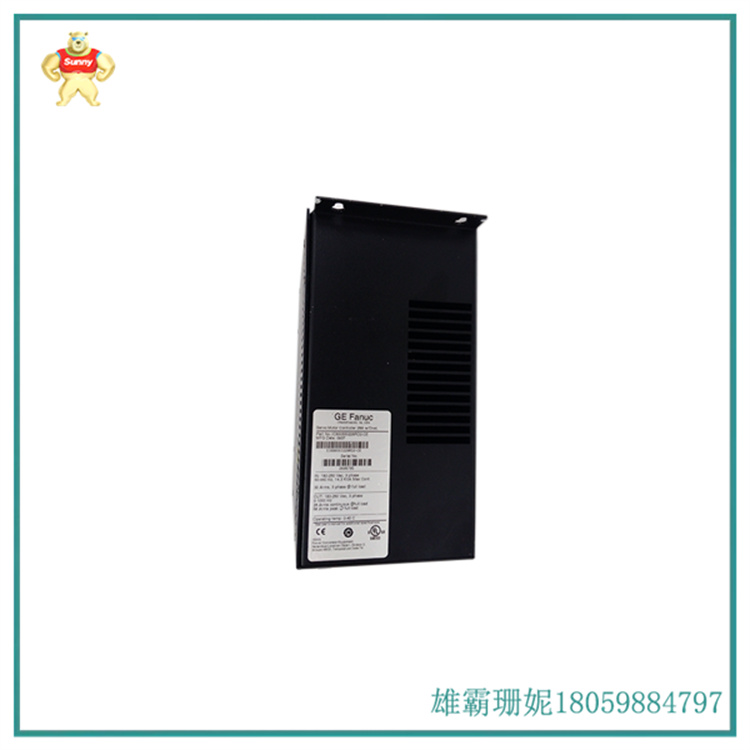

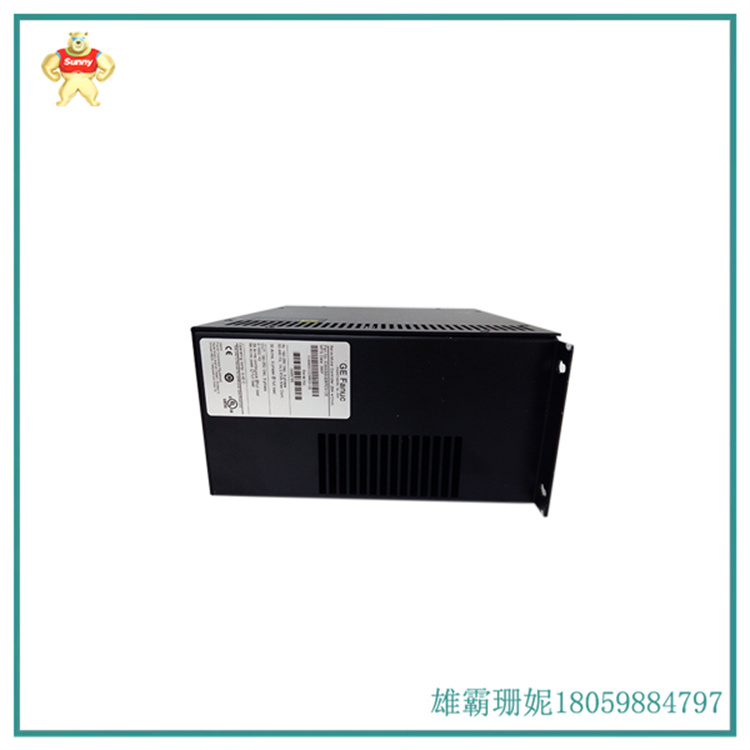

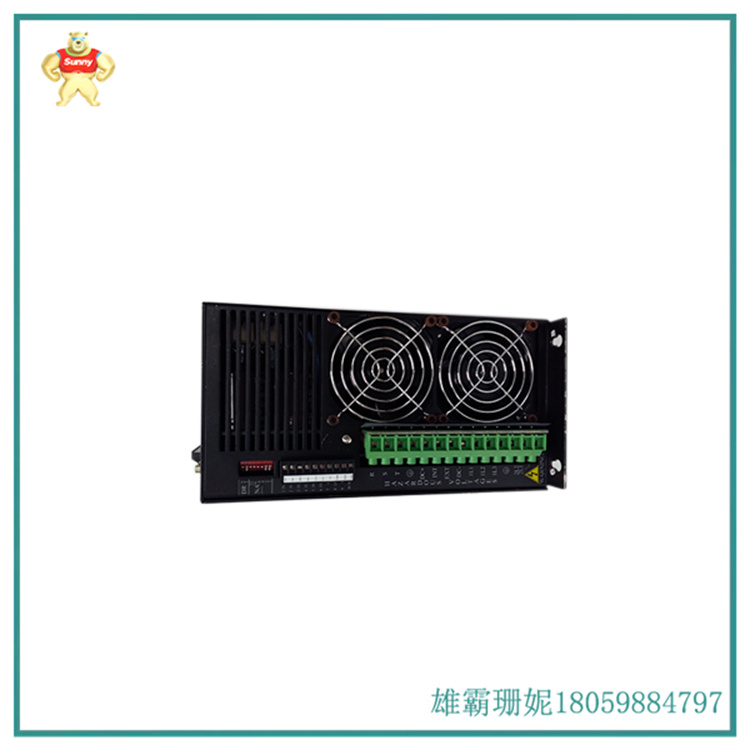

GE IC800SSI228RD2-CE 伺服电机

IC800SS1228RD2-CE伺服电机伺服电机有两个技术值得注意，一 种是高密度电机,采用的设计思想称为“大极电机"。例如，对于六极九槽电机，定子由九个独立极组成，每个极上缠绕-个集中线圈， 然后将九极组装成九槽电机铁芯。由于每个极都是独立缠绕和成型的，因此即使使用自动绕组，罐体满载率也可以保持在90%。这种电机具有良好的制造工艺,空间利用率和体积最小化，因此称为高密度电机。从工作原理上看，这种电机不属于旋转磁场电机,它在三相脉冲振动磁场下工作,因此，它的适用性、设

计方法和运行方式具有一定的特殊性， 因此这种电机不适合方波电流驱动。另-种类型是嵌入式磁钢倍率伺服电机，它可以利用交变和直接轴电感随位置变化的特点，由显著的极效应引起，形成真正的无传感器率伺服电驱动系统。除了各种光电编码器外，磁编码器值得关注。磁编码器的体积和重量比光电编码器小几十倍，温度范围更宽，几乎不怕冲击和振动。

IC800SS1228RD2-CE servo motor servo motor has two technologies worth noting, one is high-density motor, which adopts a design concept called "large pole motor". For example, for a six pole and nine slot motor, the stator is composed of nine independent poles, with each

Wrap a concentrated coil around each pole, and then assemble the nine poles into a nine slot motor core. Due to the independent winding and molding of each pole, even with the use of automatic winding, the full load rate of the tank can still be maintained at 90%. This type of motor has good performance

Good manufacturing processes, space utilization, and volume minimization are therefore referred to as high-density motors. From the perspective of working principle, this type of motor does not belong to a rotating magnetic field motor, but operates under a three-phase pulse vibration magnetic field. Therefore, its applicability and design

The calculation method and operation method have certain particularity, so this type of motor is not suitable for square wave current drive. Another type is an embedded magnetic steel ratio servo motor, which can take advantage of the characteristics of alternating and direct axis inductance changing with position by displaying

The pole effect of the sensor causes the formation of a true sensorless rate servo electric drive system. In addition to various optical encoders, magnetic encoders are worth paying attention to. The volume and weight of a magnetic encoder are dozens of times smaller than those of a photoelectric encoder, and the temperature range is wider

Not afraid of shock and vibration. Its working principle is very simple. The stator is a chip embedded with Hall magnetic sensors and DSP, and the size can be as small as MSOP-24 packaging. Its rotor is made of bipolar magnetic steel. It has a resolution of 10-12 bits and an accuracy of 8-
