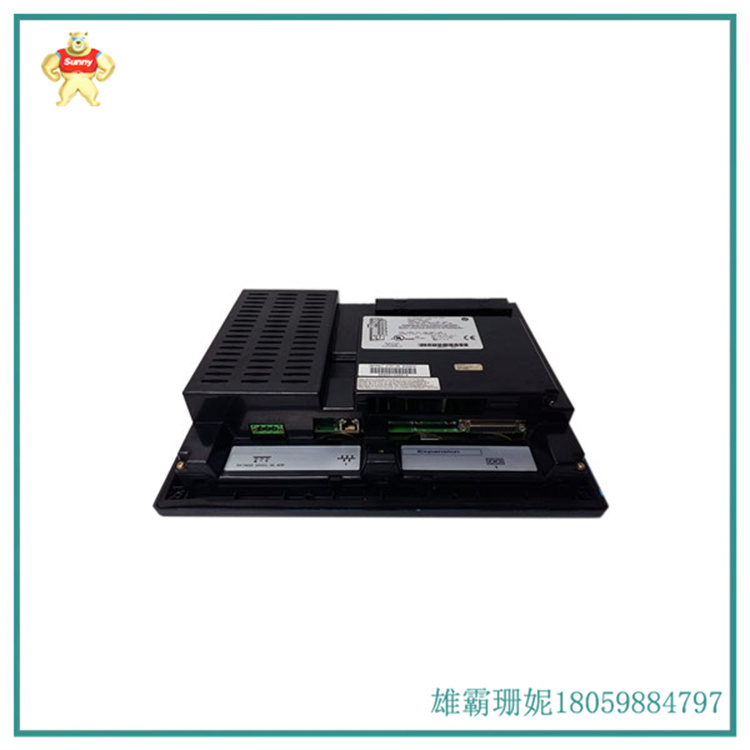

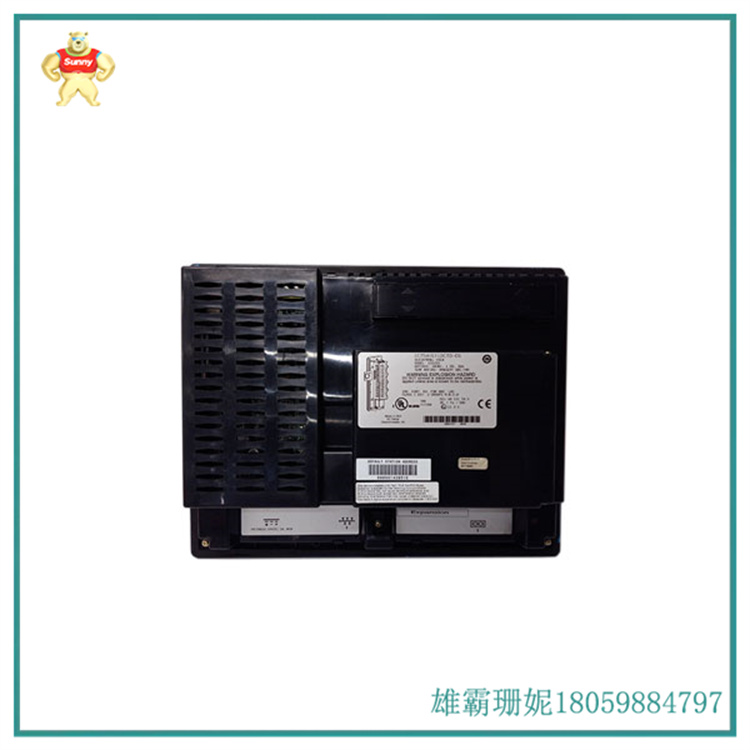

GE IC754VSI12CTD  人机界面（HMI）设备

IC754VSI12CTD是通用电气（GE）发那科自动化公司制造的操作面板。该操作面板是QuickPanel人机界面（HMI）设备的一部分。此HMI设备预装了Microsoft Windows Compact Embedded （CE）操作系统，该系统提供了任何操作员或用户都熟悉的配置和维护界面。它不仅提供了一个用户友好的环境，它还提供了标准的Microsoft Windows命令和功能，如文件传输协议，Pocket Internet Explorer，远程访问和远程浏览，PDF查看器等命令。

IC754VSI12CTD允许任何操作员或用户通过提供的监视器，触摸输入接口和通信接口监视或控制连接的机器或过程。为了监控系统，提供的 12 英寸彩色薄膜晶体管 （TFT） 显示屏能够通过定制设计的模拟提供过程的可视化。此外，彩色显示屏支持实现彩色编码动画和状态显示，以提高信息水平。控制命令通过触摸感应屏幕输入，允许操作员通过触摸相应的运行时图标或对象直接输入命令。与控制器的通信是使用单个RS232 / RS485组合端口在点对点或多点串行拓扑中完成的，而网络和多节点通信则通过支持10/100 Mbps传输速率的以太网通信接口完成。 IC754VSI12CTD由24VDC的外部电压电源供电，功耗低于48W。

IC754VSI12CTD is an operation panel manufactured by General Electric (GE) FANUC Automation. This operation panel is part of the QuickPanel Human Machine Interface (HMI) device. This HMI device is pre installed with the Microsoft Windows Compact Embedded (CE) operating system, which provides a configuration and maintenance interface that is familiar to any operator or user. It not only provides a user-friendly environment, but also provides standard Microsoft Windows commands and functions, such as File Transfer Protocol, Pocket Internet Explorer, remote access and browsing, PDF viewer and other commands.

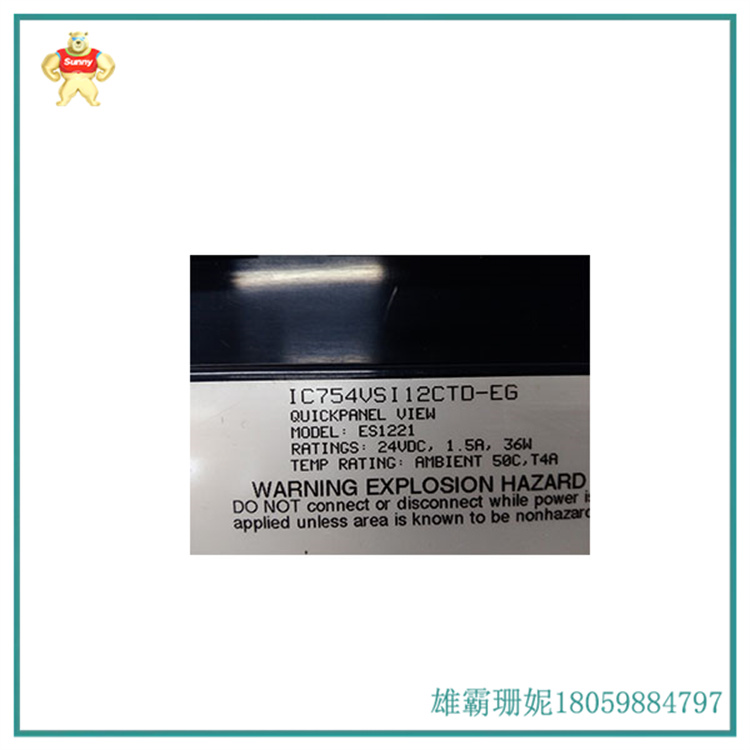

IC754VSI12CTD allows any operator or user to monitor or control connected machines or processes through provided monitors, touch input interfaces, and communication interfaces. In order to monitor the system, the 12 inch color thin film transistor (TFT) display screen provided can provide visualization of the process through customized design simulations. In addition, the color display screen supports color encoded animation and status display to improve information level. Control commands are input through touch sensing screens, allowing the operator to directly input commands by touching the corresponding runtime icon or object. Communication with the controller is achieved using a single RS232/RS485 combination port in a point-to-point or multipoint serial topology, while network and multi node communication is achieved through Ethernet communication interfaces that support a 10/100 Mbps transmission rate. IC754VSI12CTD is powered by an external voltage power supply of 24VDC, with a power consumption of less than 48W.
