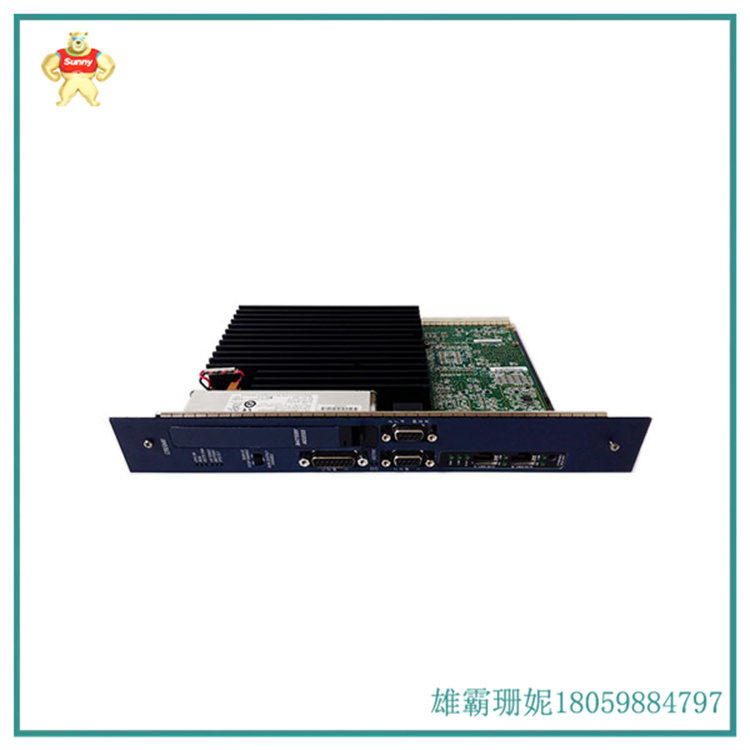

GE IC698CRE040-HN Rx7i 处理器

IC698CRE040是GE Fanuc / Emerson Automation Central Processing Unit （CPU）。此 CPU 支持高可用性或冗余配置。该模块是 PACSystem RX7i 可编程自动化控制器 （PAC） 平台的一部分。该CPU单元具有相对较高的分配随机存取存储器（RAM）和非易失性存储器，每个容量为64MB。此外，它还配备了一个高速微处理器，时钟速度为 1.8 GHz，每 0 个布尔触点/线圈的扫描速率为 024.1000ms。

IC698CRE040提供嵌入式通信端口，如两（2）个支持RS232和RS485通信标准的串行通信端口和两（2）个用于以太网连接的RJ45端口，支持10/100 Mbps半双工/全双工传输速率，具有自动感应功能。此 CPU 还配有一 （1） 个工作站管理器端口。串行端口支持的协议是Modbus RTU从站，SNP，串行I / O.此外，内置以太网接口能够使用以太网全局数据（EGD）进行数据交换，使用SRTP的TCP / IP通信服务，支持SRTP通道，Modbus / TCP服务器和Modbus / TCP客户端，完整的编程和配置服务，与以太网网络上的SNTP时间服务器的时间同步（与5.00

版或更高版本的CPU模块一起使用时）。以太网端口最多支持 16 个 Web 服务器和 FTP 连接。

该CPU支持梯形图，C，结构化文本和功能块图等编程语言。此 CPU 最多可下载 512 个块，每个块的最大大小为 128KB。

IC698CRE040 is a GE Fanuc/Emerson Automation Central Processing Unit (CPU). This CPU supports high availability or redundant configurations. This module is part of the PACSystem RX7i Programmable Automation Controller (PAC) platform. The CPU unit has relatively high allocated Random-access memory (RAM) and nonvolatile memory, each with a capacity of 64MB. In addition, it is equipped with a high-speed microprocessor with a clock speed of 1.8 GHz and a scanning rate of 024.1000ms per 0 Boolean contacts/coils.

IC698CRE040 provides embedded communication ports, such as two (2) serial communication ports that support RS232 and RS485 communication standards, and two (2) RJ45 ports for Ethernet connection, supporting 10/100 Mbps half duplex/full duplex transmission rate, with automatic sensing function. This CPU is also equipped with one (1) workstation manager port. The protocols supported by the serial port are Modbus RTU slave, SNP, serial I/O. In addition, the built-in Ethernet interface can use Ethernet global data (EGD) for data exchange, use SRTP TCP/IP communication services, support SRTP channels, Modbus/TCP servers and Modbus/TCP clients, complete programming and configuration services, and time synchronization with the SNTP Time server on the Ethernet network (with 5.00

When using CPU modules of version or higher together. The Ethernet port supports up to 16 web servers and FTP connections.

The CPU supports programming languages such as ladder diagrams, C, structured text, and functional block diagrams. This CPU can download up to 512 blocks, each with a maximum size of 128KB.
