GE IC698CPE030 中央处理单元

IC698CPE030是可编程自动化控制器（PAC）的PACSystem RX7i中最先进的中央处理器（CPU）之一。该 CPU 旨在满足行业的现代自动化、连接和集成要求。它以前由GE智能平台（GE IP）制造，但随着最近艾默生自动化的收购，PACSystem RX7i现在是后者的一部分。

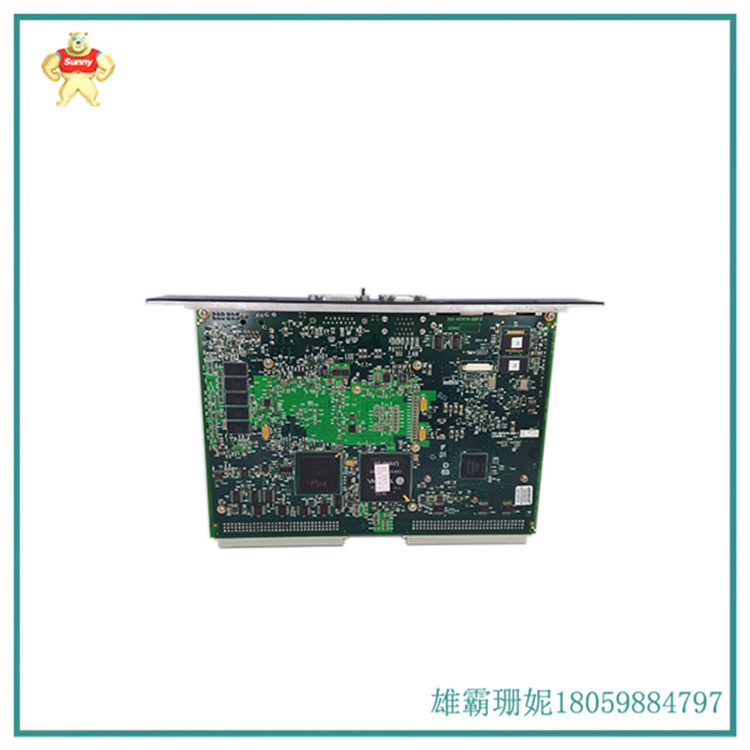

IC698CPE030处理器安装有计算机级微处理器，即600MHz奔腾-M微处理器，具有64 MB用户存储器和64 MB用户闪存。它的布尔执行速度为每 0 个布尔触点/线圈 069.1000ms。该 CPU 可容纳多达 32 K 位的离散 I/O 和 32 K 字的模拟 I/O。最多可以将 512 个程序块下载到此 CPU，其中每个程序块最多可以有 128 KB 内存。

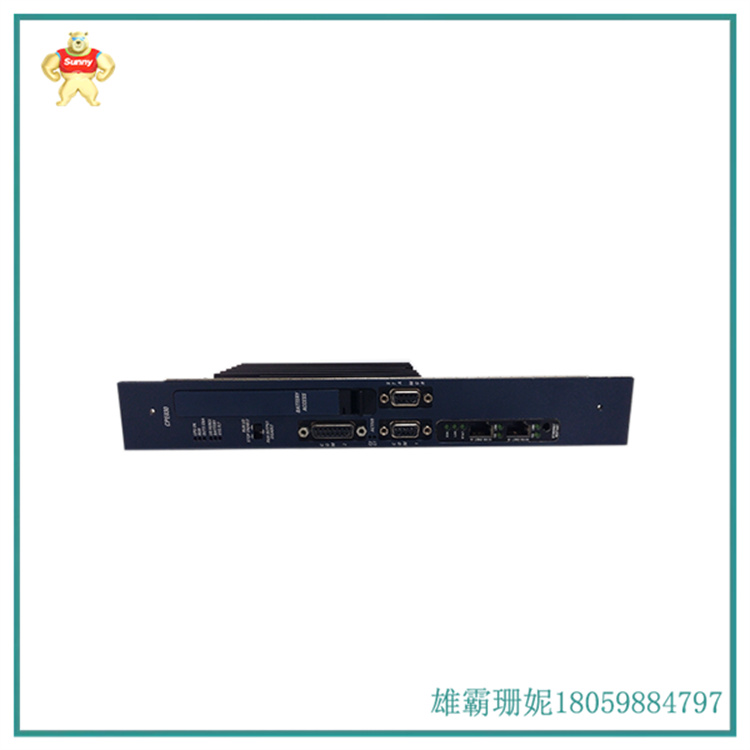

IC698CPE030还具有两（2）个以太网通信端口，能够自动感应网络传输速度，并可配置为半双工和全双工工作模式。内置的Web服务器和文件传输协议（FTP）功能可通过这些以太网端口访问，允许用户远程监控和配置处理器。除了内置以太网端口外，

该CPU还具有一（1）个RS232端口;一 （1） 个 RS485 端口和一 （1） 个工作站管理器端口。这些通信接口支持SRTP，Modbus TCP服务器和客户端，以太网全局数据（EGD）用于基于以太网的通信和Modbus RTU从站，SNP，串行I / O用于串行通信。

IC698CPE030 is one of the most advanced central processing units (CPUs) in the PACSystem RX7i of Programmable Automation Controllers (PACs). This CPU is designed to meet the modern automation, connectivity, and integration requirements of the industry. It was previously manufactured by GE Intelligent Platform (GE IP), but with the recent acquisition of Emerson Automation, PACSystem RX7i is now part of the latter.

The IC698CPE030 processor is equipped with a computer level microprocessor, namely a 600MHz Pentium M microprocessor, with 64 MB of user memory and 64 MB of user flash memory. Its Boolean execution speed is 069.1000ms per 0 Boolean contacts/coils. This CPU can accommodate up to 32 K bits of discrete I/O and 32 K words of analog I/O. A maximum of 512 program blocks can be downloaded to this CPU, with each program block having a maximum of 128 KB of memory.

IC698CPE030 also has two (2) Ethernet communication ports that can automatically sense network transmission speed and can be configured for half duplex and full duplex working modes. The built-in Web server and File Transfer Protocol (FTP) functions can be accessed through these Ethernet ports, allowing users to remotely monitor and configure processors. In addition to the built-in Ethernet port,

The CPU also has one (1) RS232 port; One (1) RS485 port and one (1) workstation manager port. These communication interfaces support SRTP, Modbus TCP servers and clients, Ethernet Global Data (EGD) for Ethernet based communication, and Modbus RTU slave stations, SNP, and serial I/O for serial communication.
