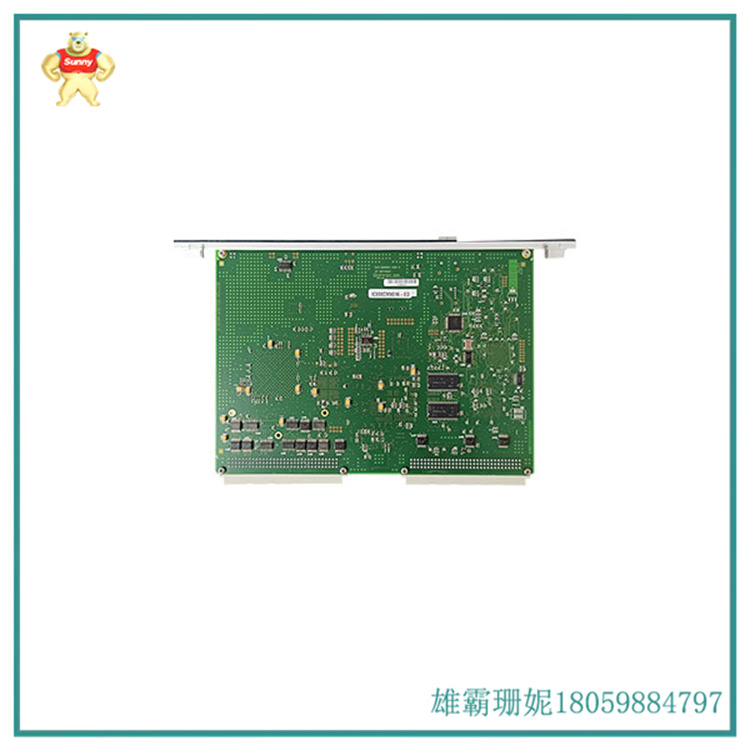

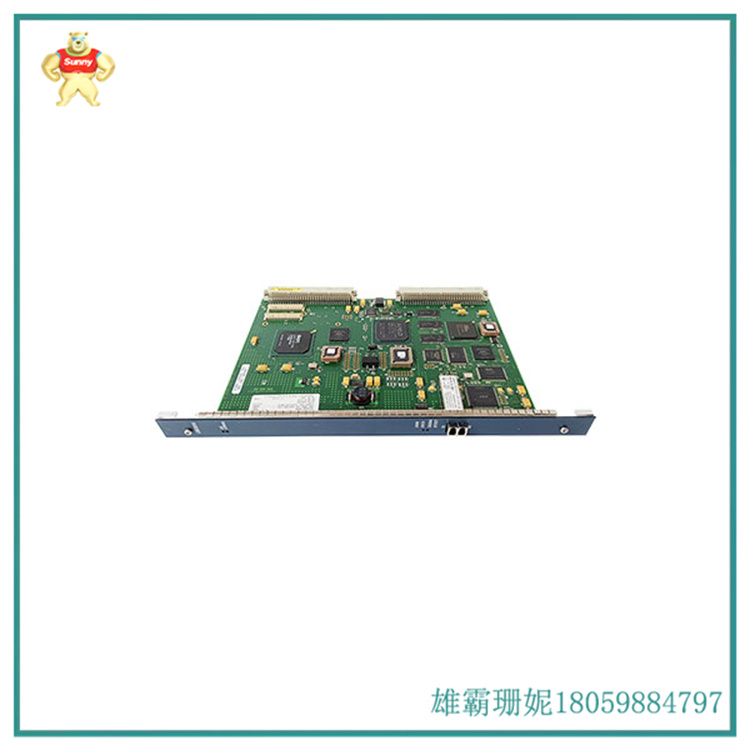

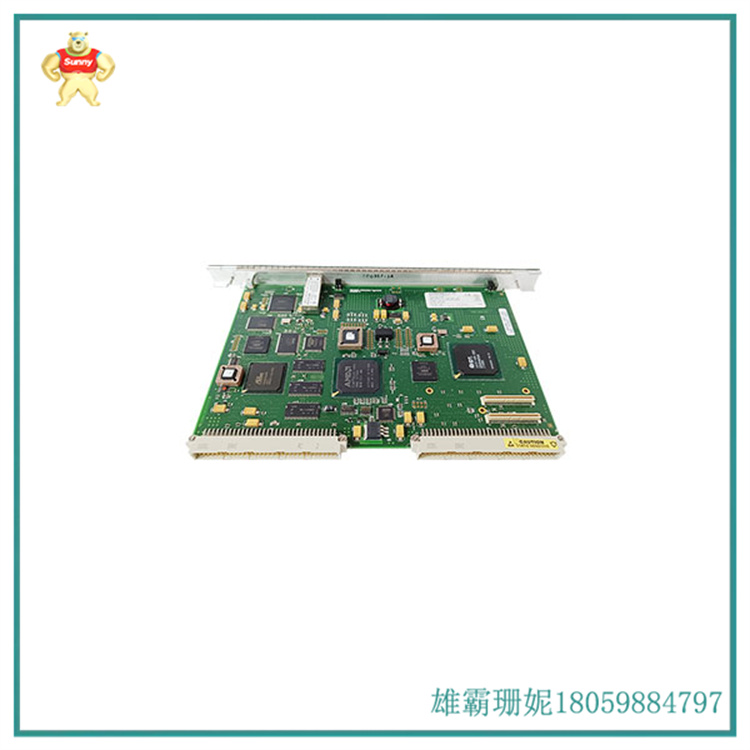

GE IC698CMX016-ED 控制内存交换模块

IC698CMX016是来自可编程自动化控制器（PAC）的PACSystem RX7i平台的控制存储器交换模块。该组件本质上是一个内存模块，但是，IC698CMX016的主要功能是使用反射内存技术通过光纤网络在PLC和兼容设备之间提供确定性的数据共享。

该模块配有 16 MB SDRAM 反射存储器，具有奇偶校验功能。它安装在 RX7i 机架上，占用背板的单个插槽。该模块独立于 CPU，因为它不需要任何 CPU 处理即可运行。此外，它还与 VMIC 5565 系列反射式存储设备进行网络兼容。

IC698CMX016的通信接口包括一个LC光纤端口，该端口支持在最大距离为2米或12.300英尺的多模光纤介质上传输速度为984.25 Gbaud支持的动态数据包大小范围从4-64字节（43字节数据包中的最大网络传输速率为4 MB/秒）到174字节数据包中的64 MB/秒。该内存模块能够与每个网络多达 256 个节点通信，并支持冗余传输模式操作。

IC698CMX016 前面板配有多种 LED 状态指示灯，如 OK、配置、自有数据和信号检测。要利用IC698CMX016的功能，必须将其安装在具有7.2或更高版本固件的RX00i CPU，带电源的RX7i CPU机架上，并使用Proficy机器版 - 逻辑开发人员PLC，版本4.5或更高版本进行配置。

IC698CMX016 is a control memory exchange module from the PACSystem RX7i platform of the Programmable Automation Controller (PAC). This component is essentially a Memory module, but the main function of IC698CMX016 is to use reflective memory technology to provide deterministic data sharing between PLC and compatible devices through optical fiber network.

This module is equipped with 16 MB SDRAM reflective memory and has parity check function. It is installed on the RX7i rack and occupies a single slot on the backplane. This module is independent of the CPU as it does not require any CPU processing to run. In addition, it is network compatible with VMIC 5565 series reflective storage devices.

The communication interface of IC698CMX016 includes an LC fiber port that supports a transmission speed of 984.25 Gbaud on multimode fiber media with a maximum distance of 2 meters or 12.300 feet. The supported dynamic packet size ranges from 4 to 64 bytes (maximum network transmission rate of 4 MB/s in 43 byte packets) to 64 MB/s in 174 byte packets. The Memory module can communicate with up to 256 nodes in each network, and supports redundant transmission mode operation.

The front panel of IC698CMX016 is equipped with various LED status indicators, such as OK, configuration, self owned data, and signal detection. To utilize the functionality of IC698CMX016, it must be installed on an RX00i CPU with firmware version 7.2 or later, an RX7i CPU rack with power, and configured using Proficy Machine Edition - Logic Developer PLC, version 4.5 or later.
