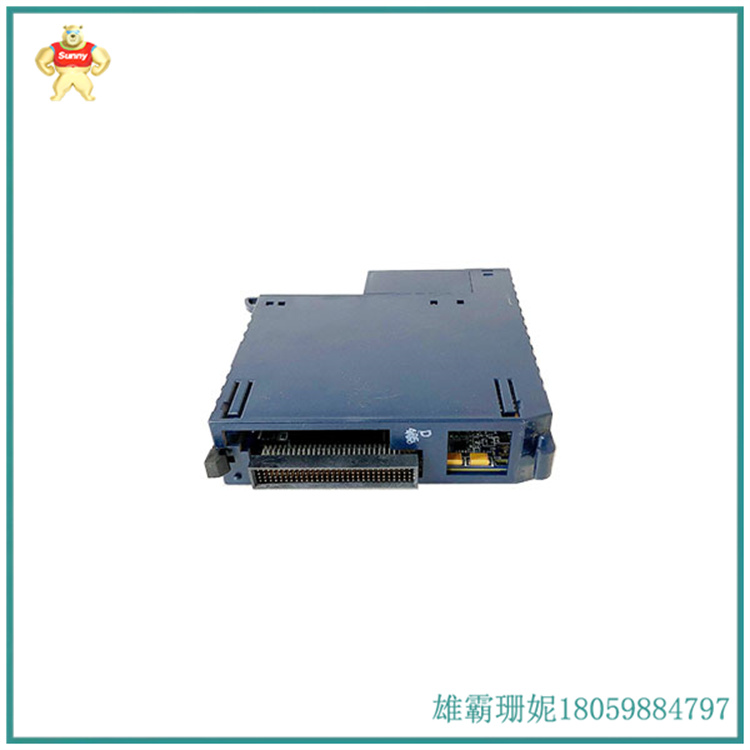

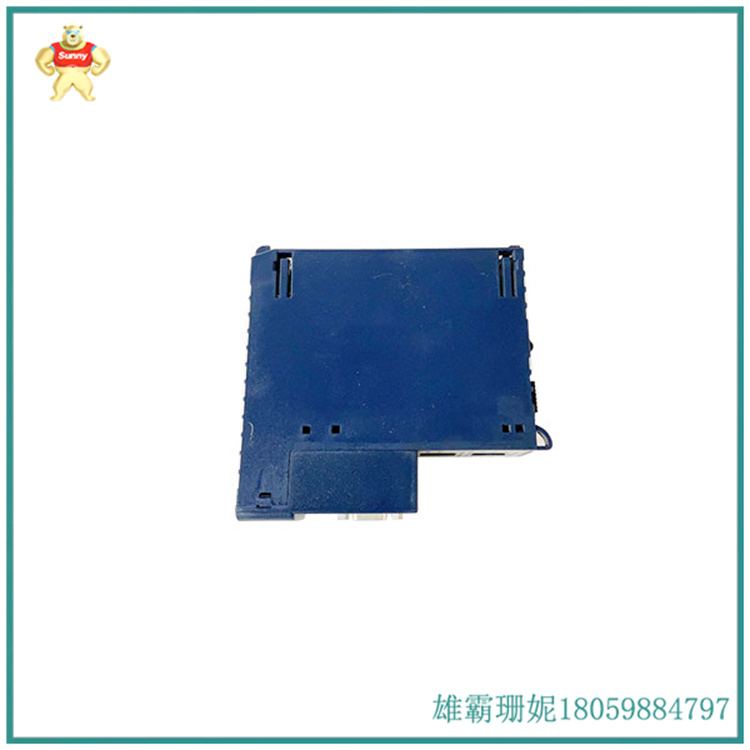

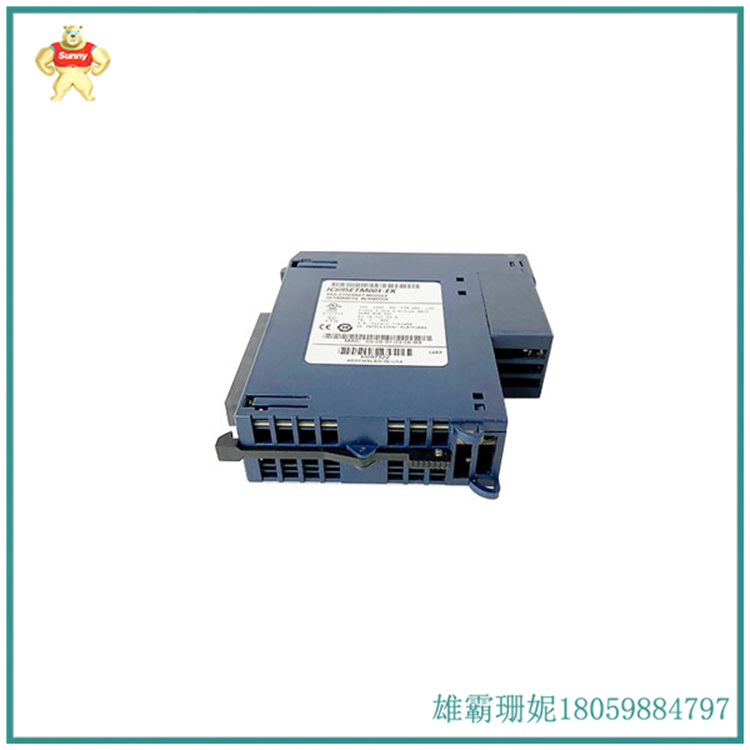

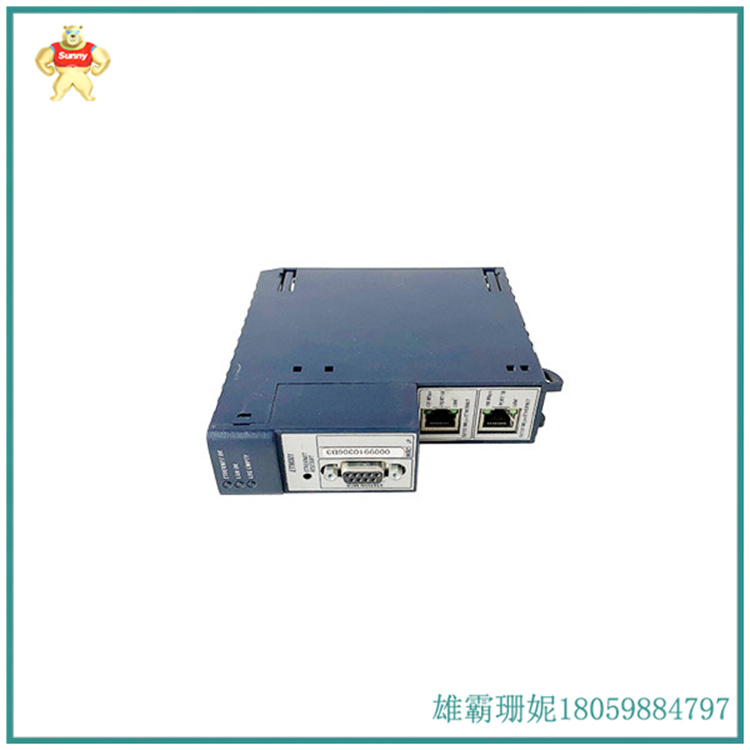

GE IC695ETM001-EK 以太网接口模块

IC695ETM001是由GE制造的PACSystem Rx31模块，最近被艾默生收购。IC695ETM001 是一款两 （2） 端口以太网发送器模块，可实现以太网连接，支持 10/100 Mbps 传输速率和自动协商功能。

IC695ETM001 是一个单插槽模块，适合 RX3i 插槽。它使 PACSystem 能够与其他控制器平台（如 90 系列和 VersaMax 控制器）进行通信。该模块能够通过四层 TCP/IP（互联网）堆栈执行服务请求传输协议 （SRTP）、Modbus TCP 和以太网全局数据 （EGD） 协议。

该以太网变送器模块支持通过以太网全局数据进行定期数据交换，执行EGD命令来读写控制器。它还支持使用串行实时传输协议（SRTP）和SRTP通道的TCP / IP服务，能够充当MODBUS TCP服务器和MODBUS TCP客户端。它有一个嵌入式开关，可以配置为自动协商、检测、速度和交叉检测。此模块还可用于以太网 TCP/IP 上与 SNTP 时间服务器的时间同步。

IC695ETM001 的以太网处理器速度为 200 MHz。它配有 LED 状态指示灯，例如以太网 OK、LAN OK、LOG 空、单个端口和速度 LED 状态指示灯。

IC695ETM001 is a PACSystem Rx31 module manufactured by GE and recently acquired by Emerson. IC695ETM001 is a two (2) port Ethernet transmitter module that enables Ethernet connectivity and supports 10/100 Mbps transmission rate and automatic negotiation function.

IC695ETM001 is a single slot module suitable for RX3i slots. It enables PACSystem to communicate with other controller platforms such as the 90 series and VersaMax controllers. This module is capable of executing Service Request Transfer Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols through a four layer TCP/IP (Internet) stack.

The Ethernet transmitter module supports regular data exchange through Ethernet global data, executing EGD commands to read and write to the controller. It also supports TCP/IP services using Serial Real Time Transfer Protocol (SRTP) and SRTP channels, and can serve as MODBUS TCP servers and MODBUS TCP clients. It has an embedded switch that can be configured for automatic negotiation, detection, speed, and cross detection. This module can also be used for time synchronization between Ethernet TCP/IP and SNTP Time server.

The Ethernet processor speed of IC695ETM001 is 200 MHz. It is equipped with LED status indicators, such as Ethernet OK, LAN OK, LOG empty, individual port, and speed LED status indicators.
