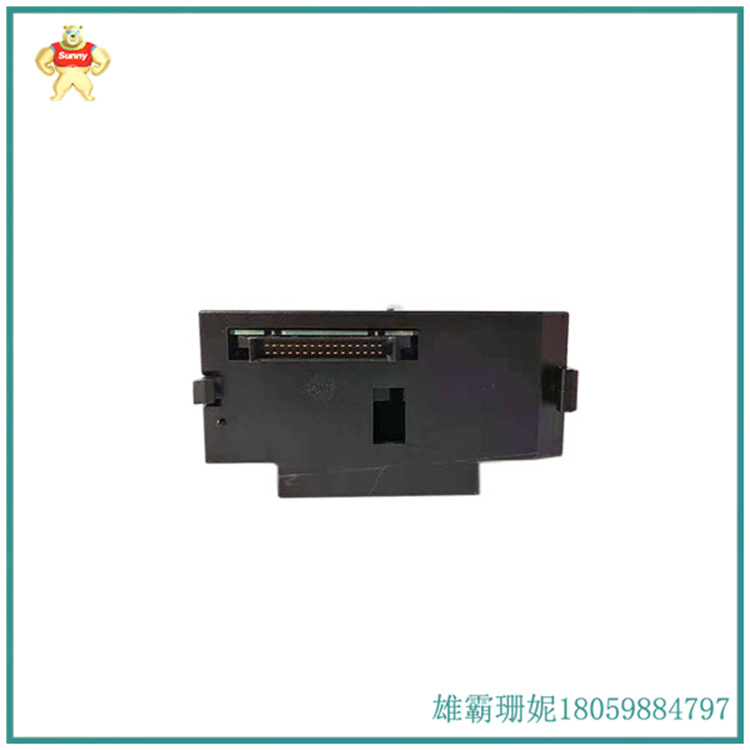

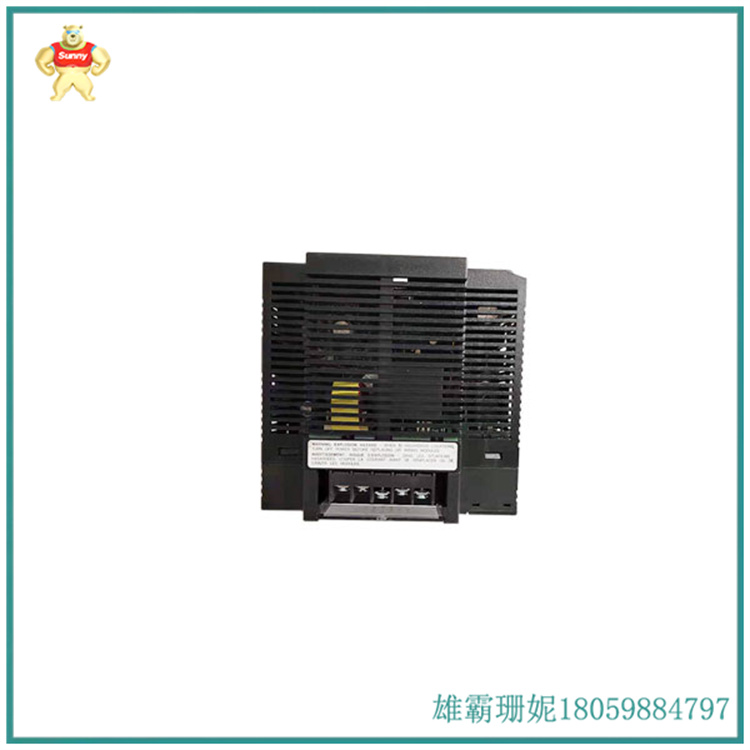

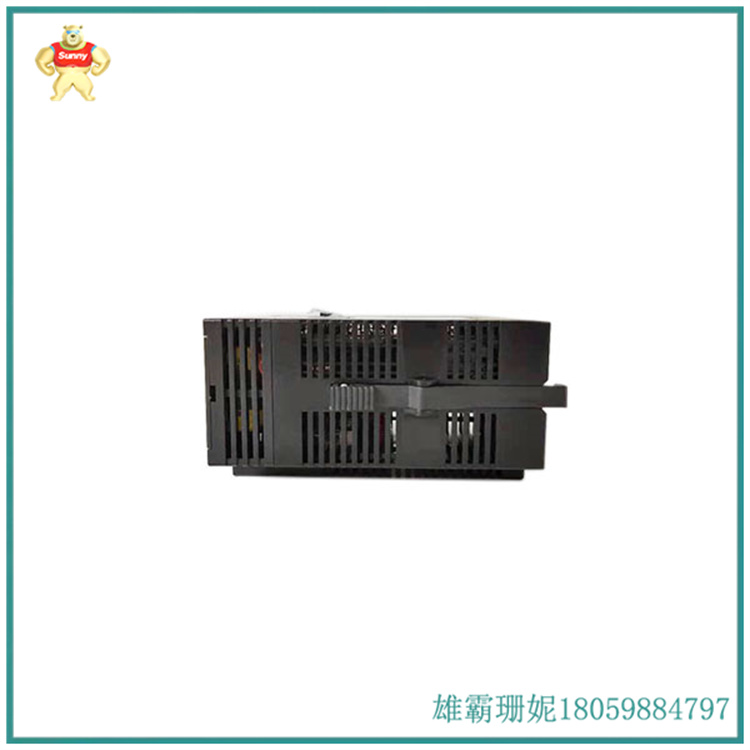

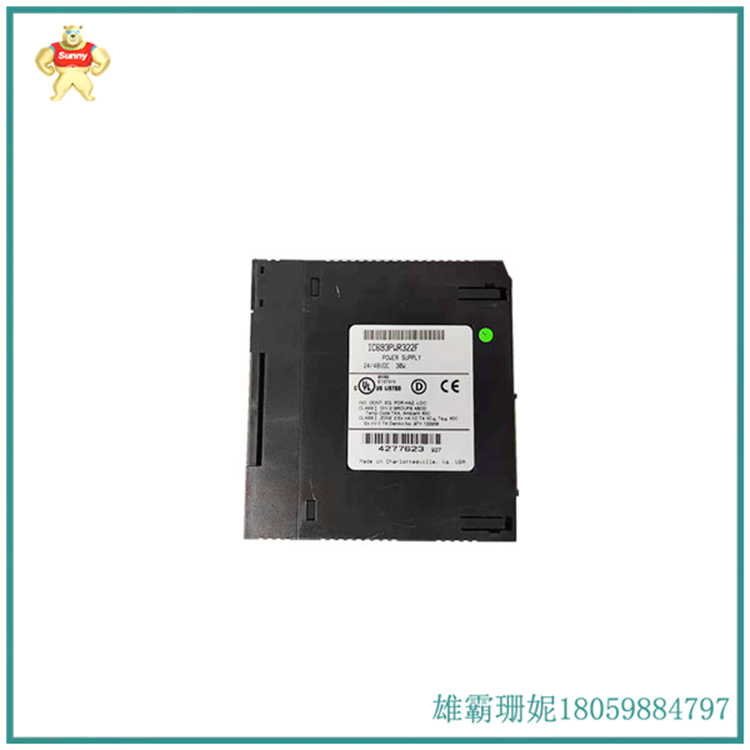

GE IC693PWR322F 标准电源

GE Fanuc IC693PWR322是标准电源。该电源是 30 瓦电源，需要 24 至 48 VDC 的输入电源电压。该电源具有三 （3） 路输出，例如 +5VDC;+24VDC隔离和+24VDC继电器输出。

每个电源输出都有特定的功能。+5VDC 输出用于背板电源，而 +24 VDC 继电器电源用于为 90-30 系列继电器模块上的电路提供输出电源。连接到 24-90 背板的一些模块使用 +30VDC 隔离，还为 24VDC 90-30 输入模块提供外部电源。

IC693PWR322 电源具有四 （4） 个状态指示灯，如 PWR LED、OK LED、RUN LED 和 BATT LED。它还具有一 （1） 个 RS485 通信端口，这是一个 9 针子 D 连接器。该端口允许连接编程工作站，GE Fanuc手持编程和其他与RS485通信标准兼容的设备。

GE Fanuc IC693PWR322 is a standard power supply. This power supply is a 30 watt power supply that requires an input power voltage of 24 to 48 VDC. This power supply has three (3) outputs, such as+5VDC+ 24VDC isolation and+24VDC relay output.

Each power output has a specific function+ The 5VDC output is used for the backplane power supply, while the+24 VDC relay power supply is used to provide output power for the circuits on the 90-30 series relay modules. Some modules connected to the 24-90 backplane use+30VDC isolation and also provide external power to the 24VDC 90-30 input modules.

The IC693PWR322 power supply has four (4) status indicator lights, such as PWR LED, OK LED, RUN LED, and BATT LED. It also has one (1) RS485 communication port, which is a 9-pin sub D connector. This port allows connection to programming workstations, GE Fanuc handheld programming, and other devices compatible with RS485 communication standards.
