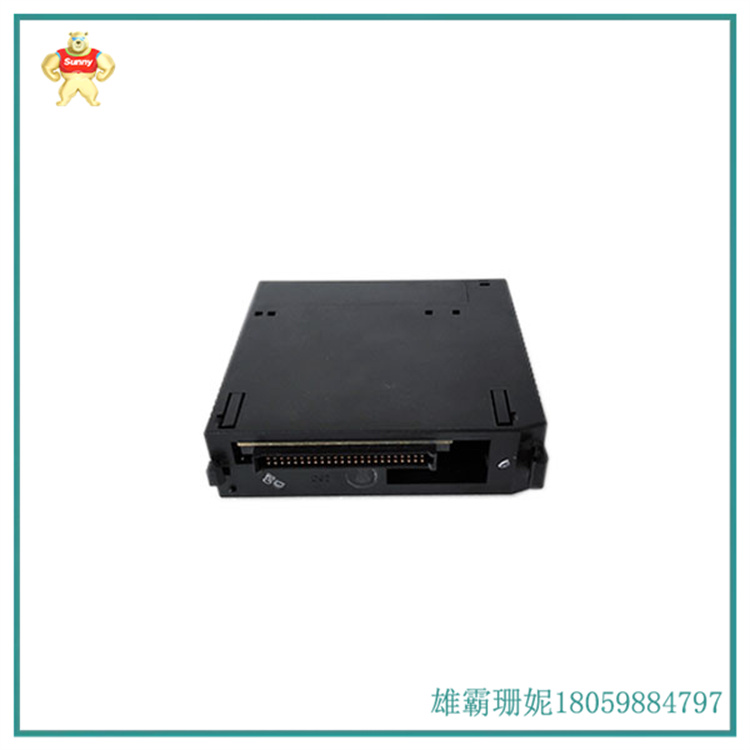

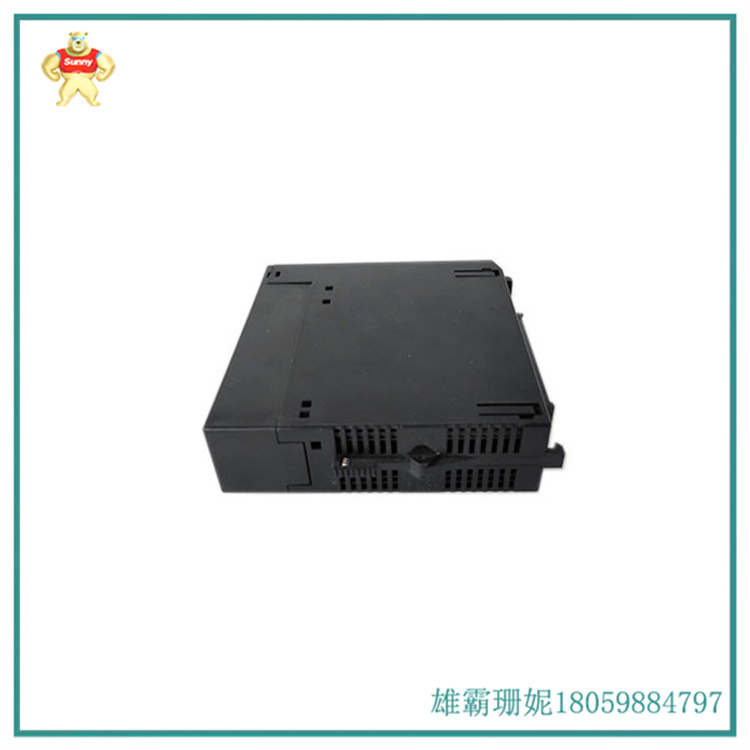

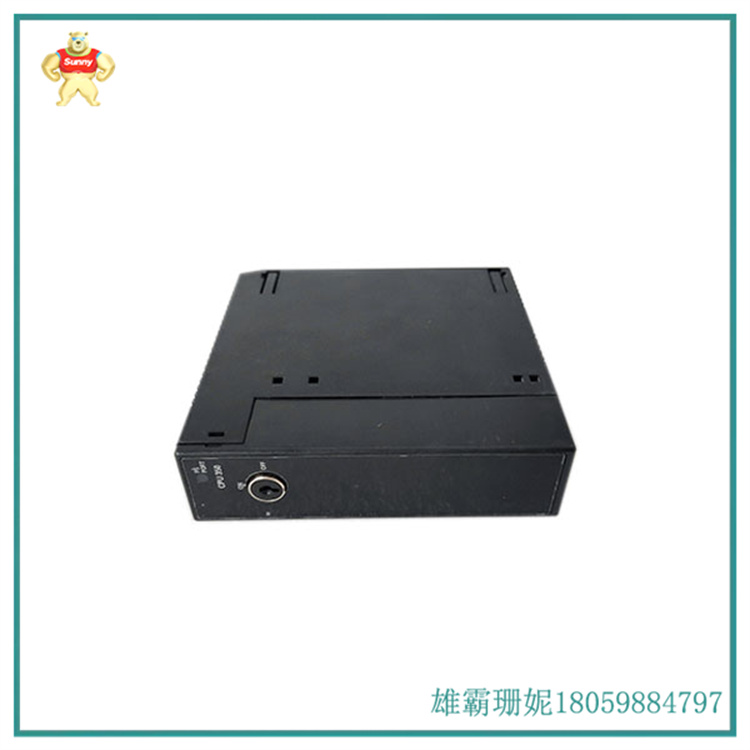

GE IC693CPU350-BC 控制器

IC693CPU350是GE发那科90-30系列控制器。该控制器是模块化控制系统的一部分，具有单插槽宽模块，能够控制多达八 （8） 个底板，包括安装 CPU 的本地底板。

IC693CPU350设计有32K字节的不可配置用户存储器。多达 2048 个离散输入、2048 个离散输出、2048 个模拟输入字和 512 个模拟输出字。这种 I/O 计数密度使该控制器有资格安装在大中型应用中。

IC693CPU350没有通信端口。该控制器利用安装在电源中的通信端口，其RS485通信接口允许连接到编程工作站，手持编程器（HHP）和能够通过RS485通信标准交换数据的设备。此端口支持 SNP/SNP-X 从属协议。

IC693CPU350使用多种选项进行配置。它可以使用LogicMaster90，Control，VersaPro和CIMPLICITY Machine Edition Logic Developer应用软件应用程序进行配置。此外，可以使用传统的手持式编程器 （HHP） 将程序写入此控制器。

IC693CPU350 is a GE FANUC 90-30 series controller. This controller is part of a modular control system with a single slot wide module that can control up to eight (8) backplanes, including a local backplane for installing CPUs.

IC693CPU350 is designed with 32K bytes of non configurable user memory. Up to 2048 discrete inputs, 2048 discrete outputs, 2048 analog input words, and 512 analog output words. This I/O count density qualifies the controller for installation in large and medium-sized applications.

IC693CPU350 does not have a communication port. This controller utilizes a communication port installed in the power supply, and its RS485 communication interface allows connection to programming workstations, handheld programmers (HHPs), and devices capable of exchanging data through the RS485 communication standard. This port supports the SNP/SNP-X slave protocol.

IC693CPU350 uses multiple options for configuration. It can be configured using LogicMaster90, Control, VersaPro, and CIMPLICITY Machine Edition Logic Developer application software applications. In addition, a traditional handheld programmer (HHP) can be used to write programs to this controller.
