IS200TTPWH1A  |    IS200TSVCH1A  |   IIS200TRTDH1D 电路板

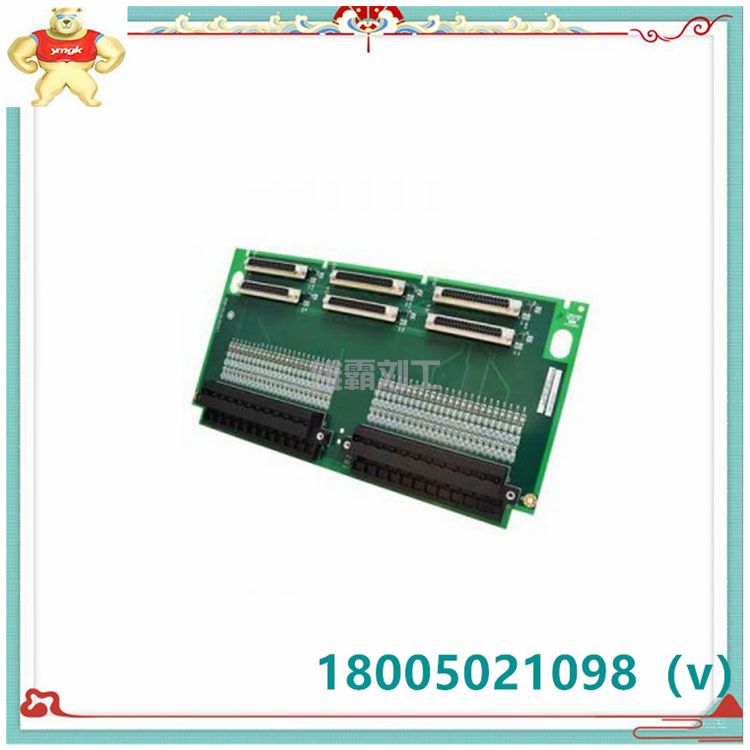

型号：IS200TTPWH1A

类别： 电路板

成色：全新，非全新

质保：一年

品牌：GE

关于IS200TTPWH1A

IS200TTPWH1A装置是由通用电气创建和分发的电路板，作为其 Mark VI SPEEDTRONIC 系列涡轮控制系统机器和适用产品的一部分。 AX Control 试图保持IS200TTPWH1A板的库存，即使它多年来已成为过时的产品

定义：IS200TTPWH1A 电路板是一种用于连接和支持电子元件的基板，由一层或多层绝缘材料和导电材料构成。它通过预先设计好的导电路径，将电子元器件按照电路原理连接在一起，从而实现电子设备的功能。

分类：

按材料特性分类：电路板主要分为柔性板(FPC)、硬板(PCB)和软硬结合板(Rigid-Flex PCB)。

柔性板(FPC)：具有配线密度高、重量轻、厚度薄、弯折性好的特点。

硬板(PCB)：广泛地应用在电子产品的生产制造中。

软硬结合板(Rigid-Flex PCB)：整合了FPC与PCB的特性，但生产工序繁多，良品率较低，生产难度大，生产周期较长。

按铜箔层数分类：单面板、双面板和多层板。

单面板：导线只出现在其中一面，制作简单，造价低，但无法应用于太复杂的产品上。

双面板：两面都有覆铜和走线，并通过过孔导通两层之间的线路。

多层板：具有三层以上的导电图形层，常用于高速度、多功能、大容量、小体积、薄型化、轻量化的电子产品中。

Model: IS200TTPWH1A

Category: Circuit Board

Finish: New, not new

Warranty: One year

Brand: GE

About IS200TTPWH1A

The IS200TTPWH1A device is a circuit board created and distributed by General Electric as part of its Mark VI SPEEDTRONIC family of turbine control system machines and applicable products. AX Control tried to keep the IS200TTPWH1A board in stock, even though it had become obsolete over the years

Definition: The IS200TTPWH1A circuit board is a substrate for connecting and supporting electronic components, consisting of one or more layers of insulating material and conductive material. It connects electronic components together according to the circuit principle through a pre-designed conductive path, so as to realize the functions of electronic devices.

Categories:

According to the material characteristics, the circuit board is mainly divided into flexible board (FPC), hard board (PCB) and Rigid board (rigid-Flex PCB).

Flexible plate (FPC) : with high wiring density, light weight, thin thickness, good bending characteristics.

Hard board (PCB) : widely used in the manufacture of electronic products.

Rigid board (Rigid-Flex PCB) : integrates the characteristics of FPC and PCB, but there are many production processes, low yield, difficult production, and long production cycle.

Classification by the number of copper foil layers: single panel, double panel and multi-layer board.

Single panel: The wire only appears on one side, which is simple to make and low in cost, but can not be applied to too complex products.

Dual panels: Both sides are covered with copper and wiring, and the lines between the two layers are routed through holes.

Multilayer board: with more than three layers of conductive graphic layer, often used in high speed, multi-function, large capacity, small volume, thin, lightweight electronic products.
