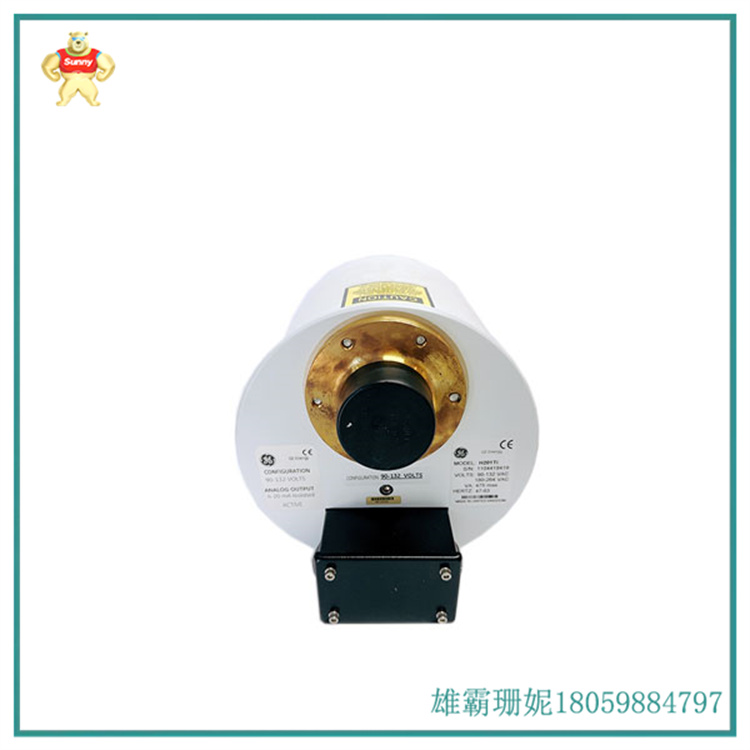

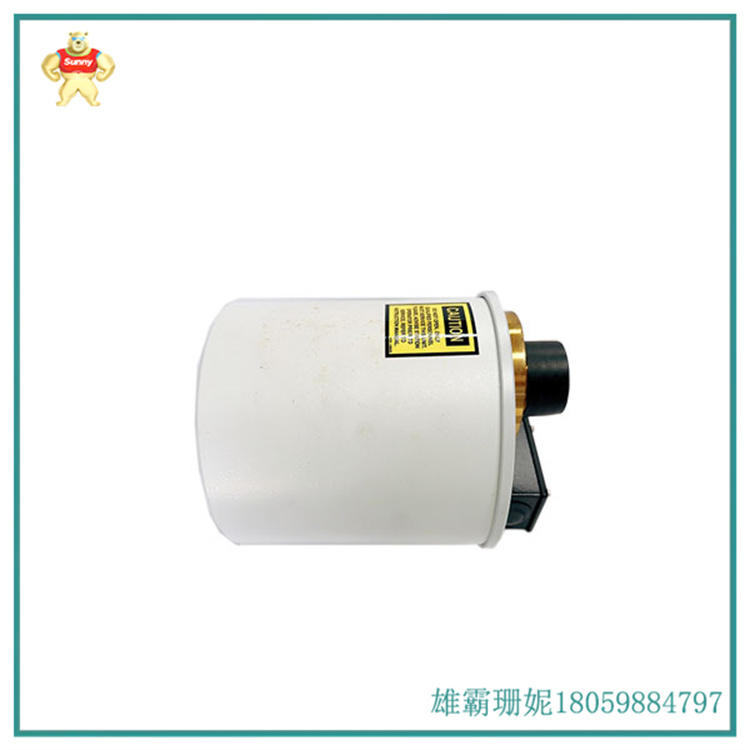

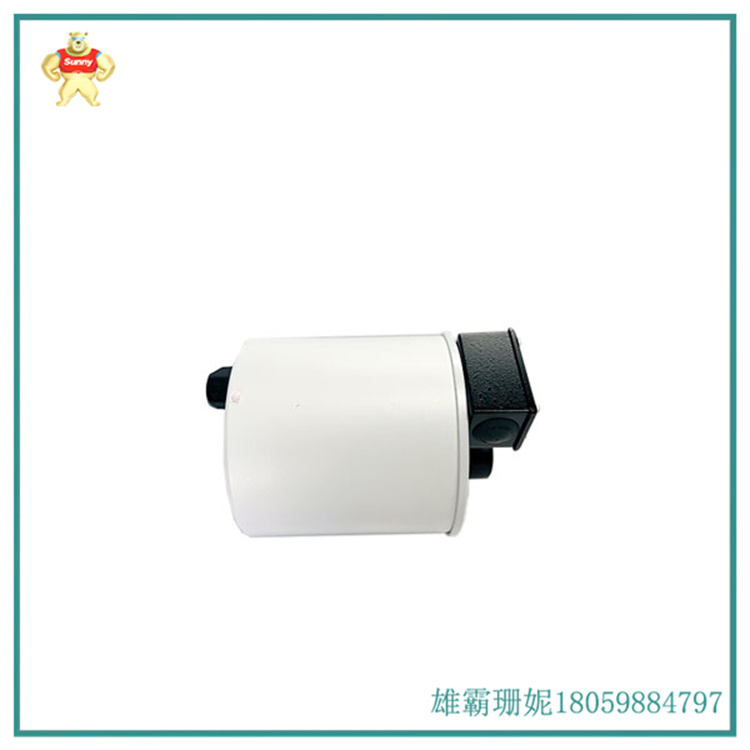

GE H201TI  分析(DGA)监控器

HydranTM 201Ti是一款体积小、 易于安装的连续油中溶解气分析(DGA)监控器。它提供了IEEE⑧标准C57.104所使用的基本信息，可以作为基本的第一个为车队中的变压器提供防线，以获得故障条件的预先警告最小化计划外停机的风险。201Ti的复合气体传感器使用燃料电池提供世界著名的"Hydran气体值"技术(描述为固定仪器。标准中的方法3)。它对氢的反应是100%(一般故障气体)，也敏感-氧化碳(过热的纸张)， 乙炔(电弧)和Z 烯(油过热)，从而覆盖了所有主变压器故障的根本原因。由于监测单元安装在单个阀门上，并使用动态油采样，因此不存在需要一个泵 或额外的管道连接到不同的阀门。于其不复杂的特点和它提供了易于理解的信息，201Ti记成为监视器的选择之一多年来, 拥有最大的安装基础的任何监视器之-。随着最新的马克IV版本，Hydran 201Ti显示器已经完全大改新的电子电路板和电源，使其符合RoHS，解决任何过时的问题和进一步提高这-时间证明产品。 它现在提供了额外的功能，如:

改进的传感器

●Modbus⑧协议通信隔离RS- 485

●本地USB端口，以取代RS-232端口不再在大多数现场笔记本电脑

●慊容GE矿受好评的PerceptionTM Fleet软件下载，趋势和分析数据，与任何其他GE DGA监控设备样

HydranTM 201Ti is a small and easy to install continuous dissolved gas analysis (DGA) monitor in oil. It provides the basic information used in IEEE ⑧ standard C57.104, which can serve as the first basic line of defense for transformers in the fleet to obtain pre warning of fault conditions and minimize the risk of unplanned downtime. The composite gas sensor of 201Ti uses fuel cells to provide the world-renowned "Hydran gas value" technology (described as a fixed instrument. Method 3 in the standard). Its reaction to hydrogen is 100% (general fault gas), and it is also sensitive to carbon oxide (overheated paper), acetylene (arc), and Z-ene (overheated oil), thus covering the root cause of all main transformer faults. Due to the installation of the monitoring unit on a single valve and the use of dynamic oil sampling, there is no need for a pump or additional pipeline connection to different valves. Due to its uncomplicated characteristics and the easy to understand information it provides, 201Ti has become one of the monitor choices for many years and has the largest installation foundation of any monitor. With the latest Mark IV version, the Hydran 201Ti monitor has undergone a complete overhaul of its electronic circuit board and power supply, making it RoHS compliant, addressing any outdated issues and further improving this time proven product. It now provides additional features such as:

Improved sensors

Modbus ⑧ protocol communication isolation RS-485

● Local USB port to replace RS-232 port no longer available on most on-site laptops

● Download, trend, and analyze data using the award-winning PerceptionTM Fleet software from GE Mining, similar to any other GE DGA monitoring device
