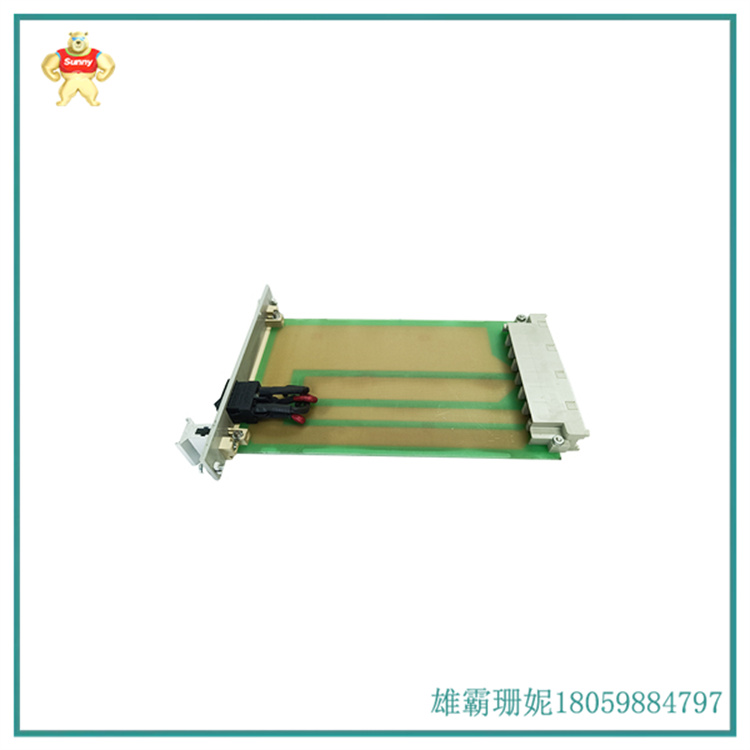

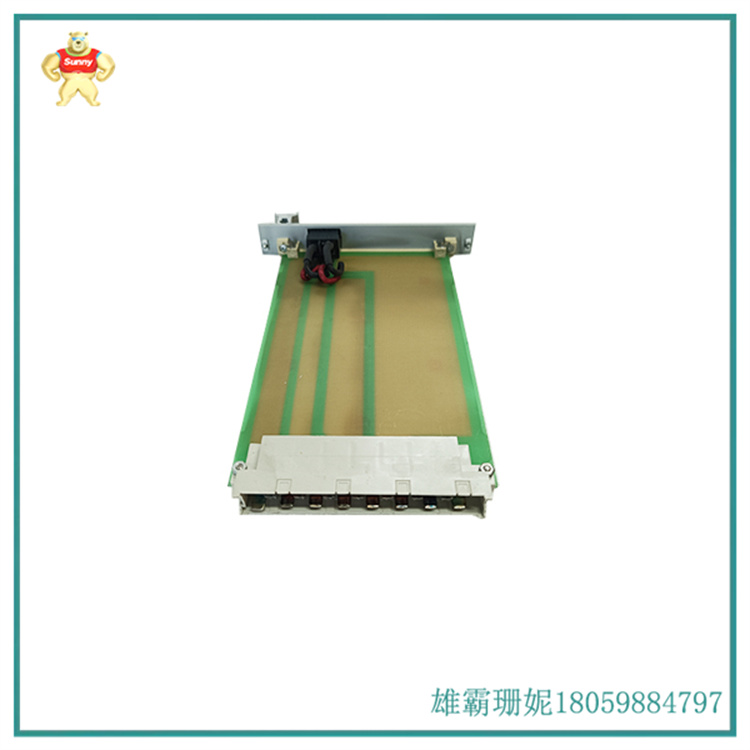

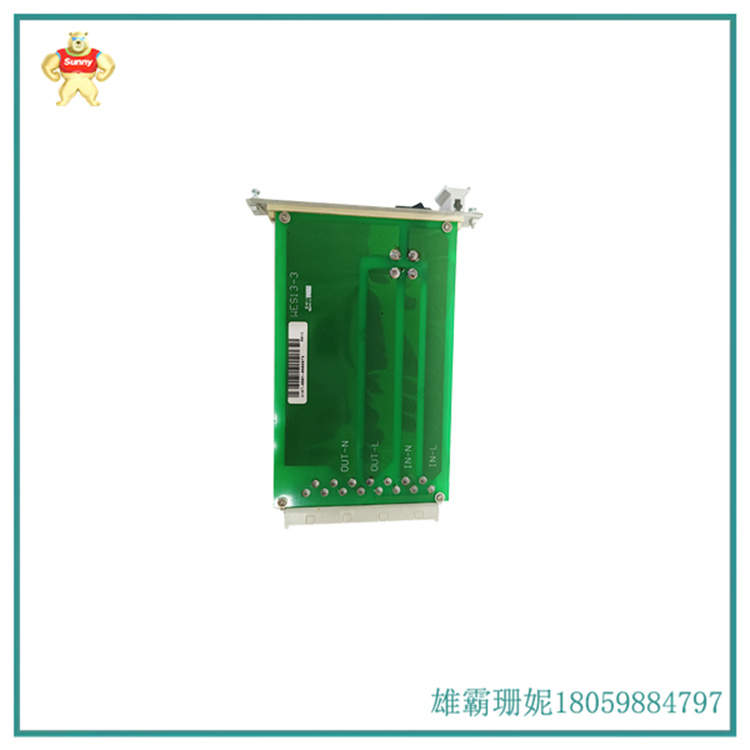

GE WES13-3 调压装置主控板

它还具有四个端子，最多可连接十二根信号线。GE接触器测试板DS200CPCAG1A还包含一个24VDC插座功率继电器。由于电路板有端子,维修人员必须拆下与其相连的电

线，这需要特别考虑。端子允许将信号电缆连接到电路板进行处理。一些电线从电路板传输信号。其他电线接收电路板处理的信号.使用螺丝纫时必须小心，不要通过报废组件或用螺丝刀敲击它们来损坏驱动器中的其他组件。制作-个图表，显电线在端子上的连接位置,每个电线端子都有-个字母和数字标识符。使用相同的图表记录其他电缆的连接位置。

It also has four terminals and can connect up to twelve signal wires. The GE contactor test board DS200CPCAG1A also includes a 24VDC socket power relay. Due to the presence of terminals on the circuit board, maintenance personnel must remove the electrical components connected to it

Line, this requires special consideration. The terminal allows the signal cable to be connected to the circuit board for processing. Some wires transmit signals from the circuit board. Other wires receive signals processed by the circuit board. When using screws, care must be taken not to damage other components in the driver by scrapping them or tapping them with a screwdriver. Create a chart showing the connection position of wires on terminals, with each wire terminal having a letter and numerical identifier. Use the same chart to record the connection positions of other cables.
