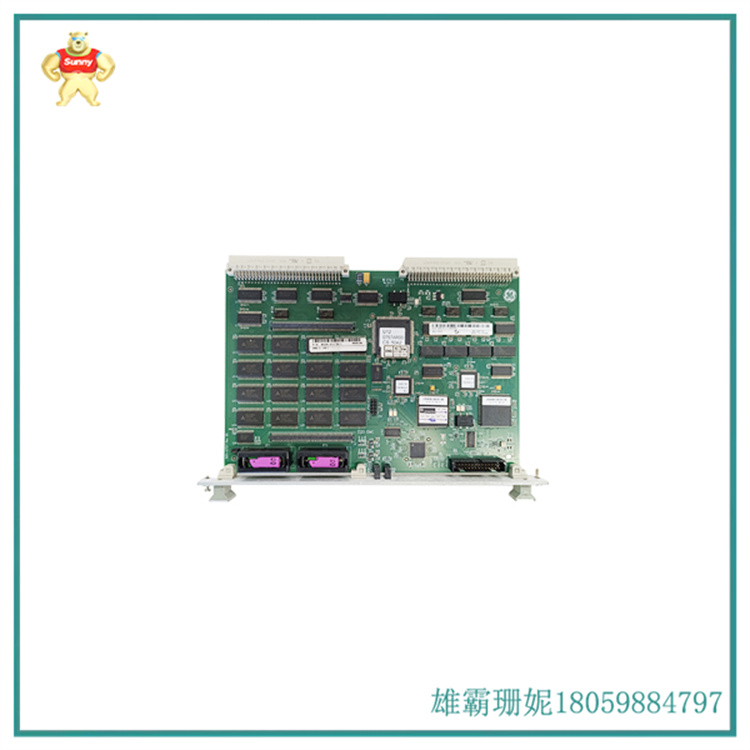

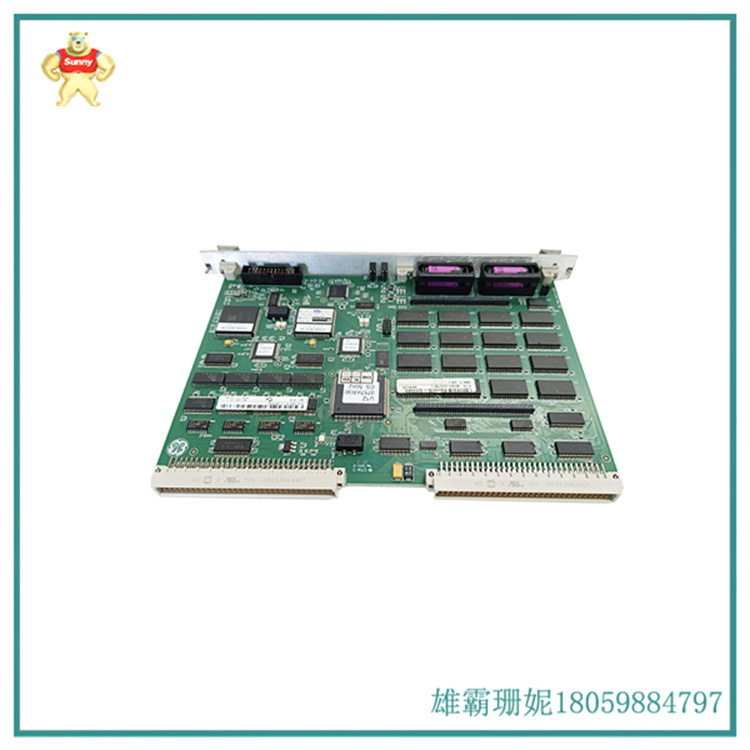

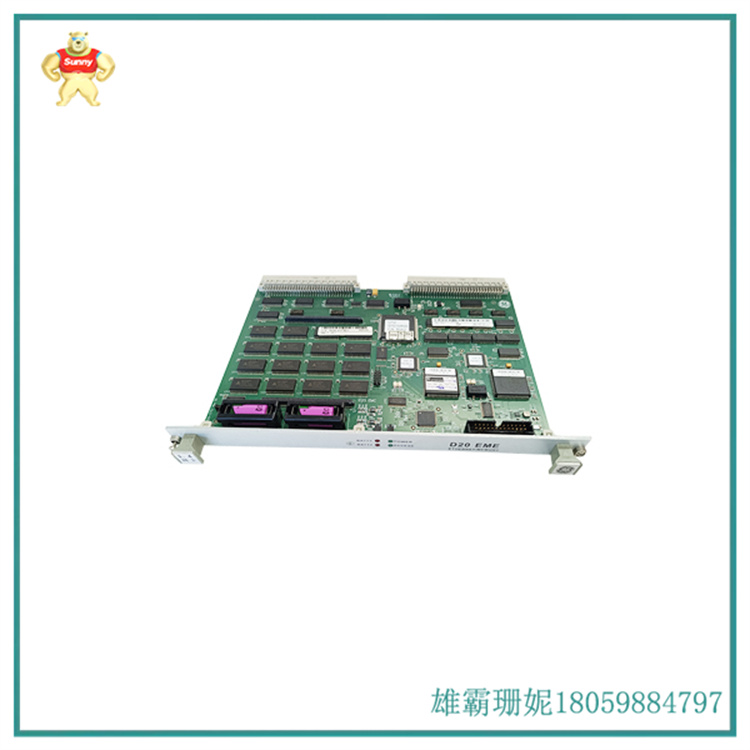

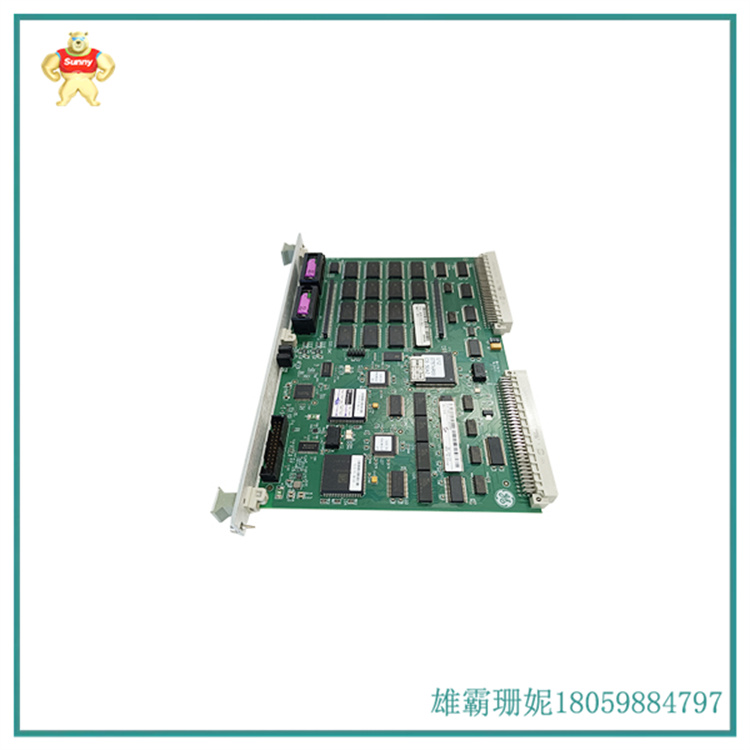

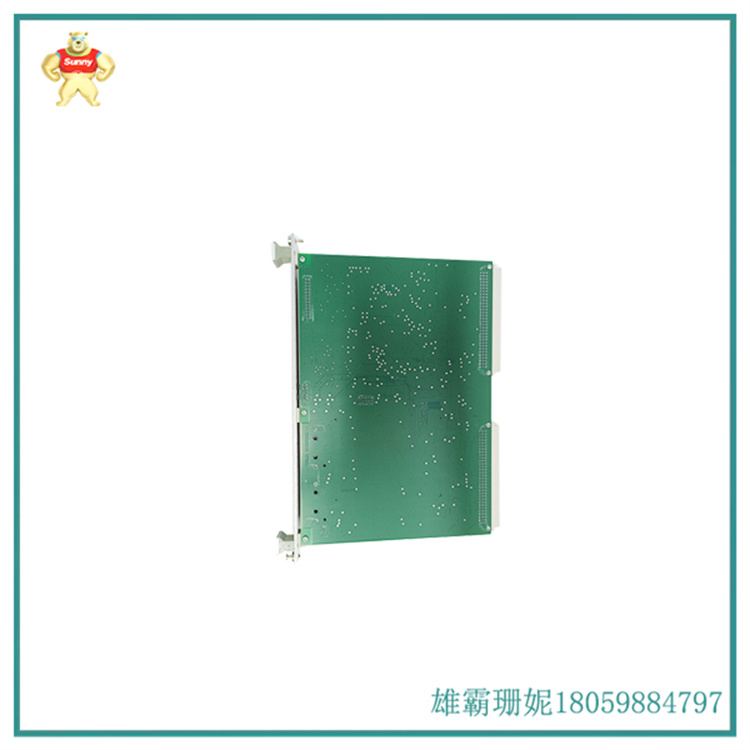

GE D20 EME 变电站控制器

DCS分为I/O板控制器、通信网络和人机界面(HMI) 三部分。I/0板通过 端子板直接连接到生产过程，从传感器读取信号。有几种不同类型的I/0板，每种类型的/0板都有

相应的端子板。

I模拟输入，4-20MA标准信号板和毫伏信号板，用于读取热电偶;4-16个通道不同;

|模拟输出，-般为4- 20毫安标准信号，一 般其通道比较小，每通道48个;

|开关星输入;16-32通道:

开关量输出,开关量输入输出也分为不同电压等级的板子，如直流24伏、125伏;交流 220伏或115伏等8-16个通道不同;

I脉冲音量输入，用于信号采集速率;4-8个通道不相等;

I快速中断输入;

IHART协议输入板;

|现场总线I/O板;

DCS is divided into three parts: I/O board controller, communication network, and human-machine interface (HMI). The I/O board is directly connected to the production process through a terminal board and reads signals from sensors. There are several different types of I/O boards, and each type of I/O board has

Corresponding terminal board.

I analog input, 4-20MA standard signal board and millivolt signal board for reading thermocouples; 4-16 channels are different;

|Analog output, typically 4-20 milliampere standard signal, with relatively small channels of 48 per channel;

|Switching star input; 16-32 channels:

Switch output, switch input and output are also divided into boards with different voltage levels, such as DC 24V and 125 V; 8 to 16 different channels such as 220 V or 115 V AC;

I pulse volume input, used for signal acquisition rate; 4-8 channels are not equal;

I fast interrupt input;

IHART protocol input board;

|Fieldbus I/O board;
