IC693CPU363LT |   90-30 系列处理器模块  支持 RS232 和 RS485 通信标准

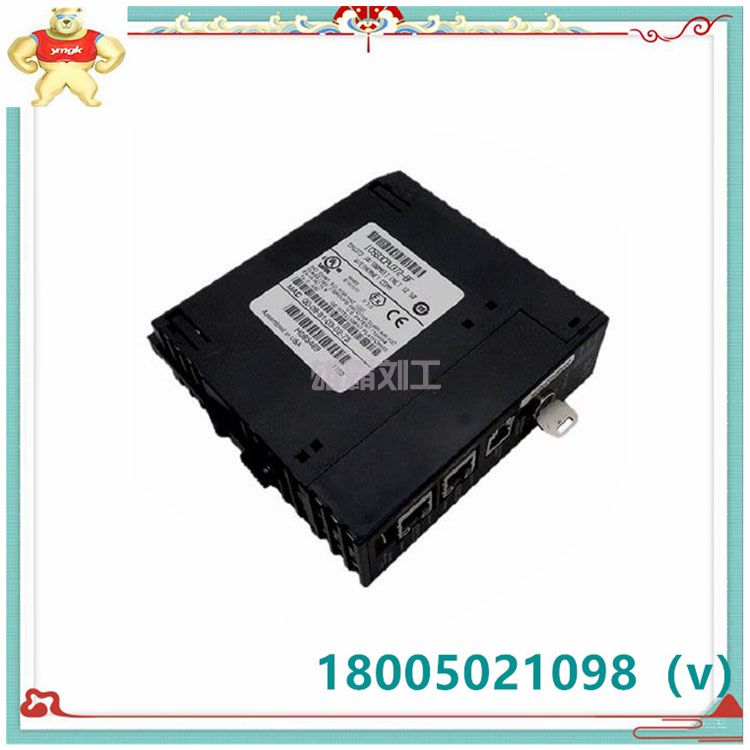

GE Fanuc IC693CPU363LT 是 90-30 系列处理器模块。该模块是 CPU 363 模块，具有单插槽宽度，处理器速度为 25 MHz，布尔触点的典型扫描速率为每 1K 逻辑 0.22 毫秒。它具有 240KB 的嵌入式用户存储器，嵌入式两 （2） 个串行通信端口，支持 RS232 和 RS485 通信标准。

工作温度 0 至 60 摄氏度（32 至 140 华氏度）

以太网端口数 不适用

内存存储类型 RAM和闪存

典型扫描速率 每 1K 逻辑 0.22 毫秒（布尔触点）

串行端口 RS-485（通过电源

电源要求 890 安培，+5 VDC 电源

寄存器存储器 240 千字节

CPU类型 单插槽CPU模块

IC693CPU363LT配备 80386EX 处理器，时钟速度为 25 MHz，布尔触点的典型扫描速率为每 1K 逻辑 0.22 ms。该控制器的嵌入式存储器为 240KB，内部分区以适应不同的寄存器和内部功能。它有两 （2） 个串行端口，一 （1） 个端口具有 RJ45 的物理接口，而另一个端口具有 15 针 sub-D 连接器，均支持 RS232 和 RS485 通信标准。它还具有位于电源上的第三级 RS485 端口。所有这些端口都允许下载、上传用户程序、执行调试任务和微调程序。这些端口独立运行，可以配置为同时运行，以适应其他数据交换功能，例如与可视化组件的通信。IC693CPU363LT支持的其他通信协议包括以太网、FIP、Profibus、GBC、GCM、GCM+ 选项模块。

The GE Fanuc IC693CPU363LT is a 90-30 series processor module. The module is a CPU 363 module with a single slot width, a processor speed of 25 MHz, and a typical scan rate of 0.22 milliseconds per 1K logic for Boolean contacts. It has 240KB of embedded user memory, embedded two (2) serial communication ports, and supports RS232 and RS485 communication standards.

Operating temperature 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)

The number of Ethernet ports is not applicable

Memory Storage types RAM and flash

Typical scan rate 0.22 ms per 1K logic (Boolean contacts)

Serial port RS-485 (via power supply

Power requirements 890 amps, +5 VDC power supply

Register memory 240 kilobytes

CPU Type Single-socket CPU module

The IC693CPU363LTis equipped with an 80386EX processor with a clock speed of 25 MHz and a typical sweep rate of 0.22 ms per 1K logic for Boolean contacts. The controller's embedded memory is 240KB, internally partitioned to accommodate different registers and internal functions. It has two (2) serial ports, one (1) port with an RJ45 physical interface, while the other port has a 15-pin sub-D connector, both supporting RS232 and RS485 communication standards. It also has a third level RS485 port located on the power supply. All of these ports allow you to download and upload user programs, perform debugging tasks, and fine-tune programs. These ports operate independently and can be configured to operate simultaneously to accommodate other data exchange functions, such as communication with visual components. Other communication protocols supported by IC693CPU363 include Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.
