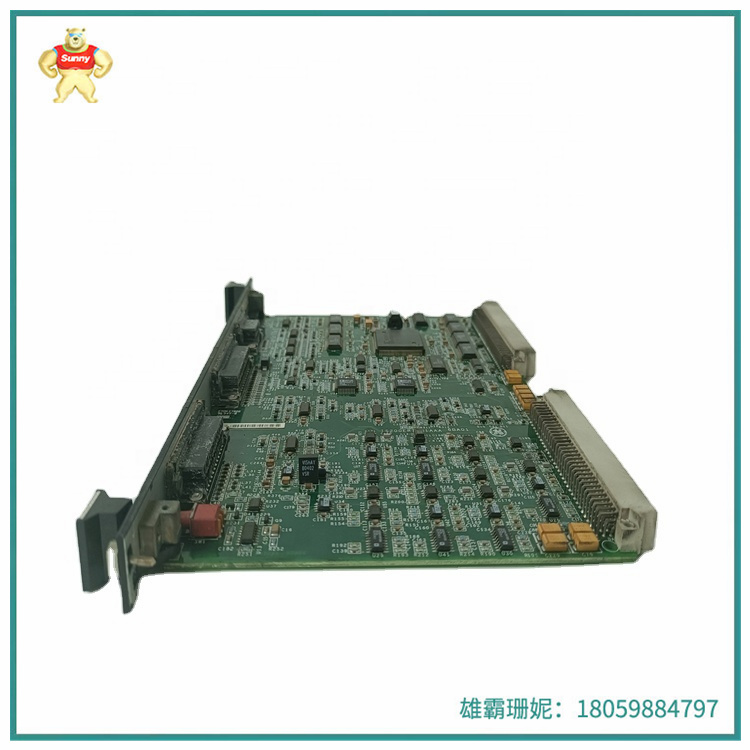

IS220PTURH1B  |    终端板   |     I/O数字输入输出模块

型号：IS220PTURH1B

输入电压范围:12-48VDC

输出电压范围:5VDC。

输出电流:最大10A。

效率:大于90%。

尺寸:170mm x105mmx32mm.

重量:约120g。

运行温度:-20°C至+50°C。

存储温度:-40°C至+70°C。

环境湿度:5%至95%相对湿度(无凝露)

产品描述

该IS220PDIAH1B是GE Mark VIe I/O包，与各种GE终端板相结合。这是 AX Control 提供的几种 I/O 包/板组合之一。其中许多设备已被 OEM 置于传统状态，制造商可能不再提供。AX Control 尽最大努力保持这些产品的现有库存，以更好地为我们的客户服务。

该IS220PTURH1B被批准用于危险场所。PDIA I/O可以与许多不同的终端板配对，包括IS200STCIH1A和2A、IS200STCIH8A、Is200TBCIH2C或H4C、IS400TBCIH2C、IS400STCIH1A或2A或IS400STCIH8A。这些通常是 Mark VIe Speedtronic 系统的一部分的配电板。

IS220PDIAH1B I/O 包的额定电压为 24.0 VDC，最大额定值为 28.6。触点输入的最大额定电压为 32 VDC。该装置已通过 UL 认证，适用于非危险和危险场所。请参阅所有不同等级和区域 UL 标志的文档。该IS220PDIAH1B设计用于 -30 至 +65 摄氏度（环境温度）之间的温度。

Model: IS220PTURH1B

Input voltage range :12-48VDC

Output voltage range :5VDC.

Output current: Max. 10A.

Efficiency: greater than 90%.

Size :170mm x105mmx32mm.

Weight: About 120g.

Operating temperature :-20°C to +50°C.

Storage temperature :-40°C to +70°C.

Ambient humidity :5% to 95% relative humidity (no condensation)

Product description

The IS220PDIAH1B is a GE Mark VIe I/O package that is combined with various GE terminal boards. This is one of several I/O package/board combinations offered by AX Control. Many of these devices have been placed in a legacy state by Oems and may no longer be offered by manufacturers. AX Control makes its best efforts to maintain existing inventory of these products to better serve our customers.

The IS220PTURH1B is approved for use in hazardous places. The PDIA I/O can be paired with a number of different end boards, including IS200STCIH1A and 2A, IS200STCIH8A, Is200TBCIH2C or H4C, IS400TBCIH2C, IS400STCIH1A or 2A or IS400STCIH8A. These are usually the switchboards that are part of the Mark VIe Speedtronic system.

The IS220PDIAH1B I/O package has a rated voltage of 24.0 VDC and a maximum rating of 28.6. The maximum rated voltage of the contact input is 32 VDC. The unit is UL certified for use in both non-hazardous and hazardous sites. Please refer to the documentation for all UL marks of different grades and regions. The IS220PDIAH1B is designed for temperatures between -30 and +65 degrees Celsius (ambient temperature).
