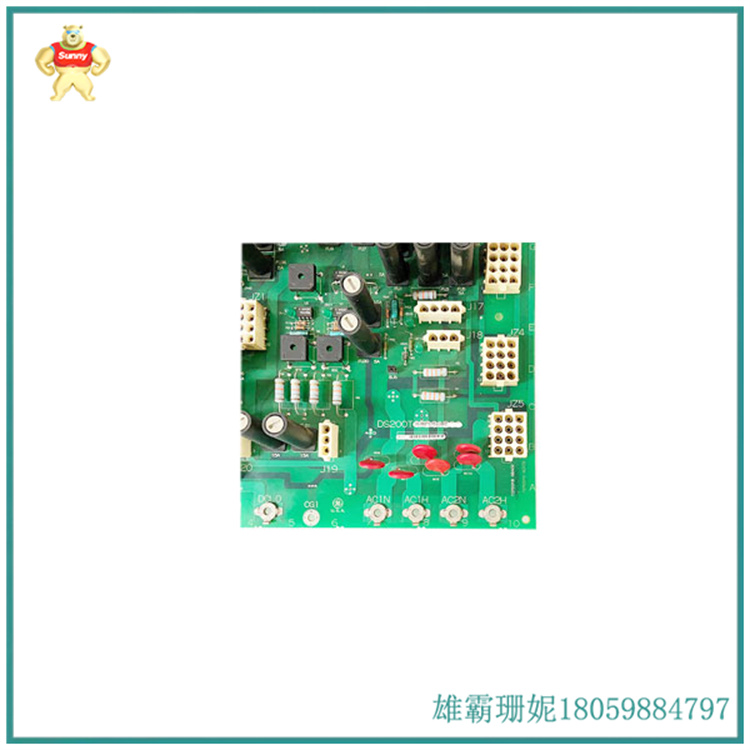

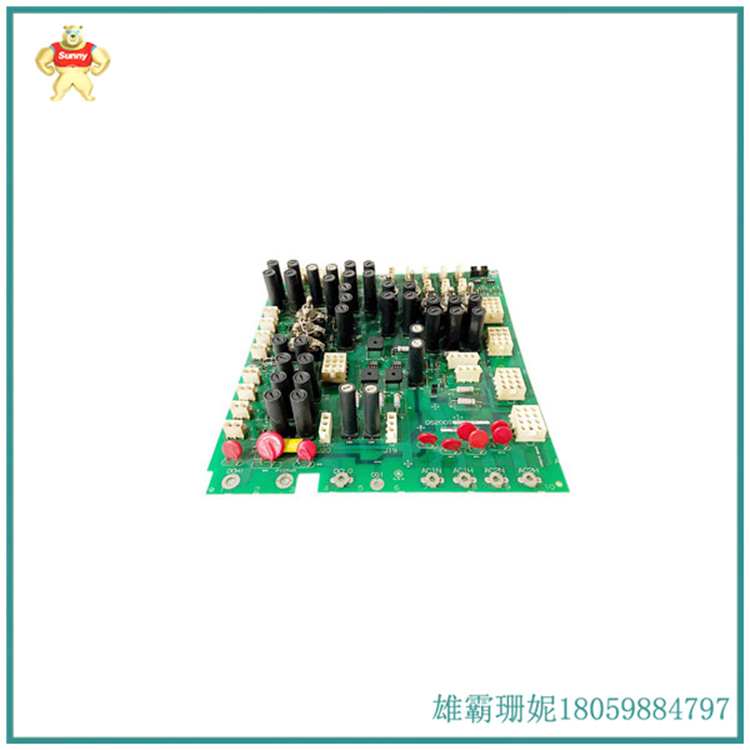

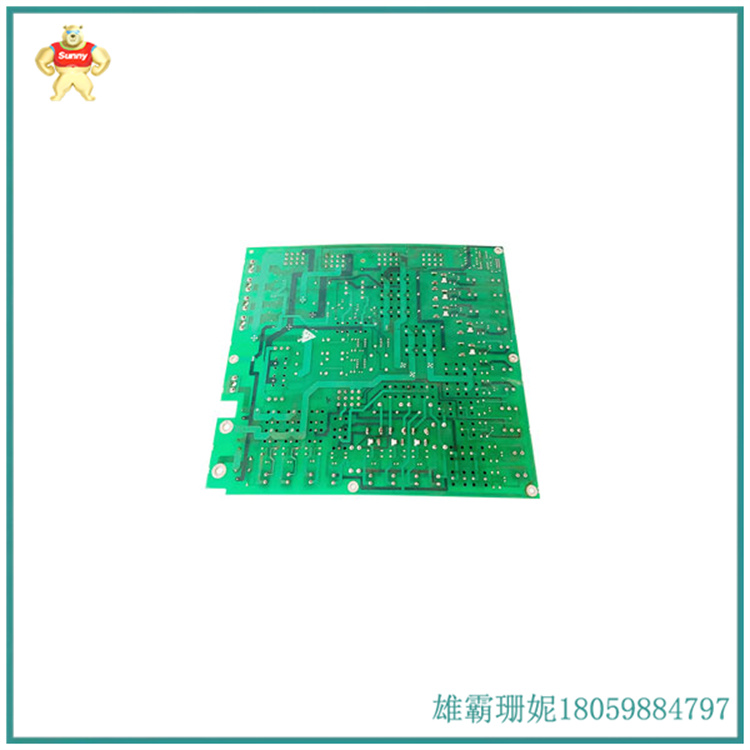

GE DS200TCPDG1BEC 配电板

GE配电板DS200TCPDG1BEC具有8个拨动开关，36个保险丝和4个信号线端子。它还具有 36 个 OK LED 和 1 个 10 针连接器。GE配电板DS200TCPDG1BEC装有黑色塑料外壳，可容纳36个保险丝。保险丝位于罐中的垂直位置，在需要时易于检修和更换。要更换板上的保险丝，请扭转容器顶部以将其打开。顶部仍固定在容器上，以便于使用。用拇指和一根手指从罐中取出保险丝。最佳做法是丢弃熔断的保险丝，以免意外地将其再次插入板上的罐中。要安装新的保险丝，请将保险丝与开口对齐，然后将其放入容器中。保险丝的任何一端都可以放入罐中。将顶部放在容器上并扭转以将其关闭。

要确定保险丝是否熔断并需要更换，请考虑无法对保险丝进行目视检查，因为保险丝在罐内。但是，每个保险丝旁边都有一个 LED，指示保险丝正常。点亮时，绿色 LED 表示保险丝中的元件完好无损，可以保护电路板电路。关闭时，保险丝熔断或电路板未通电。如果所有 LED 都熄灭，您可能会怀疑主板未通电。

The GE distribution board DS200TCPDG1BEC has 8 toggle switches, 36 fuses, and 4 signal line terminals. It also has 36 OK LEDs and 1 10-pin connector. The GE distribution board DS200TCPDG1BEC is equipped with a black plastic housing that can accommodate 36 fuses. The fuse is located in a vertical position in the tank and is easy to access and replace when needed. To replace the fuse on the board, twist the top of the container to open it. The top remains fixed to the container for ease of use. Use your thumb and one finger to remove the fuse from the jar. The best practice is to discard the blown fuse to avoid accidentally reinserting it into the canister on the board. To install a new fuse, align the fuse with the opening and place it in a container. Either end of the fuse can be placed in the can. Place the top on the container and twist to close it.

To determine if the fuse has blown and needs to be replaced, consider not being able to visually inspect the fuse as it is inside the tank. However, there is an LED next to each fuse indicating that the fuse is functioning properly. When lit, a green LED indicates that the components in the fuse are intact and can protect the circuit board circuit. When closed, the fuse blows or the circuit board is not powered on. If all LEDs turn off, you may suspect that the motherboard is not powered on.
