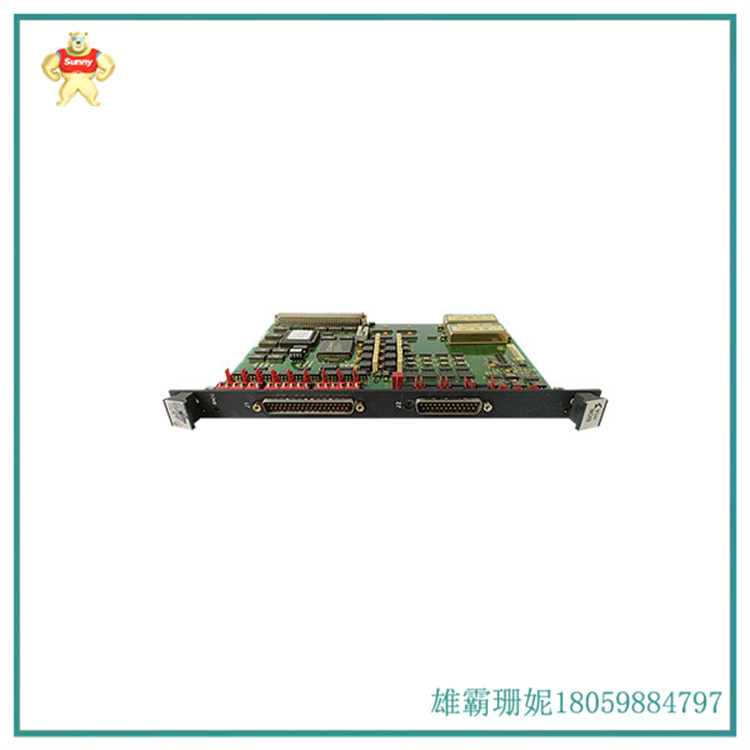

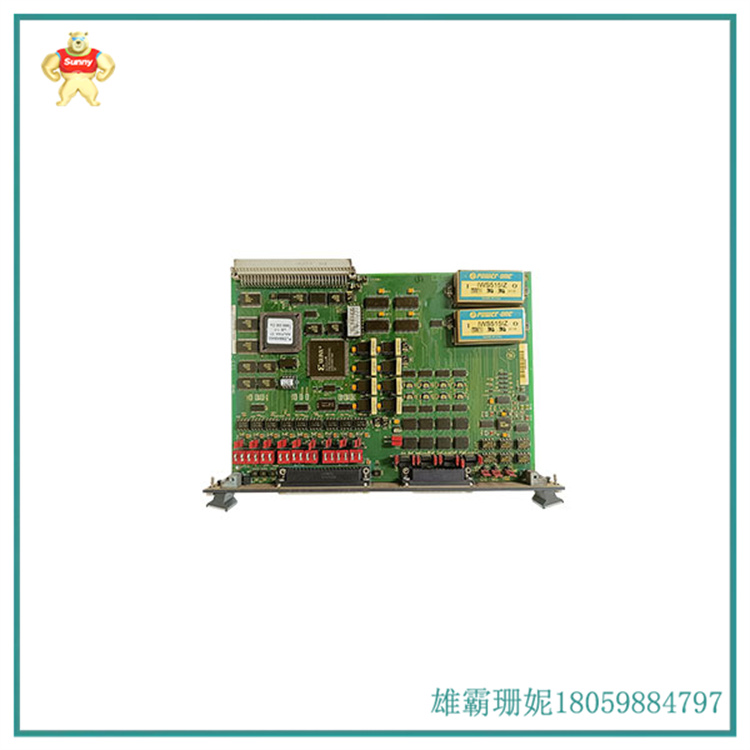

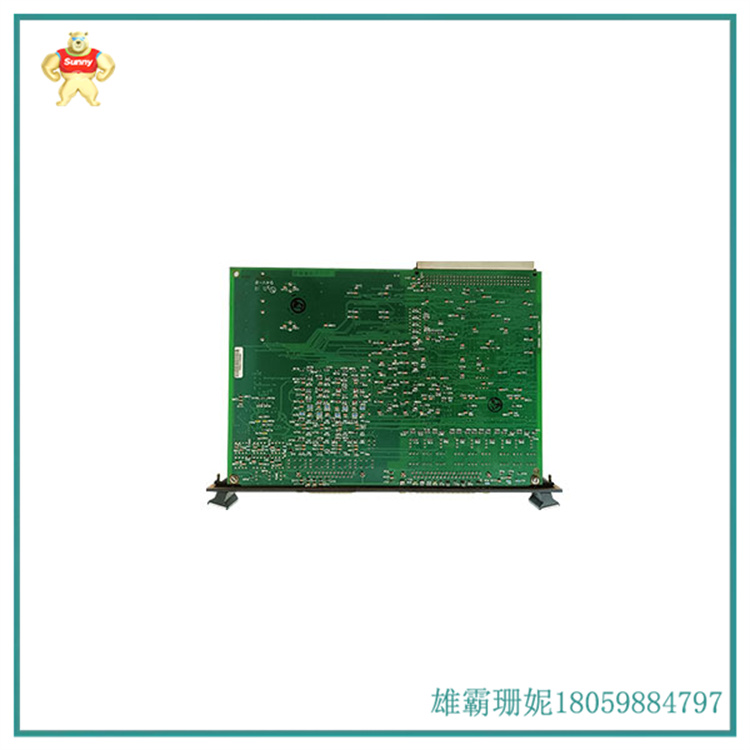

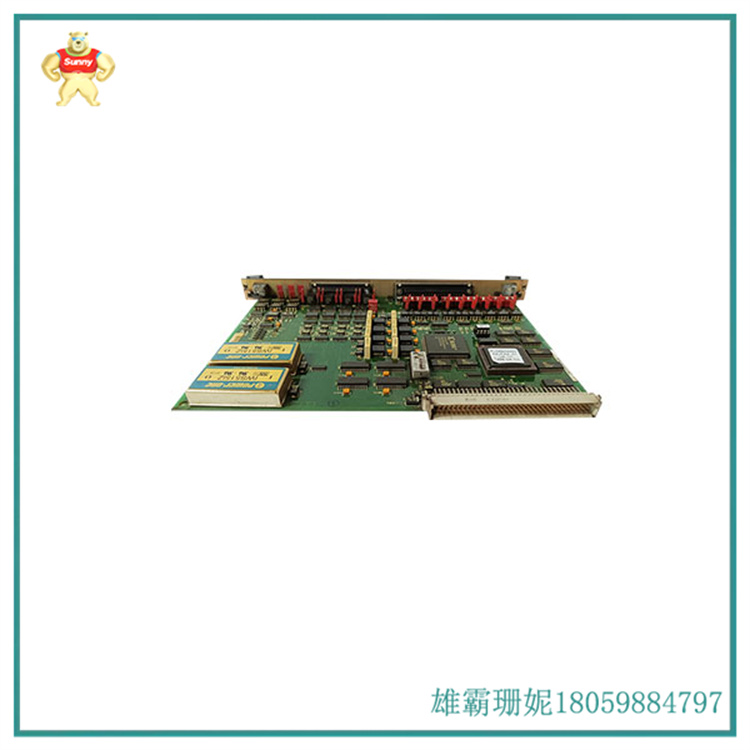

GE DS200SIOBH1ABA I/O控制板

制造者通用电气通用电气
系列马克五世
部件号DS200SIOBH1ABA
产品类型虚拟机支架 I/O 卡


联系电话:18059884797

产品详情

GE I/O 控制板 DS200SIOBH1ABA 具有 3 个跳线和 6 个开关块,每个模块中有 18 个开关,总共 40 个开关。它还配有一个 LED 和一个 200 针连接器。原主板上的 GE I/O 控制板 DS1SIOBH<>ABA 上的跳线带有出厂默认设置的跳线。在安装电路板之前,您可以查看印刷材料中的信息,以了解跳线的备用设置以及它们如何更改电路板的操作。某些跳线只有一个支撑位置,因此无法更改。

当您发现必须更换电路板时,最佳做法是设置新板中的跳线以匹配旧板上的跳线位置。这样,电路板将起到相同的作用并支持驱动器性能。首先,卸下将旧主板固定在主板机架中的螺钉卸下旧主板,然后用两只手从驱动器中卸下主板。小心防止主板碰到驱动器中的其他组件。在附近找到一个干净干燥的表面,并压平一个防静电保护袋。将旧板放在袋子上。打开装有更换板的密封保护袋,然后滑出板。用两只手携带它并将其放在旧板旁边。设置开关以匹配旧板上的开关位置。







The GE I/O control board DS200SIOBH1ABA has 3 jumpers and 6 switch blocks, with 18 switches in each module, totaling 40 switches. It also comes with an LED and a 200 pin connector. The jumpers on the GE I/O control board DS1SIOBH<>ABA on the original motherboard have factory default settings. Before installing the circuit board, you can review the information in the printed materials to understand the backup settings for jumpers and how they change the operation of the circuit board. Some jumpers only have one support position and cannot be changed.

When you find it necessary to replace a circuit board, the best practice is to set the jumper in the new board to match the jumper position on the old board. In this way, the circuit board will play the same role and support driver performance. Firstly, remove the screws that secure the old motherboard to the motherboard rack and remove the old motherboard. Then, use both hands to remove the motherboard from the drive. Be careful to prevent the motherboard from touching other components in the drive. Find a clean and dry surface nearby and flatten an anti-static protective bag. Place the old board on the bag. Open the sealed protective bag containing the replacement board and slide it out. Carry it with both hands and place it next to the old board. Set the switch to match the switch position on the old board.
