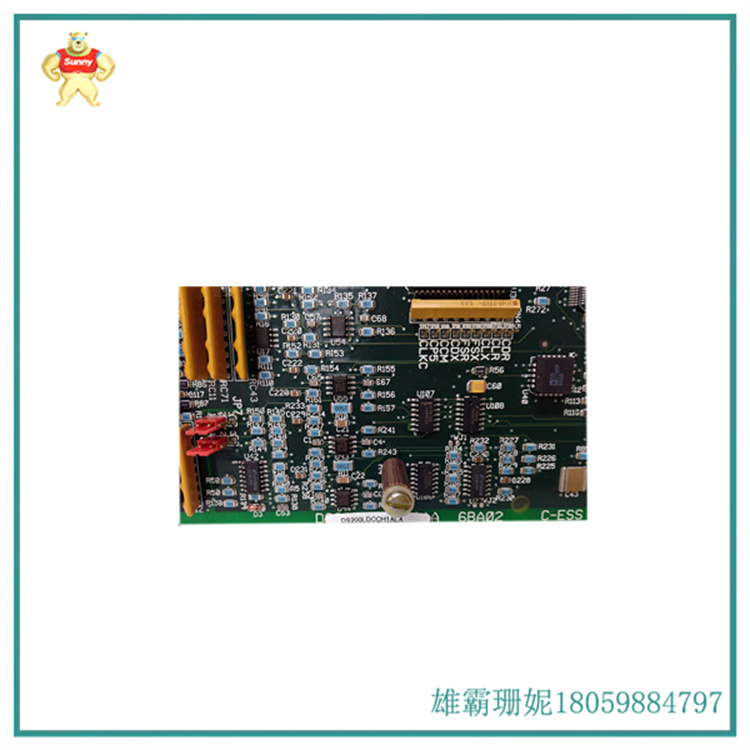

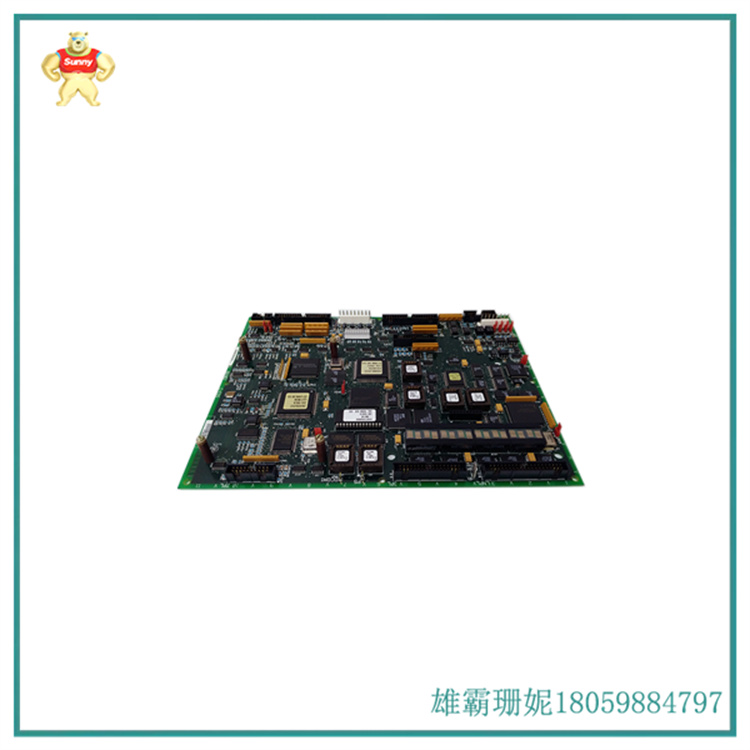

GE DS200LDCCH1ALA  驱动控制局域网通信板

通用电气制造了DS200LDCCH1ALA板作为驱动控制和局域网（LAN）通信卡。 该卡是作为Mark V系列驱动板的成员开发的。DIRECTO-MATIC 2000 系列的驱动器旨在将此卡安装在其驱动器柜中。该板提供一系列功能，例如设备、电机和 I/O 控制功能。

该驱动器控制和LAN通信板具有四个微处理器，用于过滤卡信号。发送到电路板的数字和模拟I/O由板载驱动控制处理器（DCP）接收和滤波。馈送到驱动器的 LAN 系统通过板载的 LAN 控制处理器 （LCP） 进行过滤。其余两个处理器，即电机控制处理器 （MCP） 和协电机处理器 （CMP），彼此协同工作。MCP 为数字 I/O 通信提供初始处理空间。如果信号所需的计算超过MCP提供的空间功率，CMP将补充处理能力。该板配有一个可连接的字母数字键盘。

General Electric has manufactured the DS200LDCCH1ALA board as a driver control and local area network (LAN) communication card. This card was developed as a member of the Mark V series driver board. The driver of the DIRECTO-MATIC 2000 series is designed to install this card in its drive cabinet. This board provides a series of functions, such as device, motor, and I/O control functions.

The driver control and LAN communication board has four microprocessors for filtering card signals. The digital and analog I/O sent to the circuit board is received and filtered by the onboard drive control processor (DCP). The LAN system fed to the drive is filtered through the onboard LAN Control Processor (LCP). The other two processors, the Motor Control Processor (MCP) and the Co Motor Processor (CMP), work together. MCP provides initial processing space for digital I/O communication. If the calculation required for the signal exceeds the spatial power provided by MCP, CMP will supplement the processing capacity. The board is equipped with a connectable alphanumeric keyboard.
