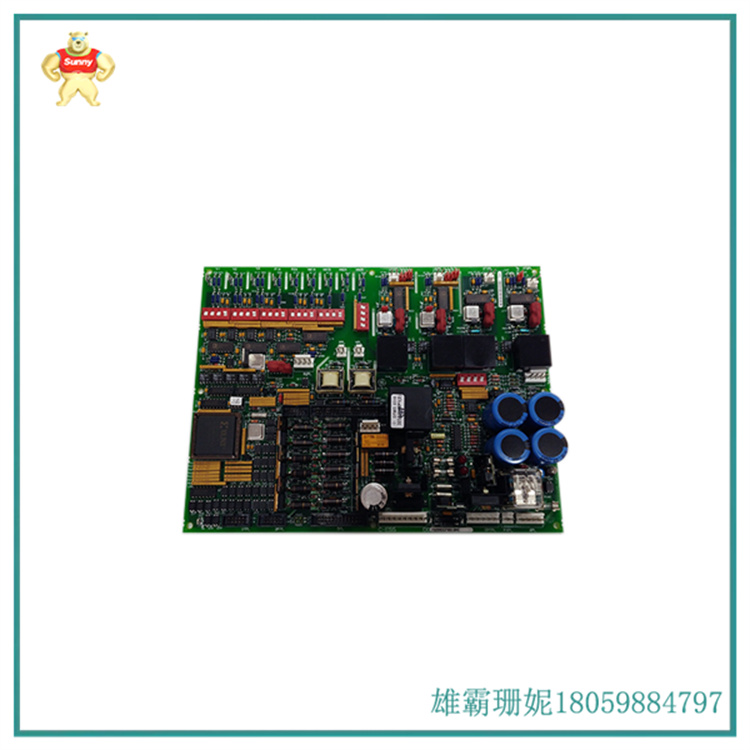

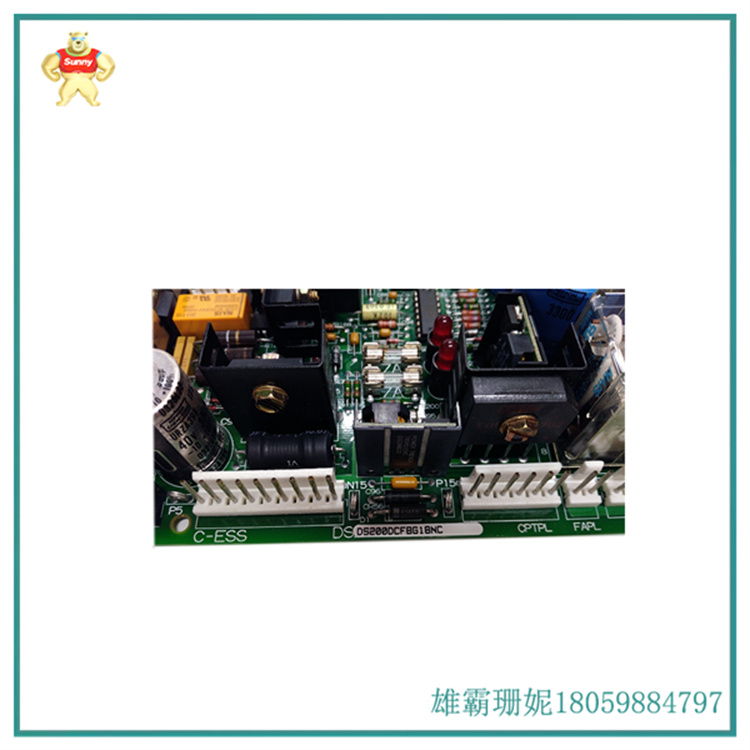

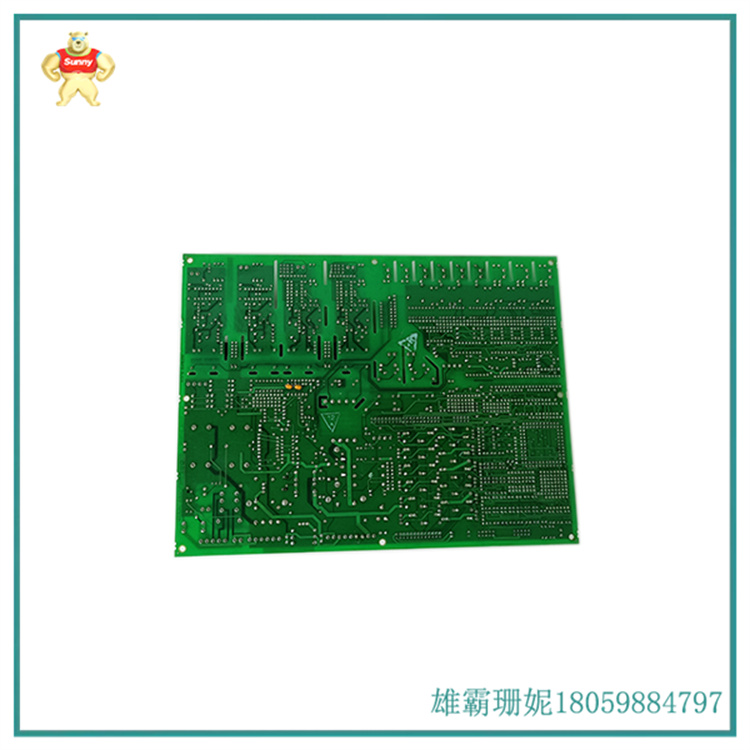

GE DS200DCFBG1BNC 电源板

DS200DCFBG1BNC 是为通用电气的 Mark V 系列替换和可选板制造的电源板。DS200DCFBG1BNC电路板是Speedtronic Mark V控制系统的一部分。系统控制级电源以及机箱风扇由此卡供电。该卡与许多GE品牌的励磁器和驱动器兼容，可以安装在各种系统中。FC2000、AC2000、DC2000、ME2000 和 CB2000 系列的驱动器可以使用此主板。馈入电路板的电压可以安全地在 38 至 115 VAC 之间。

DS200DCFBG1BNC在电路板周围包括五个电路。其中包括驱动器电路、控制电平电源电路、电机磁场电源电路以及交流和直流监控电路。为了确保电路不中断，船上的三个保险丝受到保护。如果需要注意任何保险丝，集成的 LED 和霓虹灯指示灯将提醒用户。监控电压电平很重要，可以使用卡上的五个测试点之一来完成。用户可通过 <> 个跳线和 <> 个 DIP 开关进行配置。

DS200DCFBG1BNC is a power board manufactured for General Electric's Mark V series replacement and optional boards. The DS200DCFBG1BNC circuit board is part of the Speedtronic Mark V control system. The system control level power supply and chassis fan are powered by this card. This card is compatible with many GE brand exciters and drivers and can be installed in various systems. FC2000, AC2000, DC2000, ME2000, and CB2000 series drives can use this motherboard. The voltage fed into the circuit board can be safely between 38 and 115 VAC.

The DS200DCFBG1BNC includes five circuits around the circuit board. This includes driver circuits, control level power supply circuits, motor field power supply circuits, and AC and DC monitoring circuits. To ensure that the circuit is not interrupted, the three fuses on board are protected. If any fuses need to be noted, the integrated LED and neon indicator light will alert the user. Monitoring voltage levels is important and can be accomplished using one of the five test points on the card. Users can configure through<>jumpers and<>DIP switches.
