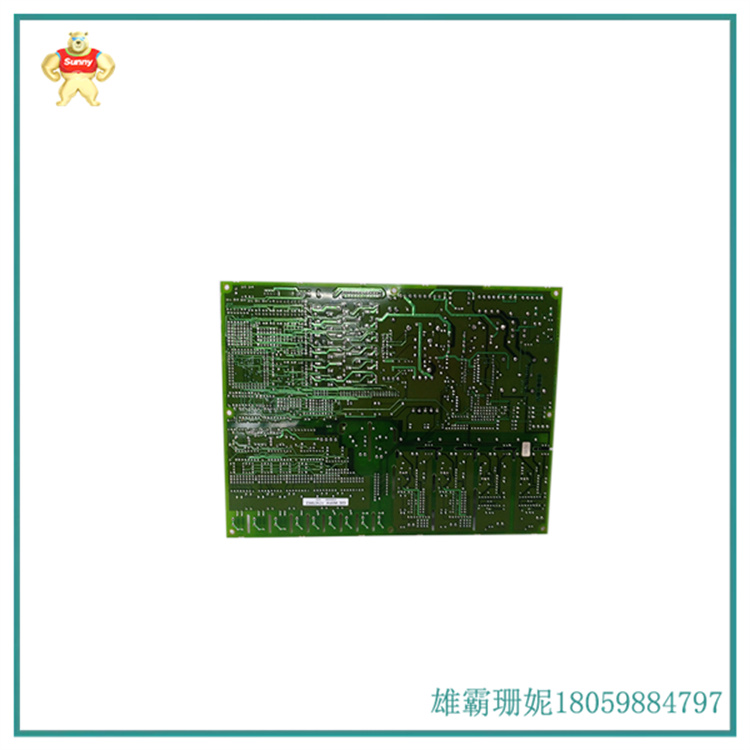

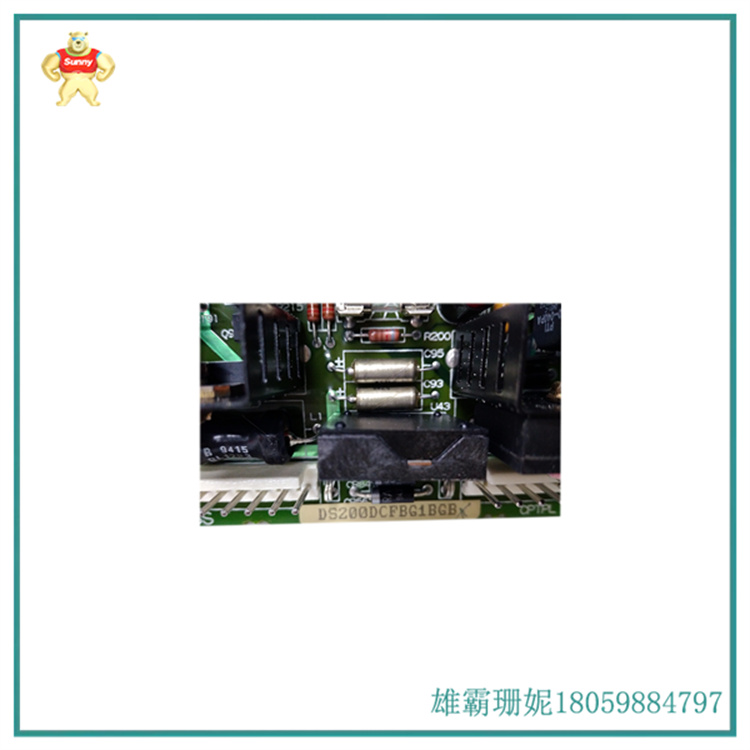

GE DS200DCFBG1BGB 电源板

DS200DCFBG1B是通用电气为Mark V板系列制造的电源板。 AC2000、CB2000、DC2000、FC2000、ME2000 和 EX2000 系列机器可以将主板安装在驱动器中。安装后，此卡可以为驱动器提供控制级电源和盘柜风扇电源。额定电压介于 38 和 115 VAC 之间，可通过控制电源变压器直接提供给电路板。电路板的频率取决于输入电压，但范围为0至500 kHz。

该板具有许多电路，用于为板和已安装的驱动器供电。DS200DCFBG1B由电机励磁电源、驱动器、AC/DC监视和控制电平电源电路组成。板上的 <> 个跳线和 <> 个 DIP 开关为用户提供了可配置的系统选项。保险丝开关诊断使用板上的两个 LED 和一个霓虹灯指示灯提供。三个保护保险丝可防止电源中断。可以使用集成在电路板上的五个测试点来监控电压。

应遵循制造商提供的DS200DCFBG1B和已安装驱动器的安装和存储参数。 这些将防止对两个单元造成任何意外或可预防的损坏。有关电路板接线和安装的完整指南，请参阅器件手册和数据表。最初，该板和Mark V系列的技术支持由制造商通用电气提供。

DS200DCFBG1B is a power board manufactured by General Electric for the Mark V board series. AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000 series machines can install the motherboard in the drive. After installation, this card can provide control level power and cabinet fan power to the drive. The rated voltage is between 38 and 115 VAC and can be directly supplied to the circuit board through a control power transformer. The frequency of the circuit board depends on the input voltage, but the range is 0 to 500 kHz.

This board has many circuits used to power the board and installed drivers. DS200DCFBG1B consists of a motor excitation power supply, driver, AC/DC monitoring and control level power supply circuit. The<>jumpers and<>DIP switches on the board provide users with configurable system options. The fuse switch diagnosis is provided using two LEDs and a neon indicator light on the board. Three protective fuses can prevent power interruption. Five test points integrated on the circuit board can be used to monitor voltage.

The installation and storage parameters for DS200DCFBG1B and installed drivers provided by the manufacturer should be followed. These will prevent any unexpected or preventable damage to both units. For complete guidance on circuit board wiring and installation, please refer to the device manual and data sheet. Initially, the technical support for this board and the Mark V series was provided by the manufacturer General Electric.
