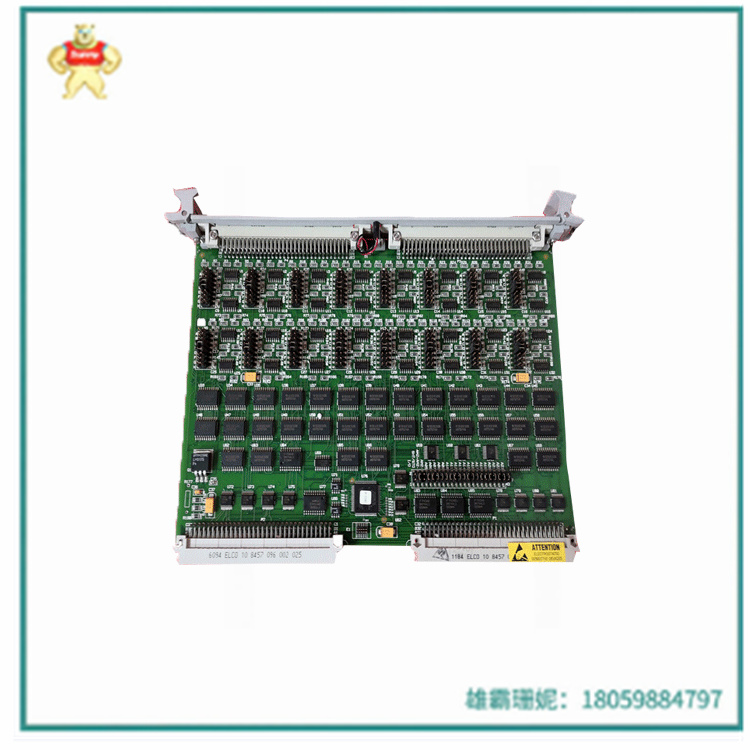

VMIVME-1128  单板ID寄存器 可自动测试设备

型号：VMIVME-1128

寻址方案:每个32个字节

可在8位、16位或32位边界上寻址。A单板ID寄存器位于电路板的基址。一个控制状态寄存器(CSR)堆叠在ID寄存器之上。16个输入字节放在CSR的上方。二十跳线建立电路板的基址。另一个跳线用于标准或短I/O访问。的下面的地址地图显示了所有的相对位置单板使用的寄存器。

•128位高压数字输入

•每组8个输入是跳线可选择监控电压源或

电流下沉信号

•开路提供逻辑零或(跳线可选)逻辑一

•板载内置测试逻辑，用于故障检测和隔离

•前面板失效LED

•用户可选择的输入电压阈值(0.61至34 V)与输入0到

66 V(见表1)

•符合VMEbus Specification Rev. C.1

•A24:A16:D32/D16/D08 (EO): slave: 39/3D:29/2D

•双欧洲卡尺寸(6U)

•高可靠性的din型I/O连接器

•兼容VMIC的智能I/O控制器(VMIVME-90xx系列)和

通用I/O控制器(VMIVME-9300系列)

应用程序:

•自动测试设备

•控制系统输入

•数据采集系统

•数字输入状态监控

•通用数字输入

•低维护应用(BIT)

•状态传感器监控

•监控系统

功能特征

兼容性:本产品符合VMEbus标准

规范(ANSI/IEEE STD 1014-1987, IEC 821和

297)使用以下助记符:A24:A16:D32/D16/D08

(EO):

型号:39/3D:29/2D

外形尺寸:6U

输入连接器类型:两个96针母连接器与该板一起使用。对于大规模终止(IDC)，一个ERNI IDC DIN连接器和0.033英寸30awg

建议使用带状电缆。

ERNI订单号

是:96针连接器913 031

96芯0.033英寸电缆913 049

VMIVME-1128对于分立线使用，浩亭连接器是推荐。这种连接器由触点外壳组成用女性卷接式隐形眼镜。浩亭订单编号为:96针连接器09 03 096 3214女性压接式隐形眼镜09 02 000 8484压接工具(用于剥线)09 99 000 0075任何一个连接器都需要一个带固定的外壳杠杆。我们推荐浩亭住房。它的顺序号码是09 03 096 0501。这个外壳与分立器件一起使用电线电缆，将分立的电线电缆锁存到电路板上连接器和提供应变缓解。

I/O组织:16个输入端口，8位宽总共有128个输入，可寻址到短期监管和/或短期非特权或标准监控数据和/或标准非特权数据I/O地图。

Model: VMIVME-1128

Addressing scheme: 32 bytes each

It can be addressed on 8-bit, 16-bit, or 32-bit boundaries. A The board ID register is located at the base address of the board. A control status register (CSR) is stacked on top of the ID register. Sixteen input bytes are placed above the CSR. Twenty jumpers establish the base address of the circuit board. Another jumper is used for standard or short I/O access. The following address map shows all the relative locations of the registers used by the board.

• 128-bit high voltage digital input

• Each group of 8 inputs are jumpers that can be selected to monitor voltage sources or

Current dip signal

• Open circuit provides logic zero or (jumper optional) logic one

• Onboard built-in test logic for fault detection and isolation

• Front panel failed LED

• User selectable input voltage threshold (0.61 to 34 V) with input 0 to

66 V(see Table 1)

• Conforms to VMEbus Specification Rev.C.1

•A24:A16:D32/D16/D08 (EO): slave: 39/3D:29/2D

• Dual Eurocard size (6U)

• Highly reliable din I/O connectors

• Intelligent I/O controller compatible with VMIC (VMIVME-90xx series) and

Universal I/O Controller (VMIVME-9300 Series)

Application program:

• Automatic test equipment

• Control system input

• Data acquisition system

• Digital input status monitoring

• Universal digital input

• Low maintenance applications (BIT)

• Status sensor monitoring

• Monitoring system

Functional characteristics

Compatibility: This product complies with the VMEbus standard

Specifications (ANSI/IEEE STD 1014-1987, IEC 821 and

297) Use the following mnemonics :A24:A16:D32/D16/D08

(EO):

Model :39/3D:29/2D

Dimensions :6U

Input connector type: Two 96-pin female connectors are used with this board. For Mass termination (IDC), an ERNI IDC DIN connector and 0.033 "30awg

Ribbon cables are recommended.

ERNI order number

Yes: 96-pin connector 913 031

96 core 0.033 inch cable 913 049

VMIVME-1128 For discrete line use, Harting connector is recommended. This connector consists of a contact housing for women's roll-on contact lenses. Harting Order number: 96-pin connectors 09 03 096 3214 Female crimp Contact lenses 09 02 000 8484 Crimp Tools (for stripping)09 99 000 0075 Any connector requires a fixed housing lever. We recommend Harting House. Its sequence number is 09 03 096 0501. This housing uses wire and cable with discrete devices to latch the discrete wire and cable to the circuit board connector and provide strain relief.

I/O organization :16 input ports, 8 bits wide with a total of 128 inputs, addressable to short-term regulatory and/or short-term unprivileged or standard monitoring data and/or standard unprivileged data I/O maps.
