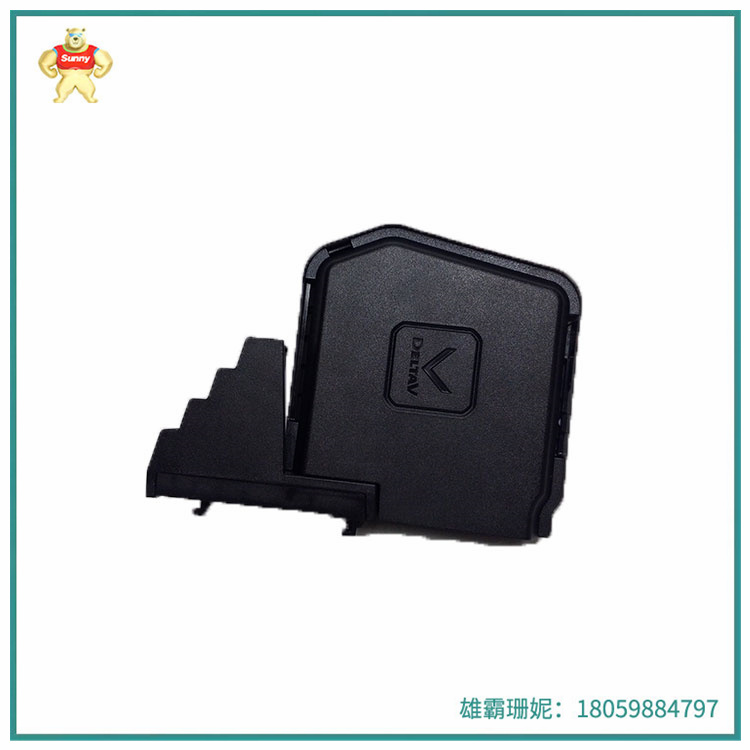

KJ3241X1-BK1-12P4710X032   总线电源

型号：KJ3241X1-BK1-12P4710X032

电源规格

本地总线电源12 VDC, 300 mA

环境规范

环境

温度：-40℃~ +70℃

震动10g½正弦波，持续11ms

2 ~ 13.2Hz峰值至峰值振动1mm;

0.7g从13.2到150Hz

机载 ISA-S71.04 -1985空降

污染物 G3类污染物

接线盒键 D4

注:序号以产品标签为准

以及生产地点和日期。

警告:本产品有特定的使用说明

在危险环境下安装、拆卸和操作

区域。参考文档12P5404“DeltaV™S系列数字自动化系统2区安装”

指令”。其他安装说明如下

“硬件安装”手册。

取出和插入现场供电给这个设备，要么在现场终端或作为母线的现场电源通过载体，在移除或移除之前必须移除连接设备。本单元不能随系统拆卸或插入精力充沛。旋转键控系统确保兼容性在I/O卡和终端块之间完成安装。端子排必须为它所使用的I/O卡设置了密钥使用。维护与调整本设备不包含用户可维修的部件和不得因任何原因拆卸。不需要校准。

Model: KJ3241X1-BK1-12P4710X032

Power supply specification

Local bus power 12 VDC, 300 mA

Environmental specification

environment

Temperature: -40℃~ +70℃

Vibration 10g½ sine wave, lasting 11ms

2 ~ 13.2Hz peak to peak vibration 1mm;

0.7g from 13.2 to 150Hz

Airborne ISA-S71.04-1985

Pollutants Pollutants of the G3 category

Junction box key D4

Note: Serial number depends on the product label

And the location and date of production.

Warning: This product has specific instructions for use

Installation, disassembly and operation in hazardous environments

Area. Reference document 12P5404 "DeltaV™S Series Digital Automation System Installation in Zone 2"

Instructions ". Other installation instructions are as follows

Hardware Installation manual.

Take out and plug in the field power supply to this device, either at the field terminal or as a busbar of the field power supply through the carrier, the connected device must be removed before removal or removal. This unit cannot be removed with the system or inserted energetically. The rotary keying system ensures compatibility between the I/O card and the terminal block

The installation is complete. Must the terminal block have a key set for the I/O card it uses

Use. Maintenance and adjustment This equipment does not contain user repairable parts and may not be disassembled for any reason. No calibration required.
