IC694MDL930 输出模块  可以控制广泛的输出设备

型号：IC694MDL930

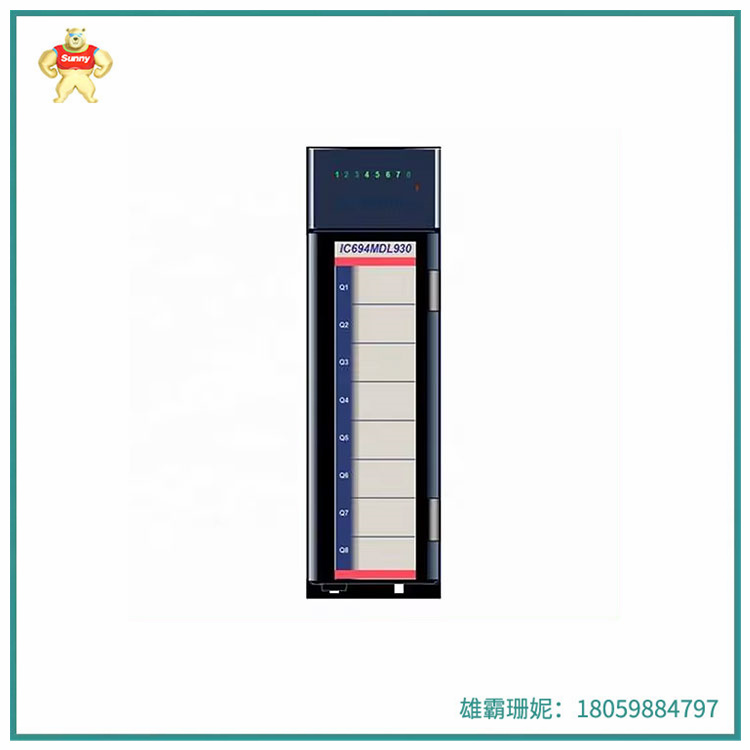

MDL930系列90*30和PACSystems的4安培lsolatedRelay输出模块提供8个常开继电器电路来控制输出负载。每个电路的输出开关容量为4安培。每个输出点与其他点隔离，每个点都有一个单独的公共电源输出端子。继电器输出可以控制广泛的输出设备，如电机启动器，螺线管和指示器。单个编号的led显示每个输出点的开/关状态。这个模块上没有保险丝。MDL930标签上红色带表示为高压模块。

IC694MDL930  该模块可以安装在系列90-30或RX3i系统的任何lIO插槽中。

用户必须提供交流或直流电源来操作连接到该模块的现场设备。

额定电压

24伏直流，120/240伏交流电(标称-例外情况见下表)

工作电压

直流电压5 ~ 30伏

5至250 VAC,50/60 Hz

每个模块输出

8个隔离输出

lsolation:Field到Backplane和Frame

6mA(所有输出)来自背板上的5伏总线70ma(所有输出)来自背板上的继电器24v总线

1本模块与直流电源IC695PSD040或PSD140配合使用时，本模块会看到源电压的掉差，可能引起继电，需要特别注意

IC694MDL930 输出模块  可以控制广泛的输出设备

Model: IC694MDL930

The MDL930 Series 90*30 and PACSystems' 4 amp lsolatedRelay output modules provide eight normally open relay circuits to control the output load. The output switching capacity of each circuit is 4 amps. Each output point is isolated from the others, and each point has a separate common power output terminal. Relay outputs can control a wide range of output devices such as motor starters, solenids, and indicators. A single numbered led displays the on/off status of each output point. There is no fuse on this module. The red band on the MDL930 label indicates a high-voltage module.

IC694MDL930 This module can be installed in any lIO slot of Series 90-30 or RX3i systems.

The user must provide AC or DC power to operate the field equipment connected to the module.

Rated voltage

24 volts DC, 120/240 volts AC (nominal - exceptions see table below)

Operating voltage

Dc voltage 5 ~ 30 volts

5 to 250 VAC,50/60 Hz

Per module output

8 isolated outputs

lsolation:Field to Backplane and Frame

6mA(all outputs) from the 5-volt bus on the backplane 70ma(all outputs) from the relay 24v bus on the backplane

1 When the module is used with the DC power supply IC695PSD040 or PSD140, the module will see the source voltage difference, which may cause relay. Special attention should be paid
