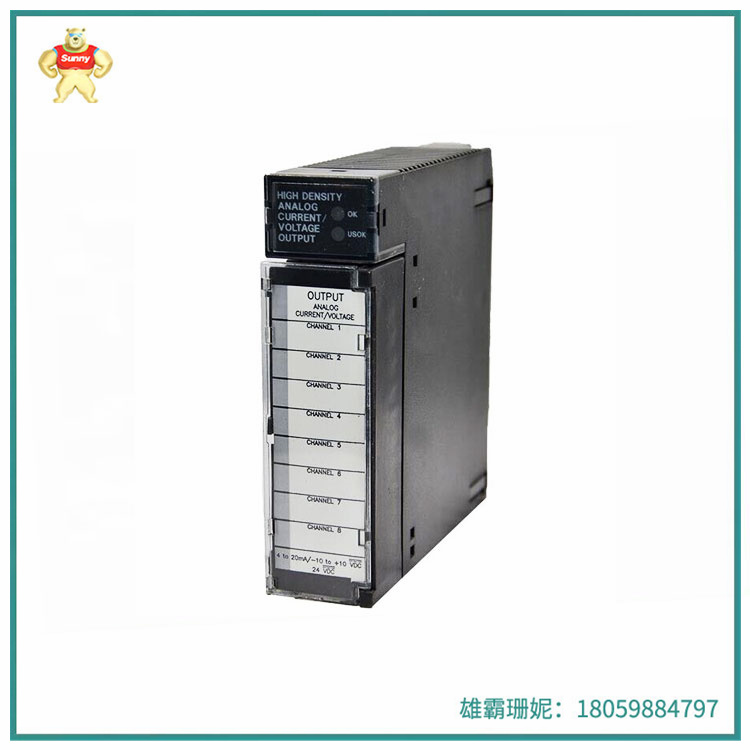

IC693ALG392C  模拟输出模块  用于实现仪器或设备的调制控制

品牌ge Fanuc

90-30系列

部件编号：IC693ALG392C

分辨率在-10至10 v 0.312 mV

产品生命周期状态*已停产/过时

模拟电流/电压输出

第八频道数目

电流范围4至20 mA, 0至20 mA

电压范围0 ~ 10v、-10 ~ 10v

外部电源电压范围20至30 VDC

内部供电电压5 VDC从PLC背板

所有频道的更新速率为8毫秒

分辨率在4-20 ma 0.5微安

分辨率在0-20 ma 0.625微安

0-10 v分辨率0.312 mV

内部功耗110毫安在5 VDC, 315毫安在24 VDC用户提供

IC693ALG392是90-30系列模块。该模块是一个模拟输出模块，通常用于实现仪器或设备的调制控制，如变频驱动器(VFD)，控制阀，定位器，转换器和其他类似的调制设备。它也可用于将模拟数据重新传输到接收元件，如记录器、数据记录器和其他兼容的接收设备。

IC693ALG392具有8个输出通道，可配置15或16位分辨率，具体取决于所选的模拟输出范围。它能够提供0至+10伏(单极)/ -10至+10伏(双极)电压和0至20毫安/ 4至20毫安输出信号等电压信号。为了能够产生输出模拟信号，该模块需要一个隔离的24VDC电源，直接连接到模块的指定端子排。

IC693ALG392C  模拟输出模块  用于实现仪器或设备的调制控制

Brand GE Fanuc

Series Series 90-30

Part Number IC693ALG392

Resolution at -10 to 10 V 0.312 mV

Product Lifecycle Status* Discontinued/Obsolete

Product Description Analog Current/Voltage Output

No of Channels 8

Current Range 4 to 20 mA, 0 to 20 mA

Voltage Range 0 to 10 V, -10 to 10 V

External Supply Voltage Range 20 to 30 VDC

Internal Supply Voltage 5 VDC from PLC backplane

Update Rate 8 ms all channels

Resolution at 4-20 mA 0.5 microamps

Resolution at 0-20 mA 0.625 microamps

Resolution at 0-10 V 0.312 mV

Internal Power Consumption 110 mA at 5 VDC, 315 mA at 24 VDC User Supplied

The IC693ALG392 is a Series 90-30 module.  This module is an analog output module that is typically used for implementing modulating control of instruments or devices such as Variable Frequency Drives (VFD), Control Valves, Positioners, converters and other similar modulating devices.  It may also be used to re-transmit analog data to receiving elements such as recorders, data loggers and other compatible receiving devices.

The IC693ALG392 features Eight (8) output channels with configurable resolution of 15 or 16 bits, depending on the analog output range selected.  It is capable of providing voltage signals such as 0 to +10 volts (unipolar) / -10 to +10 volts (bipolar) voltage and 0 to 20 milliamps / 4 to 20 milliamps output signals.  In able to generate the output analog signals, this module requires an isolated 24VDC power, directly connected to the designated terminal block of the module.
