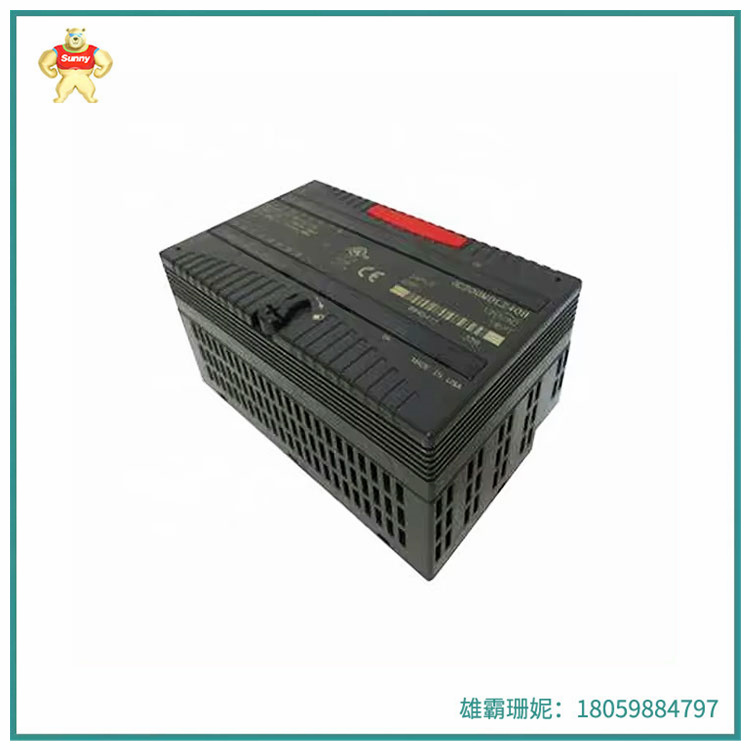

IC200MDL240B  分布式输入/输出  具有正逻辑或源型输入

型号：IC200MDL240B

仅次于爱默生的VersaMax。这种紧凑，非常实惠，控制解决方案可以

用作紧凑的PLC，分布式输入/输出，或分布式控制。它是模块化的可扩展的架构，直观的功能和易用性。

IC200MDL240B VersaMax模块化cpu提供了许多通常只在具有较大足迹的plc中发现的功能，包括高达128kb的内存，用于应用程序，浮点数学，实时时钟，子程序，PID控制，闪存和无碰撞程序存储。串口支持串行读写和Modbus主从通信。IC200MDL240B大量有用的l/o选项艾默生提供广泛的离散，模拟，混合和专业l/o模块。这些模块可以自由组合，以创建独立的/O站，最多256lo点和扩展的I/O系统，最多2048IO点。

VersaMax让您可以自由地连接到各种主机控制器，包括PLC, DCS和基于pc的控制系统，通过PROFINET(仅限远程输入/输出)，Modbus/TCP和其他以太网网络以及Genius, DeviceNet,Profibus-DP。VersaMax还完全支持艾默生PC控制解决方案的功能和开放架构。

IC200MDL240B是VersaMax交流输入模块，具有正逻辑或源型输入。这意味着输入将从交流输入设备接收电流，然后在公共设备上返回电流。为了实现这一点，输入设备连接在输入和公共终端之间。IC200MDL240提供两组8个离散输入。此特定模块的电源来自背板，由CPU或NIU执行智能处理。每个模块标配LED指示灯，用于开/关状态，并确认背板电源的存在。

垂直安装无需降额;然而，那些使用在132 VAC确实需要降额，虽然不是在120 VAC。为了隔离，用户输入到逻辑和框架地为250 VAC连续或1500 VAC持续一分钟。IC200MDL240B 该模块的输入电压为0至132 VAC和120 VAC标称。这包括最大1个周期的响应时间和最大2个周期的关闭响应时间。安装人员应注意，该模块具有爆炸危险，不应替换任何组件。

IC200MDL240B  分布式输入/输出  具有正逻辑或源型输入

Model: IC200MDL240B

Second only to Emerson's VersaMax. This compact, very affordable control solution can

Used as a compact PLC, distributed input/output, or distributed control. It's modular

Scalable architecture, intuitive functionality and ease of use.

The IC200MDL240B VersaMax modular cpu offers many features typically only found in PLCS with large footprints, including up to 128kb of memory for applications, floating point math, real-time clock, subroutines, PID control, flash memory, and collision-free program storage. Serial port supports serial read/write and Modbus master-slave communication. IC200MDL240B Large number of useful l/o options Emerson offers a wide range of discrete, analog, hybrid and professional l/o modules. These modules can be freely combined to create independent /O stations with up to 256lo points and extended I/O systems with up to 2048IO points.

VersaMax gives you the freedom to connect to a variety of host controllers, including PLCS, DCS and PC-based control systems, via PROFINET(remote input/output only), Modbus/TCP and other Ethernet networks as well as Genius, DeviceNet,Profibus-DP. VersaMax also fully supports the functionality and open architecture of Emerson's PC control solutions.

The IC200MDL240B is a VersaMax AC input module with positive logic or source type input. This means that the input will receive the current from the AC input device and then return the current on the common device. To achieve this, the input device is connected between the input and the public terminal. The IC200MDL240 provides two sets of eight discrete inputs. The power supply for this particular module comes from the backplane, and intelligent processing is performed by the CPU or NIU. Each module comes standard with an LED indicator for on/off status and to confirm the presence of backplane power.

Vertical installation without derating; However, those used at 132 VAC do require derating, although not at 120 VAC. For isolation, the user inputs into the logic and frame for 250 VAC continuously or 1500 VAC continuously for one minute. IC200MDL240B The module has input voltages from 0 to 132 VAC and 120 VAC nominal. This includes a maximum response time of 1 cycle and a maximum shutdown response time of 2 cycles. Installers should note that this module poses an explosion hazard and should not replace any components.
