IS200EXHSG3AE  励磁电源模块  为其他控制器提供逻辑电平电源

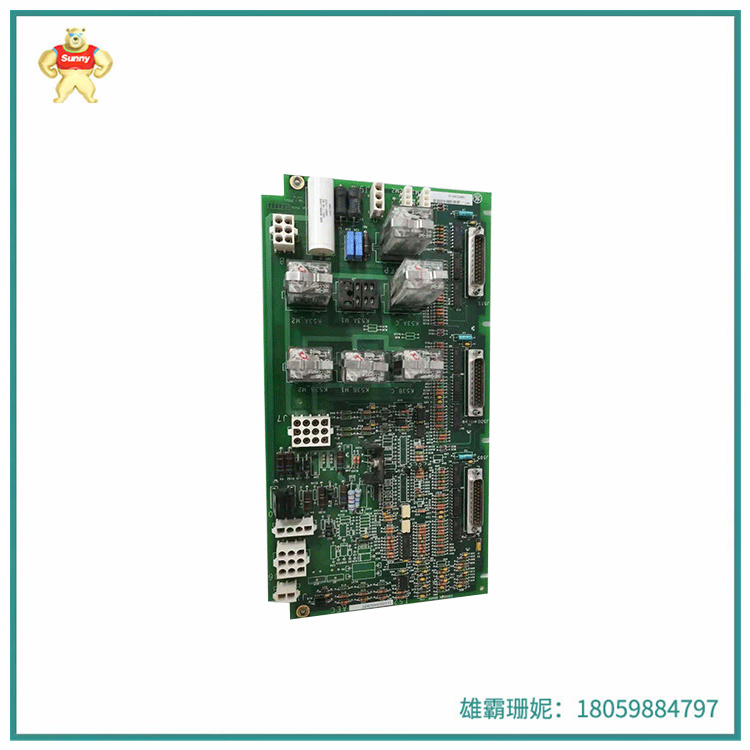

IS200EXHSG3AE是一款GE EX2100励磁电源模块。该板负责将EPDM板上的125VDC电压转换为EX2100控制系统所需的各种电压。

励磁电源型号为IS200EXHSG3AE，安装在EPBP背板上，为其他控制器提供逻辑电平电源。EPSM型号的供电方式为:EPDM输出125 VDC的电源，EPSM接收到电源后，将电压输出为5vdc、15vdc或24vdc。M1、M2和C控制器的电源位于控制柜中控制机架下方的电源模块中。

EPSM模块的电源也会被发送到外部模块。24 VDC供电给crowbar模块、EDCF、EGDM和EDEX去磁模块。ECTB和EXTB模块使用隔离的70 VDC，用于接触润湿。由于IS200EPSMG1A模块为A版本，该板不支持向后兼容。

IS200EXHSG3AE励磁电源模块有很多种类型，根据不同的应用场景和设备要求，可以选择不同的励磁电源模块。例如，有些励磁电源模块可以调节励磁电流的大小，从而控制设备的磁场强度和输出电压。有些励磁电源模块则可以控制设备的启动、停止和运行速度等。

IS200EXHSG3AE励磁电源模块通常由整流器、滤波器、控制器等部分组成。整流器将交流电转换为直流电，滤波器则用于滤除直流电中的谐波和噪声，控制器则用于调节励磁电流的大小和控制设备的运行状态。

在使用励磁电源模块时，需要注意安全问题。由于励磁电源模块会产生高压和强磁场，如果不正确使用或维护，可能会导致设备损坏或人员伤亡。因此，在使用励磁电源模块时，需要遵循相关安全规定和操作规程，确保设备的安全运行。

总的来说，IS200EXHSG3AE励磁电源模块是一种重要的电子设备，广泛应用于各种电气设备和系统中。了解励磁电源模块的基本原理、类型和用途，以及安全注意事项，对于设备的维护和使用具有重要意义。

IS200EXHSG3AE  励磁电源模块  为其他控制器提供逻辑电平电源

The IS200EXHSG3AE is a GE EX2100 excitation power module. The board is responsible for converting the 125VDC voltage on the EPDM board to the various voltages required by the EX2100 control system.

The excitation power supply model is IS200EXHSG3AE, which is installed on the EPBP backplane and provides logic level power for other controllers. The power supply mode of the EPSM model is as follows: The EPDM outputs 125 VDC power. After receiving the power supply, the EPSM outputs 5vdc, 15vdc, or 24vdc. The power supply for the M1, M2, and C controllers is located in the power module under the control rack in the control cabinet.

The power supply of the EPSM module is also sent to the external module. 24 VDC Power supplies to the crowbar module, EDCF, EGDM, and EDEX demagnetization modules. The ECTB and EXTB modules use an isolated 70 VDC for contact wetting. Because the IS200EPSMG1A module is of version A, the board does not support backward compatibility.

There are many types of IS200EXHSG3AE excitation power modules. You can select different excitation power modules according to different application scenarios and device requirements. For example, some excitation power modules can adjust the size of the excitation current to control the magnetic field strength and output voltage of the device. Some excitation power modules can control the start, stop and running speed of the device.

IS200EXHSG3AE excitation power module is usually composed of rectifier, filter, controller and other parts. The rectifier converts alternating current into direct current, the filter is used to filter out harmonics and noise in direct current, and the controller is used to adjust the size of the excitation current and control the operating state of the equipment.

Pay attention to safety when using the excitation power module. The excitation power module generates high voltage and strong magnetic fields. Improper use or maintenance may cause device damage or personal injury. Therefore, when using the excitation power module, you must comply with relevant safety regulations and operating regulations to ensure the safe running of the device.

In general, the IS200EXHSG3AE excitation power module is an important electronic device, which is widely used in various electrical equipment and systems. Understanding the basic principles, types, and uses of the excitation power module, as well as safety precautions, is important for the maintenance and use of the device.
