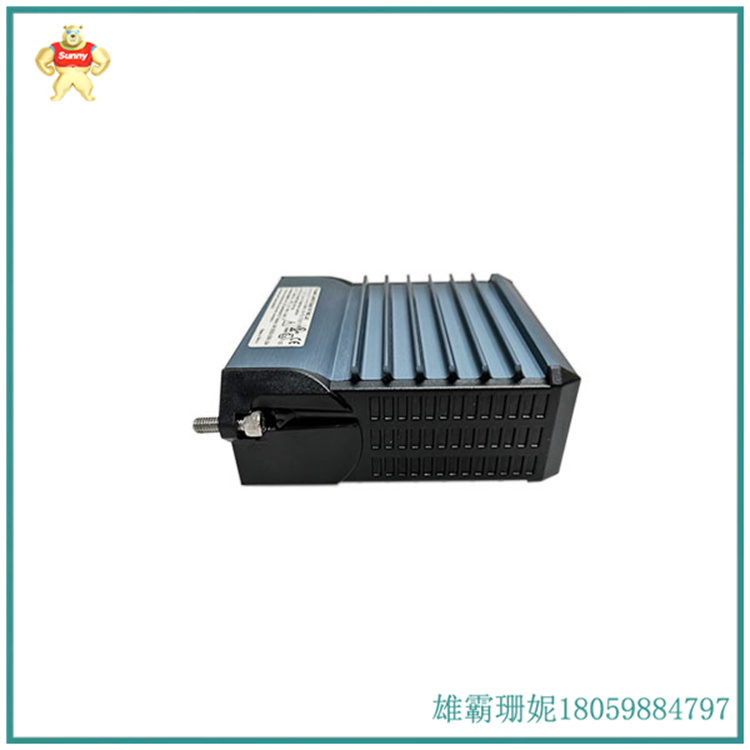

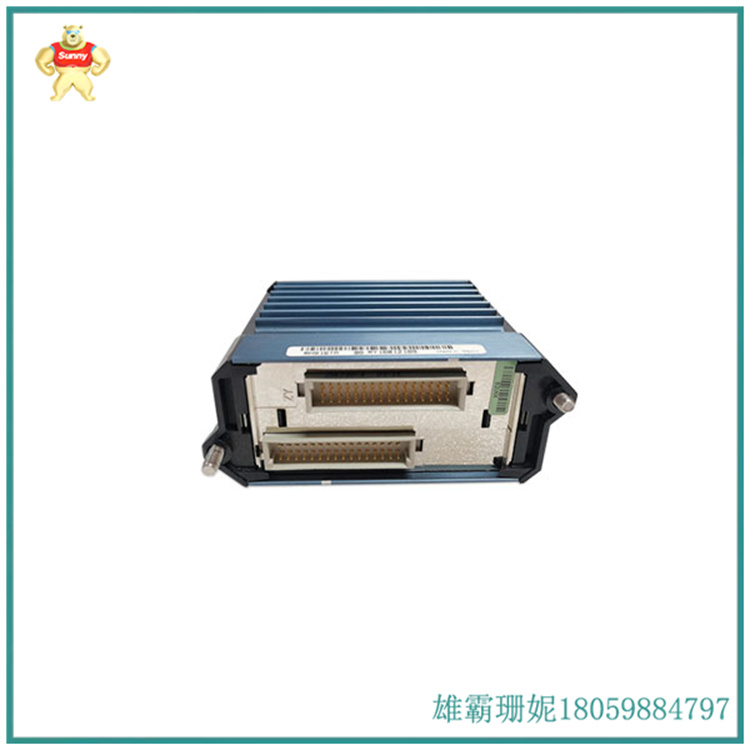

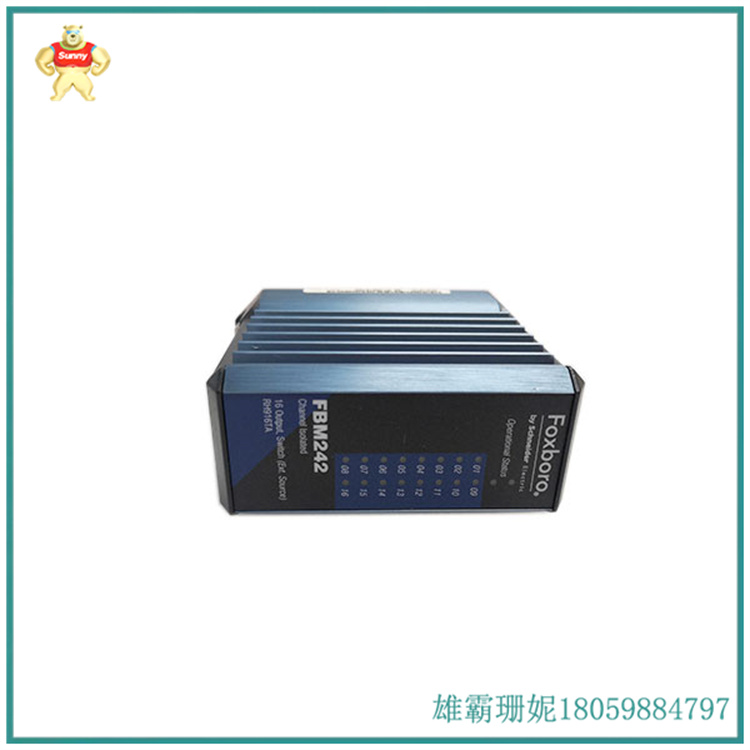

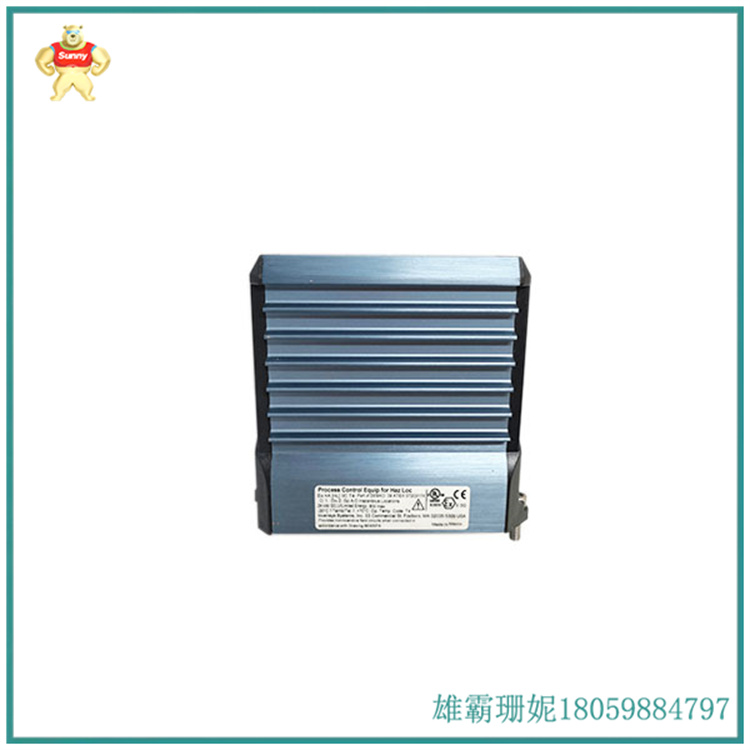

FOXBORO FBM242-RH916TA 离散输出接口模块

福克斯波罗(施耐德电气)

产品编号: FBM242

产品类型:外部源，离散输出接口模块

特点: 16通道离散输出支持15至60 V直流，120 V交流/125 V直流，240 V交流电压的离散输出信号。当与外部激励一起使用时，每个输入和输出都是电流隔离和组隔离

的。紧凑、坚固的设计，适用于G3 (恶劣)环境中的外壳。使用以下可配置选项执行分立式I/0或梯形逻辑程序输入滤波时间、故障安全配置、故障、 安全回退以及连续

或瞬时输出输入电压范围(冗余) : 24伏直流+5%，-10%

功耗(最大值) : 3伏时为24瓦直流电(最大值)散热: 6伏直流电5.24瓦(最大值)(所有输出为1.5A)

校准要求:模块和端子组件不需要校准。

温度模块: -20 至+70摄氏度(-4 至+158华氏度)聚氯乙烯端子组件: -20 至+50摄氏度(<-4 至+122华氏度)相对湿度: 5至95% (无冷凝)

尺寸(长x宽x高) : 10.4 厘米x4.5厘米x11.4厘米

量: 0.284 千克装运重量: 2千克

Foxboro (Schneider Electric)

Product number: FBM242

Product type: External source, discrete output interface module

Features: 16 channel discrete output supports discrete output signals of 15 to 60 V DC, 120 V AC/125 V DC, and 240 V AC voltage. When used in conjunction with external excitation, each input and output is current isolated and group isolated

of Compact and sturdy design, suitable for housing in G3 (harsh) environments. Use the following configurable options to execute discrete I/O or Ladder logic program input filter time, fail safe configuration, fail safe fallback, and continuous

Or instantaneous output input voltage range (redundant): 24V DC+5%, -10%

Power consumption (maximum): 24 watts DC at 3 volts (maximum) Heat dissipation: 6 volts DC 5.24 watts maximum (all outputs are 1.5A)

Calibration requirements: Modules and terminal components do not require calibration.

Temperature module: -20 to+70 degrees Celsius (-4 to+158 degrees Fahrenheit) PVC terminal assembly: -20 to+50 degrees Celsius (<-4 to+122 degrees Fahrenheit) Relative humidity: 5 to 95% (non condensing)

Dimensions (length x width x height): 10.4 cm x 4.5 cm x 11.4 cm

Quantity: 0.284 kg Shipping weight: 2 kg
