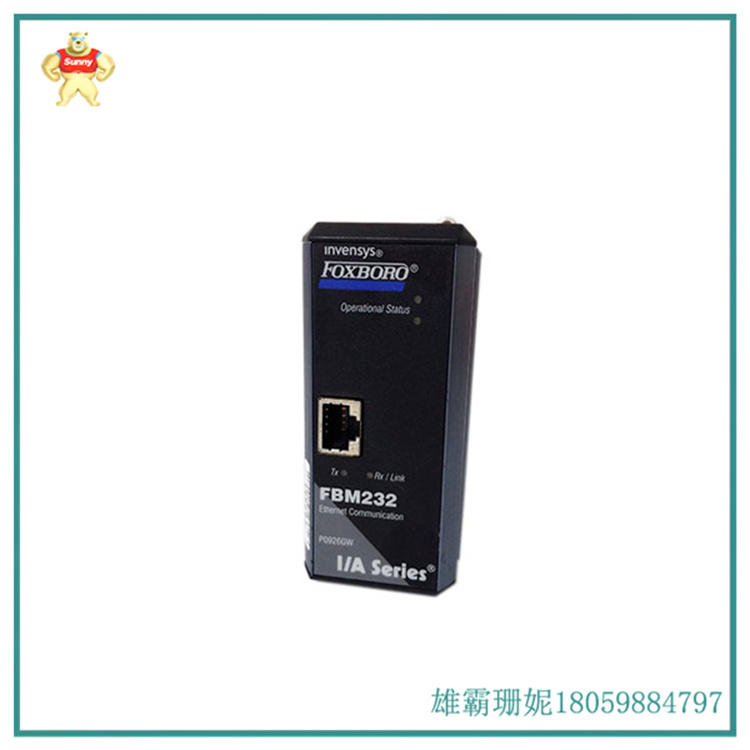

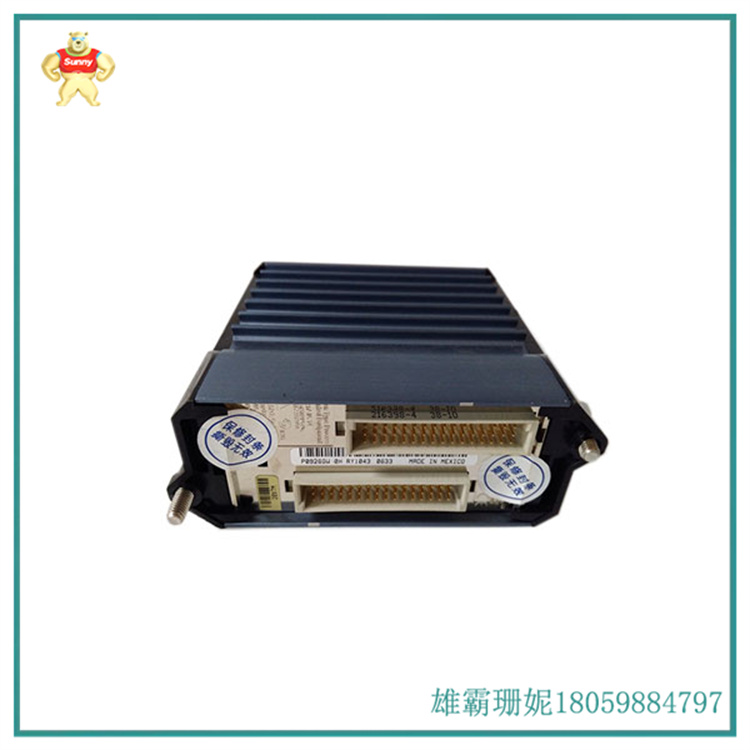

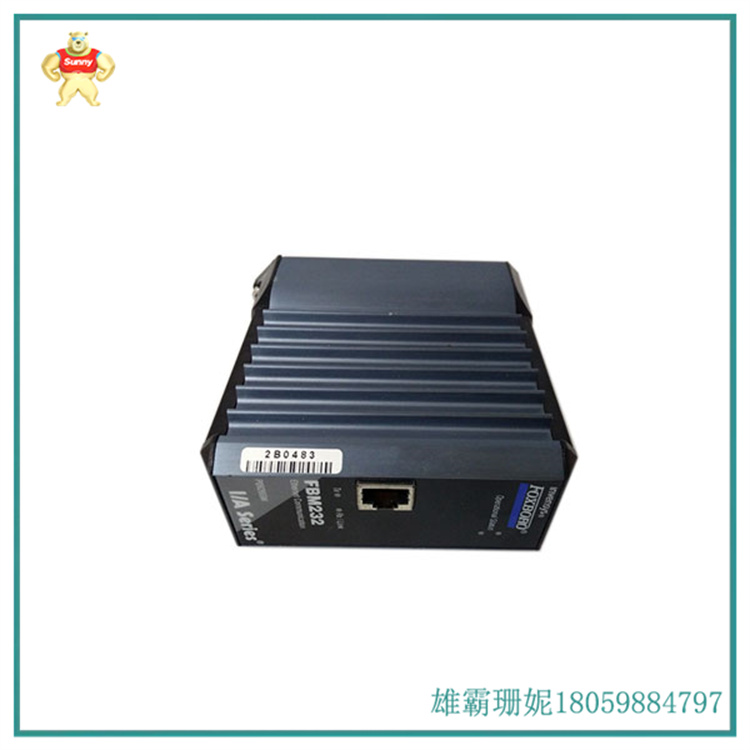

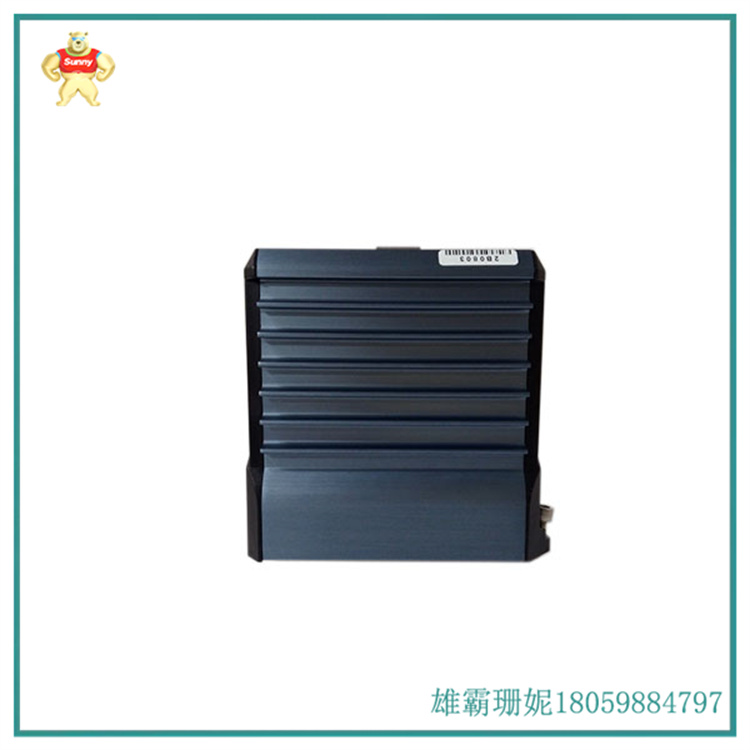

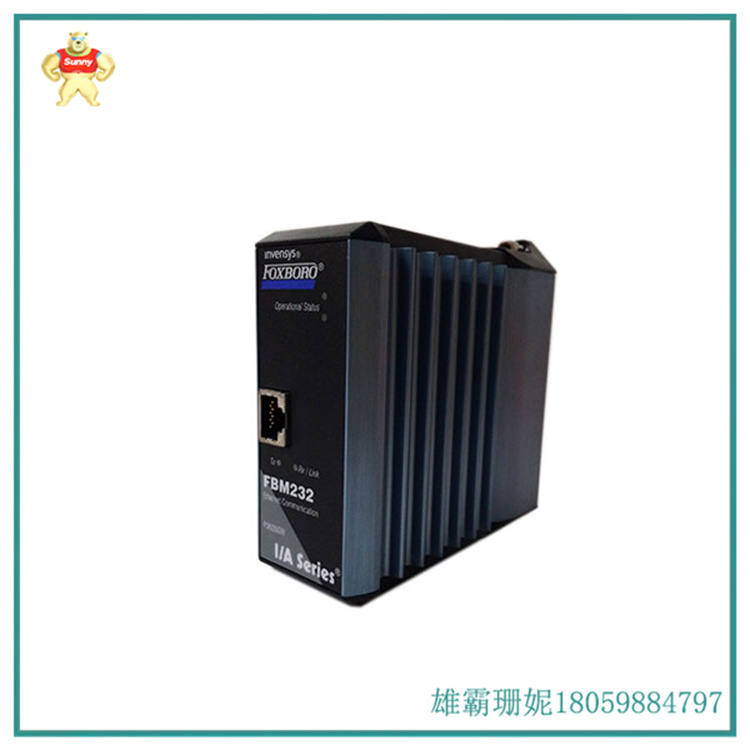

FOXBORO FBM232 现场设备系统集成器模块

这个FBM是一个通 用的以太网硬件模块可以加载哪些不同的软件驱动程序。这些驱动程序配置FBM来识别特定的设备使用的协议。几个软件驱动程序是标准的产品产品。其他自定义驱动程序可以开发以满足特定的需求。这些驱动程序被动态下载到FBM232用软件代码专门设计与第三仿设备协议的接口。的配置程序和软件对每个驱动程序的要求都是惟一的设备被集成到系统中。

FBM232与现场之间的数据通信设备均通过RJ-45连接器位于上FBM232模块的前端。的注册插孔- 45FBM232连接器可以通过集线器，或通过以太网交换机到现场设备(请参阅“以太网交换机”)使用第8页的FBM232" )设备到FBM232需要一个集线器或开关。 配置器FDSI配置器设置FBM232XML基于端口和设备配置文件。港口配置器允许轻松设置每个端口的通信参数(例如，动态主机配置协议，IP地址)。 不需要设备配置器所有设备,但.当需要它配置设备具体的和点具体的考虑(例如，扫描速率,要传输的数据地址,以吸-次传输的数据量事务)。

This FBM is a universal Ethernet hardware module that can load different software drivers. These drivers configure FBM to identify the protocols used by specific devices. Several software drivers are standard product products. Other custom drivers can be developed to meet specific needs. These drivers are dynamically downloaded to FBM232 using software code specifically designed to interface with third-party device protocols. The configuration program and software require each driver to have a unique device integrated into the system.

The data communication equipment between FBM232 and the site is located at the front end of the upper FBM232 module through an RJ-45 connector. The registered socket -45FBM232 connector can be connected through a hub, Alternatively, using FBM232 on page 8 through an Ethernet switch to the on-site device (see "Ethernet switch") requires a hub or switch to connect the device to FBM232. The configurator FDSI configurator sets FBM232XML based on port and device configuration files. The port configurator allows for easy setting of communication parameters for each port (such as dynamic host configuration protocol, IP address) . Device configurator is not required for all devices, but when it is necessary to configure device specific and point specific considerations (such as scan rate, data address to be transmitted, and transaction volume to be transmitted).
