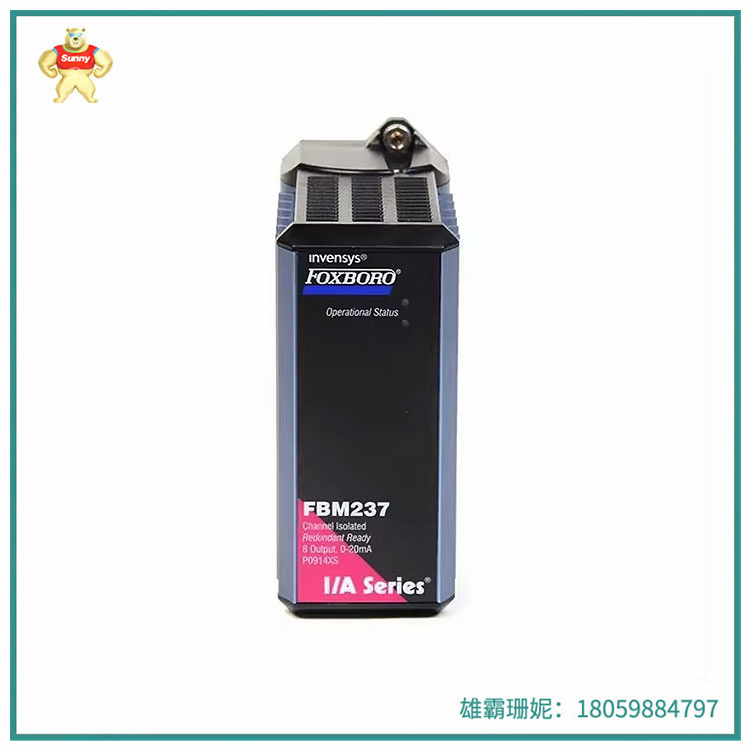

FBM237-P0914XS  输出接口模块  8个20ma直流模拟输出通道

型号：FBM237-P0914XS

紧凑型FBM237,0至20 mA输出接口模块包含8个通道隔离0至20 mA直流模拟输出通道。输出电流与其他通道和地隔离。该模块可以作为单个单元使用，也可以作为冗余对使用。

当作为冗余对使用时，FBM237-P0914XS这些模块组合在现场总线模块(FBM)级别提供冗余，现场输出信号连接到一个公共

终端组件。对中的每个模块都独立地尝试将输出保持在其指定的输出值。

．  8个20ma直流模拟输出通道

．  每个输出通道都是电隔离的。单个或冗余模块

．  紧凑，坚固的设计适用于G3(恶劣)环境的外壳。终端组件(ta)用于本地或远程将现场布线连接到

紧凑FBM237

与输出旁路站一起使用，在维修期间保持输出

操作

用于每个通道内部和/或外部环路供电发射机的3层终端组件

-与标准hart信号电气兼容

紧凑的设计

紧凑型FBM237-P0914XS的设计比标准200系列现场总线模块(fbm)更窄。它具有坚固的丙烯腈-丁二烯-苯乙烯(ABS)外部，用于物理保护电路。专门设计用于安装fbm的外壳提供各种级别的环境保护，可达到恶劣环境(G3级)，符合ISA标准S71.04。

高可靠性

模块对的冗余，加上故障的高覆盖率，提供了非常高的子系统可用时间。

冗余对中的任意一个模块都可以被替换，而不会干扰好模块的输入或输出信号。拆卸/更换模块时，不需要拆除现场设备终端线缆、电源线缆和通信线缆。

FBM237-P0914XS  输出接口模块  8个20ma直流模拟输出通道

Model: FBM237-P0914XS

The compact FBM237,0 to 20 mA output interface module contains eight channels isolating 0 to 20 mA DC analog output channels. The output current is isolated from other channels and ground. The module can be used as a single unit or as a redundant pair.

When used as a redundant pair, the FBM237-P0914XS modules are combined to provide redundancy at the field bus module (FBM) level, with the field output signal connected to a common

The terminal component. Each module in the pair independently attempts to keep the output at its specified output value.

. Eight 20ma DC analog output channels

. Each output channel is electrically isolated. Single or redundant module

. Compact, rugged design for enclosures in G3(harsh) environments. The Terminal component (ta) is used locally or remotely to connect field cabling to

Compact FBM237

Use with output bypass stations to maintain output during maintenance

Controls

3-layer terminal assembly for each channel internal and/or external loop powered transmitter

- Electrically compatible with standard hart signals

Compact design

The compact FBM237-P0914XS is designed to be narrower than the standard 200 Series Fieldbus module (fbm). It has a rugged acrylonitrile-butadiene-styrene (ABS) exterior for physical protection of the circuit. Enclosures specially designed for mounting fbm provide various levels of environmental protection up to harsh environments (G3 class), in compliance with ISA standard S71.04.

High reliability

The redundancy of module pairs, coupled with the high coverage of failures, provides a very high subsystem availability time.

Any module in the redundant pair can be replaced without interfering with the input or output signal of the good module. When removing or replacing a module, you do not need to remove onsite device terminal cables, power cables, and communication cables.
