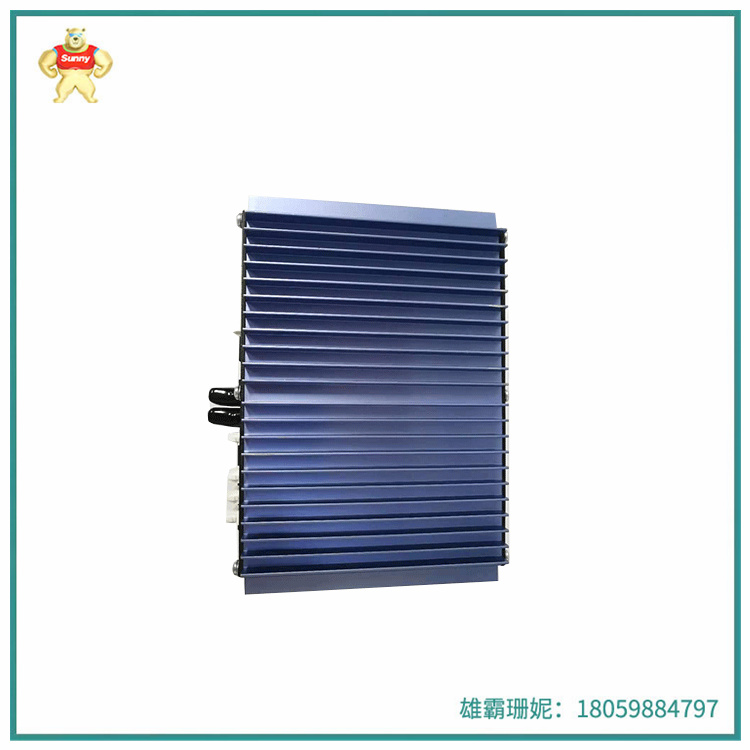

P0922YU-FPS400-24 电源模块   广泛的交流和直流输入电压范围

Foxboro TM DCS标准200系列电源提供24 V直流

标准200系列底板。FPS400-24是一款400w的电源，通过了机构认证，可用于2区和2区应用。提供两种不同的输入电压电源:

120/240 VAC或125 v DC输入(P0922YU)。24 vDC输入(P0922YC)。

这些电源是唯一经过Foxboro DcS测试和认证的电源，可与200系列现场总线模块(fbm)一起使用。

对于需要比fps400 -24功率更低和/或尺寸更小的解决方案的场所，FPS240-24和FPS120-24电源是合适的

可用。它们在200系列电源-FPS240-24和fps120 -24(PSS 41H-2FPS)中进行了讨论。

特性：

． 广泛的交流和直流输入电压范围。效率高功率因数校正-双级限流

． 过电压关闭电路。变压器隔离24v直流输出。1类，DIV 2, 2区应用。UL@，UL-C和CENELEC认证。G3等级，适用于恶劣环境

． 外部现场设备电源。对流冷却(无风扇)。垫片和密封的外壳

． 水平或垂直DIN导轨安装。支架或墙壁安装孔。继电器(形式C)状态报警输出

(1)数量

宽范围输入电压

高效率的输入电路自动接受交流或直流输入电压。120/240 VAC或125V直流输入电路(P0922YU)在47至63 Hz操作(或108至145V DC)下提供85至265 VAC范围，以满足全球功率

要求。

24V直流电源输入电路(P0922YC)接受18v DC至35v DC的范围。

效率高

密封电源效率高(P0922YU高达95%，Po922YC高达81%)，可靠性高，故障率低。基于平均电费和负荷，它们的投资回报率(ROl)不到两年。

P0922YU-FPS400-24 电源模块   广泛的交流和直流输入电压范围

Foxboro TM DCS Standard 200 Series power supply provides 24 V DC

Standard 200 series baseplate. The FPS400-24 is a 400w power supply that is agency certified for Zone 2 and Zone 2 applications. Two different input voltage power supplies are available:

120/240 VAC or 125 v DC input (P0922YU). 24 vDC input (P0922YC).

These power supplies are the only ones tested and certified by Foxboro DcS for use with the 200 Series Fieldbus Module (fbm).

For locations that require solutions with lower power and/or smaller dimensions than the fps400-24, the FPS240-24 and FPS120-24 power supplies are suitable

Available. They are discussed in the 200 series power supplies -FPS240-24 and fps120-24 (PSS 41H-2FPS).

Features:

. Wide range of AC and DC input voltages. High efficiency

Power factor correction - two-stage current limiting

. Overvoltage shuts off the circuit. Transformer isolated 24v DC output. Class 1, DIV 2, Zone 2 applications. UL@, UL-C and CENELEC certifications. G3 rated for harsh environments

. External field device power supply. Convection cooling (no fan). Gasket and sealed housing

. Horizontal or vertical DIN rail mounting. Bracket or wall mounting holes. Relay (Form C) status alarm output

(1) Quantity

Wide range of input voltage

High efficiency input circuits automatically accept AC or DC input voltages. 120/240 VAC or 125V DC input circuits (P0922YU) offer a range of 85 to 265 VAC at 47 to 63 Hz operation (or 108 to 145V DC) to meet global power

Ask.

The 24V DC power input circuit (P0922YC) accepts a range of 18v DC to 35v DC.

High efficiency

Sealed power supply efficiency is high (P0922YU up to 95%, Po922YC up to 81%), high reliability, low failure rate. Based on average electricity and load, their return on investment (ROl) is less than two years.
