HD22010-3  整流模块 将交流电转换为直流电的电子元件或设备

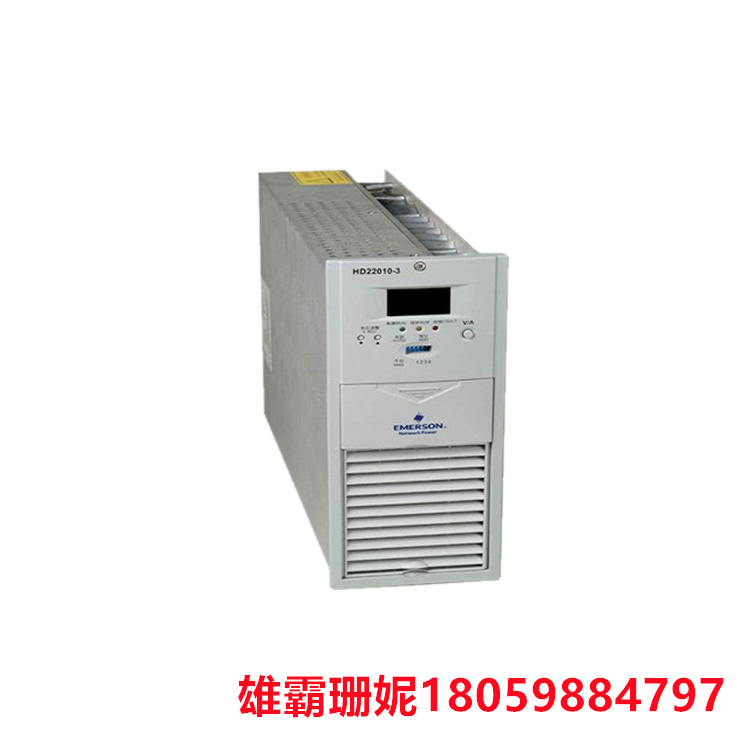

艾默生HD22010-3整流模块

HD22010-3充电模块采用自冷和风冷相结合的散热方式，在轻载时自冷运行，符合电力系统的实际运行情况。HD22010-3系列充电模块是电力电源最主要的配置模块，广泛应用于35KV到330KV的变电站电力电源中。

HD22010-3充电模块由三相无源PFC和DC/DC两个功率部分组成。在两功率部分之外还有辅助电源以及输入输出检测保护电路。

HD22010-3系列充电模块采用自冷和风冷相结合的散热方式,在轻载时自冷运行,符合电力系统的实际运行情况. 在轻载时自冷运行，符合电力系统的实际运行情况。

HD22010-3 整流模块是一种将交流电转换为直流电的电子元件或设备。它通常由二极管、晶闸管等半导体器件组成，用于将输入的交流电进行整流，使得输出的直流电更加稳定和可靠。

HD22010-3 整流模块广泛应用于各种电子设备中，例如电源适配器、充电器、电焊机、电动机驱动器等。它的主要作用是将交流电转换为直流电，以便为其他电子设备提供稳定的电源。

在整流模块中，半导体器件的作用是控制电流的流动方向，使得交流电在通过模块时被转换为直流电。整流模块的输出电压和电流大小可以根据需要进行调整，通常通过改变半导体器件的触发角度来实现。

总之，HD22010-3 整流模块是一种非常重要的电子元件，它在各种电子设备中起到了将交流电转换为直流电的关键作用。

HD22010-3  整流模块 将交流电转换为直流电的电子元件或设备

Emerson HD22010-3 rectifier module

The HD22010-3 charging module adopts the heat dissipation mode combined with self-cooling and air cooling, and runs self-cooling under light load, which is in line with the actual operation of the power system. HD22010-3 series charging module is the most important configuration module of power supply, widely used in 35KV to 330KV substation power supply.

The HD22010-3 charging module consists of two power parts: three-phase passive PFC and DC/DC. In addition to the two power parts, there is an auxiliary power supply and input and output detection protection circuit.

HD22010-3 series charging module adopts a combination of self-cooling and air cooling, self-cooling operation in light load, in line with the actual operation of the power system. Self-cooling operation under light load conforms to the actual operation of the power system.

The HD22010-3 rectifier module is an electronic component or device that converts alternating current into direct current. It is usually composed of semiconductor devices such as diodes and thyristors, which are used to rectify the input alternating current and make the output direct current more stable and reliable.

HD22010-3 rectifier module is widely used in various electronic equipment, such as power adapters, chargers, welding machines, motor drivers, etc. Its main role is to convert alternating current to direct current in order to provide a stable power supply for other electronic devices.

In the rectifier module, the role of the semiconductor device is to control the flow direction of the current, so that the alternating current is converted to direct current as it passes through the module. The output voltage and current of the rectifier module can be adjusted as needed, usually by changing the trigger Angle of the semiconductor device.

In short, the HD22010-3 rectifier module is a very important electronic component, which plays a key role in converting alternating current to direct current in various electronic devices.
