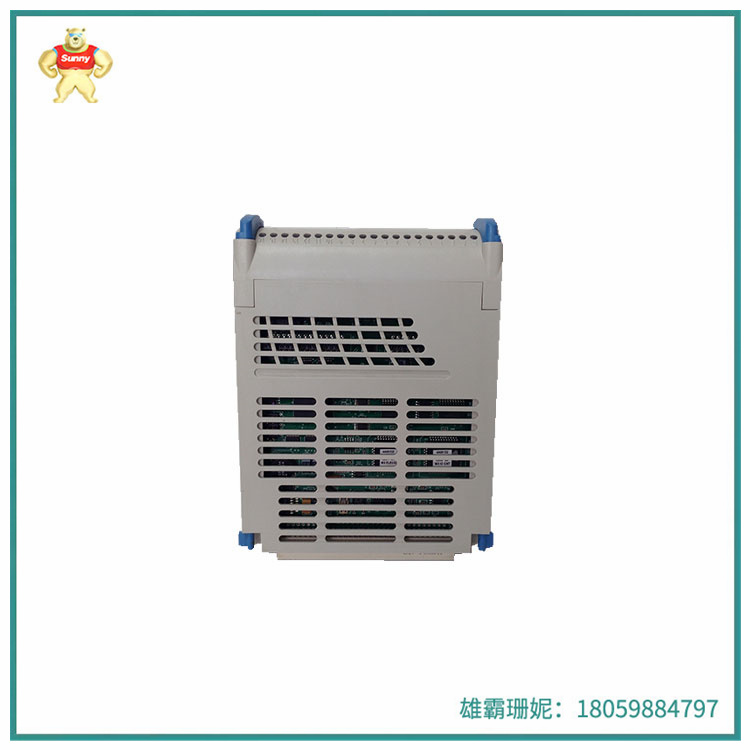

5X00357G03   输入输出模块  用于解决PLC、运动控制器数字电路输入

型号：5X00357G03

125 vdc Diff

预计运输规模

尺寸:4.8" x 2.0" x 6.5"

(12.1厘米x 5.1厘米x 16.5厘米)

重量:0磅12.0盎司(0.3公斤)

数字输入模块是用于解决PLC、运动控制器数字电路输入的模块，比如限位输入、原点输入及其它数字输入。

5X00357G03数字输入模块只支持0~24V的电平输入，高于此范围需要重新计算。模块配置有隔离的RS485接口，可单独与PC或PLC通信，也可以与多个485模块组网使用。同时模块具有开关量采集去抖动功能、信号频率计算功能、边沿计数功能。

输入输出模块的作用是控制输入输出信号。

5X00357G03输入输出模块分为数字量输入输出模块和模拟量输入输出模块。数字量输入输出模块用来连接外部的机械触点和电子数字传感器，接收如按钮、选择开关、数字拨码开关、限位开关、接近开关、光电开关及压力继电器等的开关量输入输出信号，将从现场传来的外部数字信号的电平转换为PLC内部的信号。模拟量输入输出模块用来接收热电阻、热电偶、电位器、测速发电机和各种变送器提供的连续变化的模拟量电流、电压信号。

5X00357G03   输入输出模块  用于解决PLC、运动控制器数字电路输入

Model: 5X00357G03

125 vdc Diff

Expected transport scale

Size :4.8" x 2.0" x 6.5"

(12.1 cm x 5.1 cm x 16.5 cm)

Weight :0 lb 12.0 oz (0.3 kg)

Digital input module is used to solve the PLC, motion controller digital circuit input module, such as limit input, origin input and other digital input.

The 5X00357G03 digital input module only supports level input from 0 to 24V, which needs to be recalculated. The module is configured with an isolated RS485 interface, which can communicate with a PC or PLC independently, or can be used for networking with multiple 485 modules. At the same time, the module has the function of switching data acquisition to eliminate jitter, signal frequency calculation and edge counting.

The function of the input/output module is to control the input/output signal.

5X00357G03 Input/output module is divided into digital input/output module and analog input/output module. The digital input and output module is used to connect the external mechanical contacts and electronic digital sensors, receive switching input and output signals such as buttons, select switches, digital dip switches, limit switches, proximity switches, photoelectric switches and pressure relays, etc., and convert the level of external digital signals from the scene into signals inside the PLC. Analog input/output module is used to receive the continuous change of analog current and voltage signals provided by thermal resistance, thermocouple, potentiometer, tonometer generator and various transmitters.
