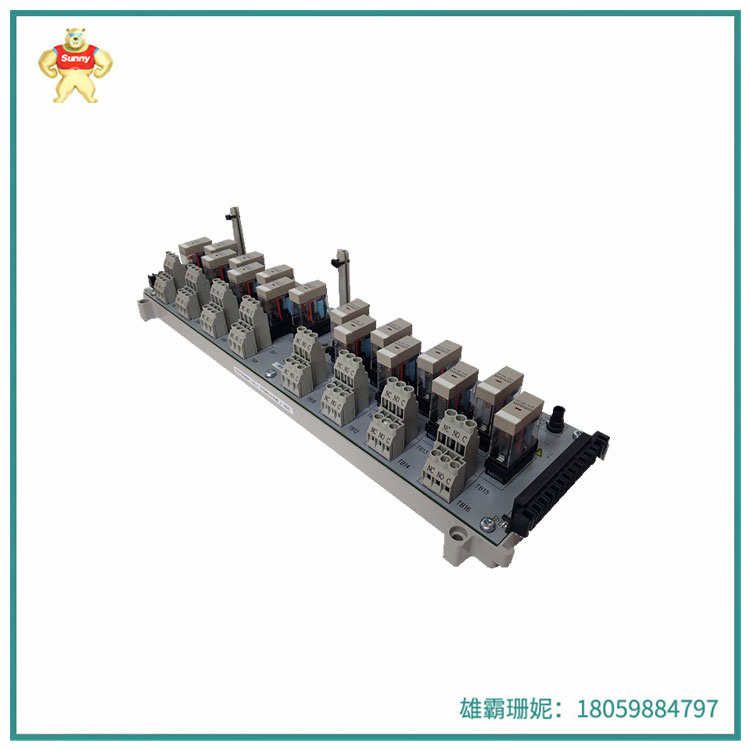

1C31223G01  继电器输出基础模块  电控制器件

产品描述

型号：1C31223G01

艾默生过程管理，西屋电气

目录描述:继电器输出基础模块

备用部件号:无

1C31223G01 继电器输出基础模块是工业自动化控制系统中常用的关键组件。继电器是一种电控制器件，当输入量的变化达到规定要求时，它能在电气输出电路中使被控量发生预定的阶跃变化。这种器件在电路中主要起到自动调节、安全保护和转换电路等作用。

在继电器输出基础模块中，多个继电器（例如4路继电器模块）可以被组合在一起，形成一个多功能的控制单元。每个继电器都可以独立控制一个或多个输出端口，实现多种复杂的控制逻辑。

1C31223G01 这类模块通常具有以下特点：

接口设计人性化：接口均可通过接线端子直接连线引出，使得连接和布线更为方便。

强大的驱动能力：采用贴片光耦隔离技术，确保模块具有稳定的性能和高驱动能力。

多种工作电压选择：模块的工作电压有多种选择，以适应不同系统的需求。

指示灯设计：包括电源指示灯和继电器状态指示灯，方便用户快速判断模块的工作状态。

固定螺栓孔：设有固定螺栓孔，方便模块的安装和固定。

继电器输出基础模块在工业自动化、控制系统、安全防护等领域有着广泛的应用。通过合理配置和使用这些模块，可以实现复杂的控制逻辑，提高系统的可靠性和效率。

请注意，1C31223G01 在选择和使用继电器输出基础模块时，需要根据具体的系统需求和控制要求来确定模块的型号、规格和参数。同时，也需要注意模块的安装、接线和调试等操作，以确保其正常运行和安全性。

Product description

Model: 1C31223G01

Emerson Process Management, Westinghouse Electric

Description: Relay output basic module

Spare component number: none

1C31223G01 Relay output base module is a key component commonly used in industrial automation control system. Relay is an electrical control device, when the change of the input quantity meets the specified requirements, it can make the controlled quantity in the electrical output circuit a predetermined step change. This device mainly plays the role of automatic regulation, safety protection and conversion circuit in the circuit.

In the relay output base module, multiple relays (e.g., 4-way relay modules) can be combined to form a multi-functional control unit. Each relay can independently control one or more output ports to achieve a variety of complex control logic.

1C31223G01 This type of module usually has the following characteristics:

Interface design humanized: the interface can be directly connected through the terminal, making the connection and wiring more convenient.

Powerful driving ability: The use of patch optocoupler isolation technology to ensure that the module has stable performance and high driving ability.

Multiple operating voltage options: The module's operating voltage has a variety of options to adapt to the needs of different systems.

Indicator design: including power indicator and relay status indicator, convenient for users to quickly judge the working status of the module.

Fixing bolt holes: fixed bolt holes are provided to facilitate the installation and fixing of the module.

Relay output basic module is widely used in industrial automation, control system, safety protection and other fields. Through rational configuration and use of these modules, the complex control logic can be realized, and the reliability and efficiency of the system can be improved.

Please note that 1C31223G01 When selecting and using the relay output base module, it is necessary to determine the model, specifications and parameters of the module according to the specific system requirements and control requirements. At the same time, it is also necessary to pay attention to the installation, wiring, and debugging of the module to ensure its normal operation and safety.
